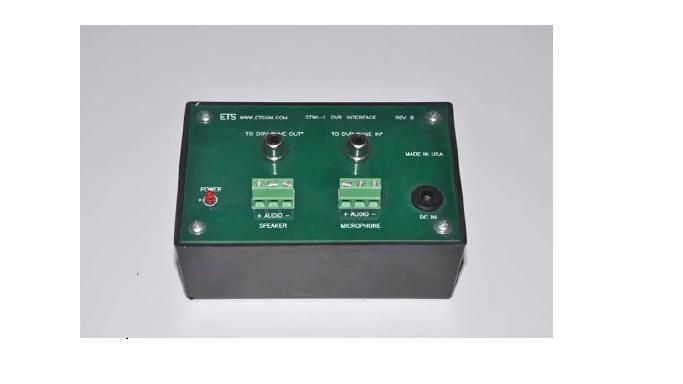

The STWI-1 is a single channel, passive (no electronics) DVR and I/P camera interface for use with standard STW1 series speaker/microphones. It provides easy termination (breakout) of field cable runs, power input, and input/output of Audio signals to 3.5mm or RCA output jacks.

Features:

• Standard RCA or 3.5mm jacks for connection to DVRs etc.
• Line level audio input/output.
• Euro-style connectors makes cable terminations fast and clean.
• Power: 12VDC @ 250mA.
• Reverse polarity protected and fused.
• Dimensions: L 4.3x W 2.7 x H 1.6.

Includes

• STWI-1 Interface adapter.
• 12 VDC 500ma AC adapter.
• 2 each 3’ RCA or 3.5mm patch cables.
• Installation instructions.

Options

• SPECIFY: RCA OR 3.5mm output connectors.
