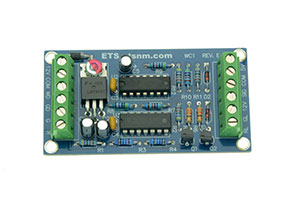

ETS - WC1 - Wiegand Converter For Cardkey L9 Reader
Part number:
WC1
Price:
- • The WC1 converts Cardkey L9 data output into the standard two-wire Wiegand format.
• Buffered reader data outputs. - • Filament warming circuits extend the life of the L9 lamps.
- • Terminal blocks for all inputs and outputs.
- • Power: 12VDC @ 10mA.
• Includes: WC1 Wiegand data converter board, Installation instructions.
| Reader Data Output | Buffered |
| Reader Lamp Protection | Filament warming circuit extends L9 reader lamp life |
| Cable Termination | Easy cable run terminations |
| Power Requirement | 12VDC @ 10mA |
| Reader Power Supply | 5V regulator for reader power |
| Power Protection | Reverse polarity protected |
| Dimensions (W x L) | 1.60" x 3.00" |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Instructions
0.1mb
File
Specs
0mb
