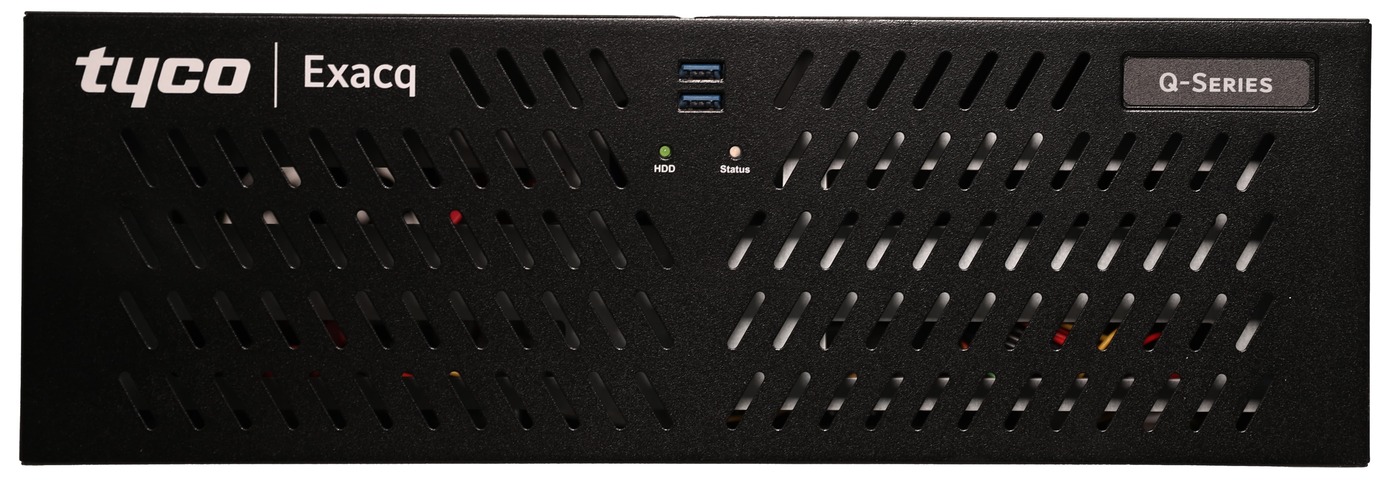

ExacqVision - 1604-04T-Q - 4TB Q-Series Hybrid Desktop Recorder with 4 IP Cameras Licenses and 16 Analog
Part number:
1604-04T-Q
Price:

Hybrid Desktop recorder with 4 IP cameras licenses (24 max) and 16 analog at 30 FPS. exacqVision Professional server, client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 22.04 on SSD, HDMI, DisplayPort, VGA (3 max simultaneous), Dual NICs, 2 multiplexed monitor outputs. Keyboard and mouse included.



Features:



Performance Meets Affordability

The exacqVision Q-Series brings together an optimal combination of performance and affordability into a single network video recording solution. The Q-Series is ideal for businesses with smaller locations searching for an uncompromising NVR and an attractive total cost of ownership.



Live Video Monitoring

With an Intel chip at its core and a full Ubuntu 18.04 desktop on a solid-state drive, this NVR and live video monitoring station features impressive local client performance. Users can watch 16 live, full HD streams simultaneously at 15 frames per second. The system also supports thousands of camera models, offering premium flexibility to architect a customized security solution.



VMS Software

Shipping with 4 free exacqVision Professional software licenses, unlimited software updates for 3 years and open camera support, the exacqVision Q-Series provides an easy-to-use, performant VMS and monitoring station from a single vendor.



Cybersecurity

The exacqVision Q-Series is NDAA compliant and is designed to be resilient against cyber threats. Tyco Exacq adheres to the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program. This holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through development, including a rapid response to meet the comprehensive and evolving cybersecurity environments.

SpecificationsQ-Series Hybrid Desktop
Maximum IP Cameras24
Maximum Analog Cameras8 or 16
Included IP Licenses4
Pre-Loaded VMS Software

Professional

Enterprise (Optional)

Include SSA3 Years
Operating System

Linux Ubuntu 22.04

Windows 10 (Optional)

RAIDNot Available
Maximum Storage12 TB
Maximum Hard Drives2
Typical Video Storage Rate150 Mbps
Local Client Display Rate (1080p)240 FPS
CPUIntel® Celeron
RAM4 GB
Operating System Drive256 GB SSD
Operating System RedundancyNot Available

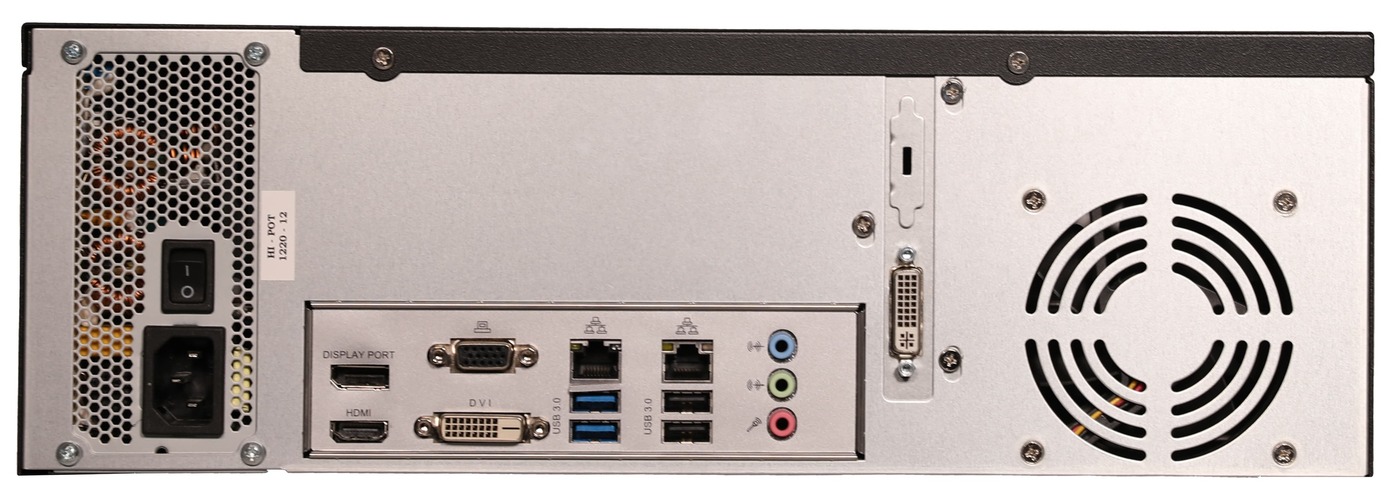

Monitor Output

HDMI, DP, VGA

3 Simultaneous

NIC1 x 2.5 Gbps, 1 x 1 Gbps
USB4x USB 2.0, 2x USB 3.0
Alarm InputsExternal USB I/O (Optional)
Alarm OutputsExternal USB I/O (Optional)
Audio Inputs8/16
Audio Outputs1
Analog Outputs1 (8-Channel), 2 (16-Channel)
DVDExternal (Optional)
AccessoriesKeyboard, Mouse
Dimensions (H x W x D)

5 x 15 x 11.75 in

12.7 x 38.1 x 29.8 cm

Weight

18 lbs

8.16 kg

Input Voltage

120/240 VAC

Auto-Sensing

Power SuppliesSingle
Power & Heat

70 Watts/240 BTU/h (Max)

45 Watts/150 BTU/h (Typical)

Operating Temperature

40°F - 95°F

4.5°C - 35°C

Warranty3 Years
