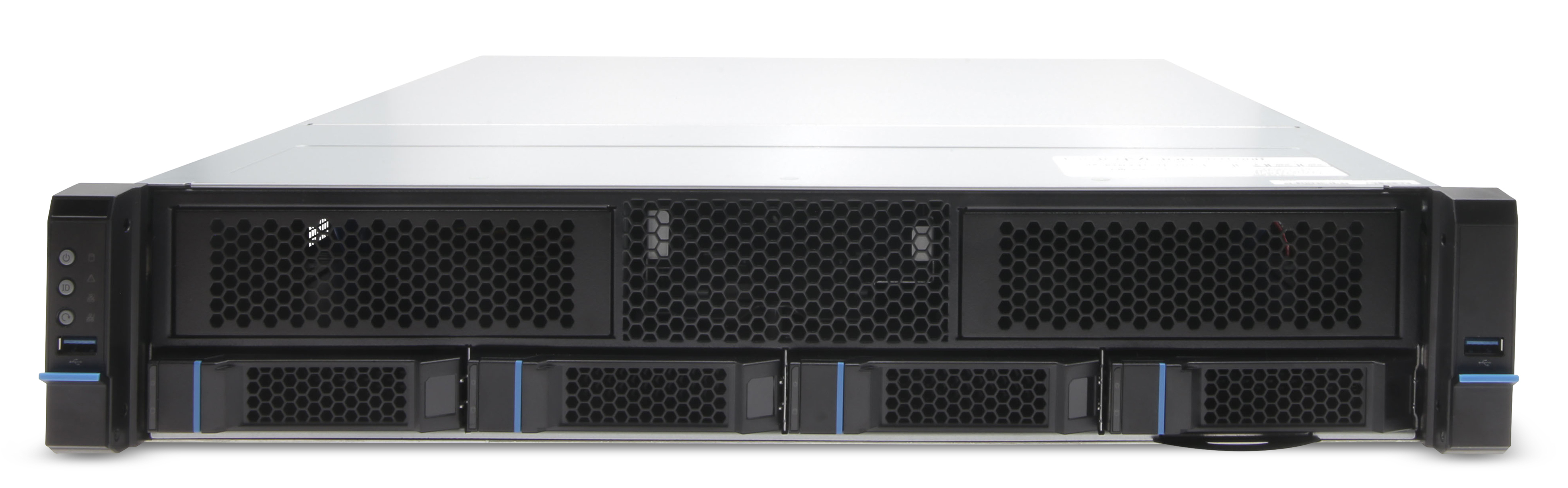

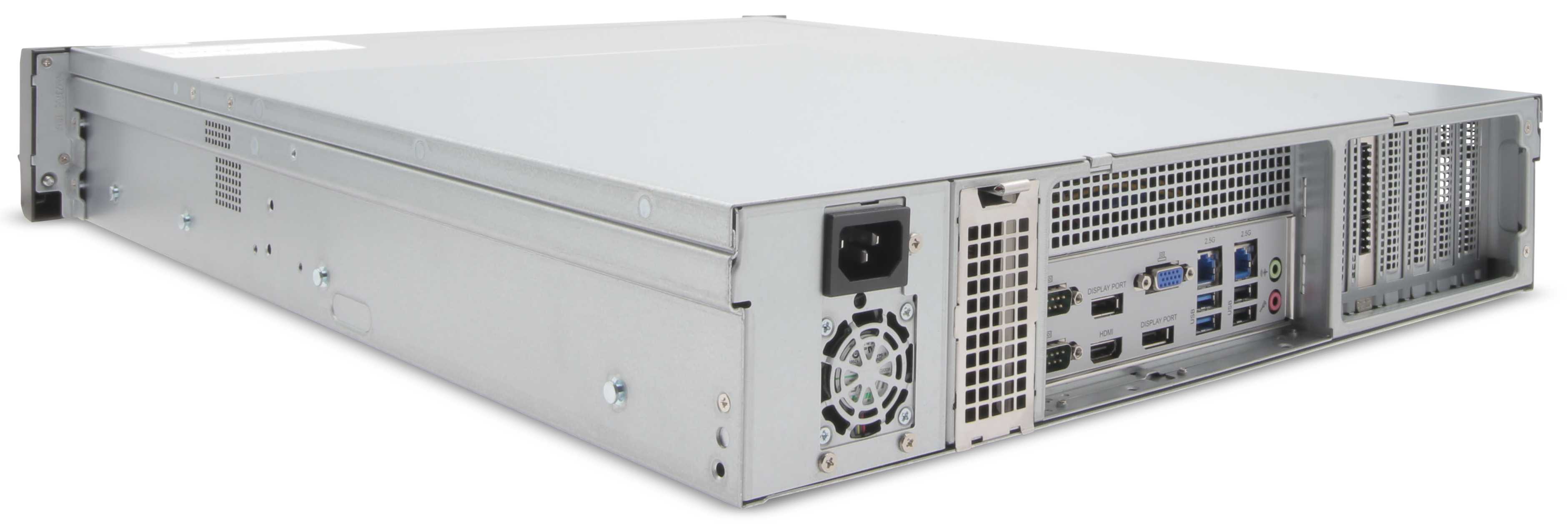

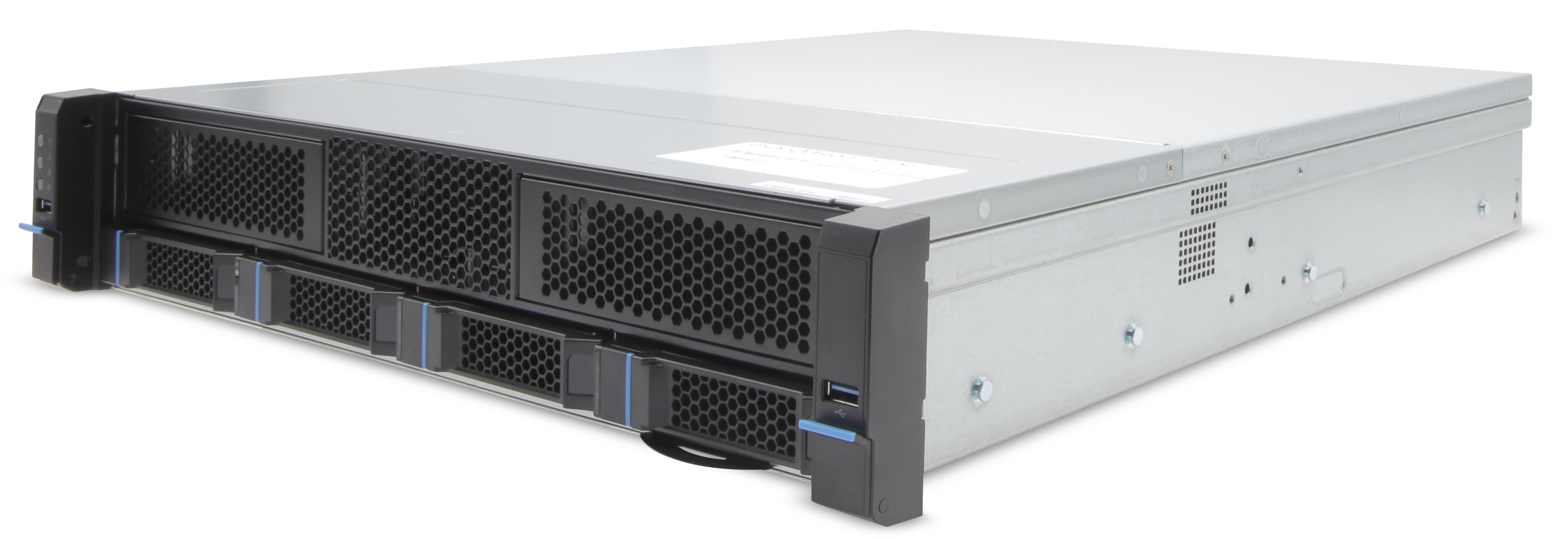

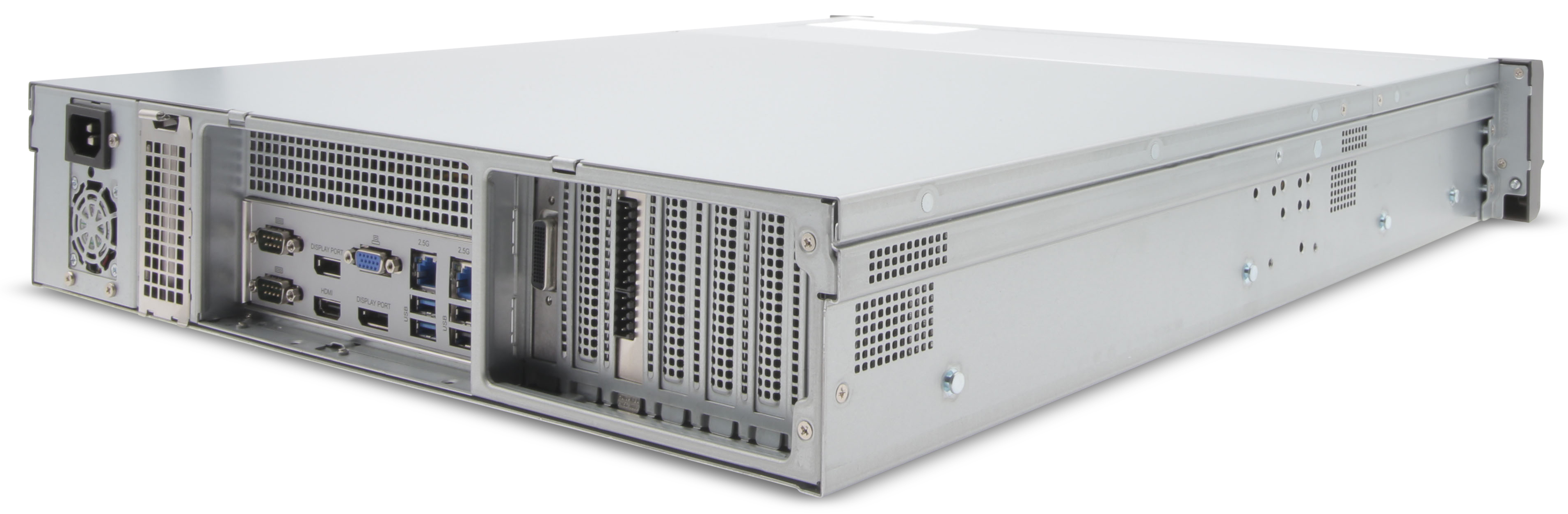

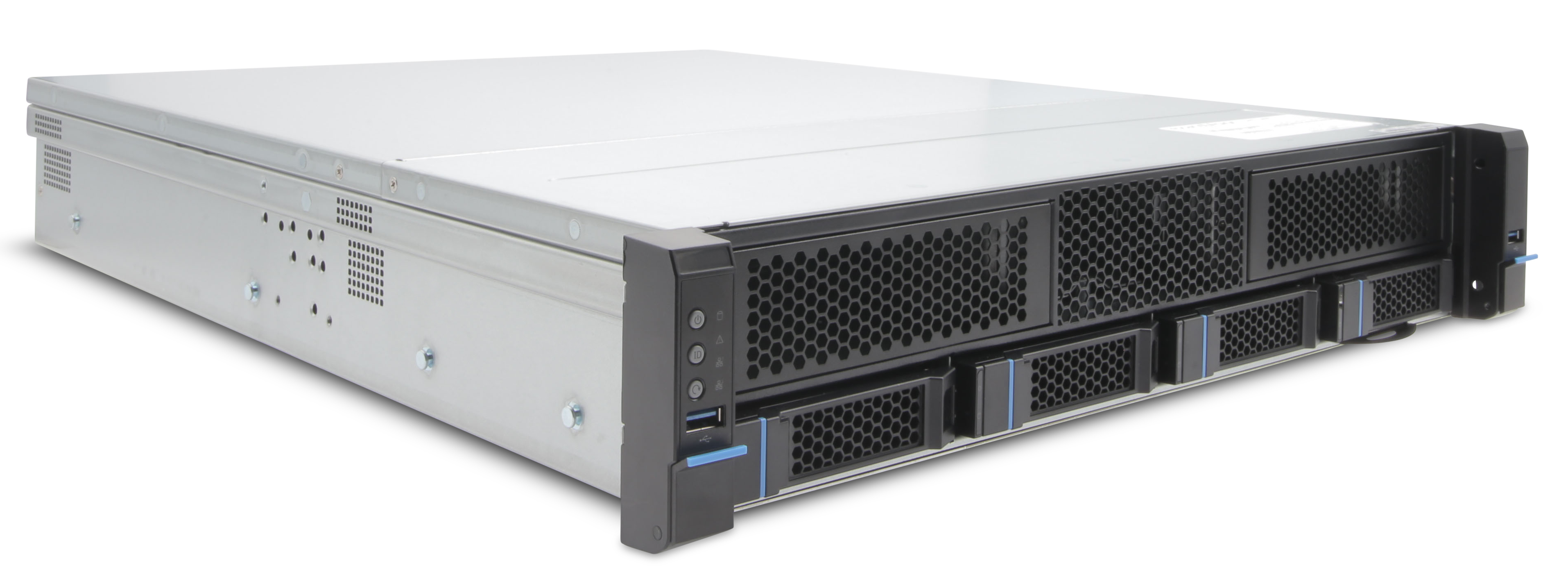

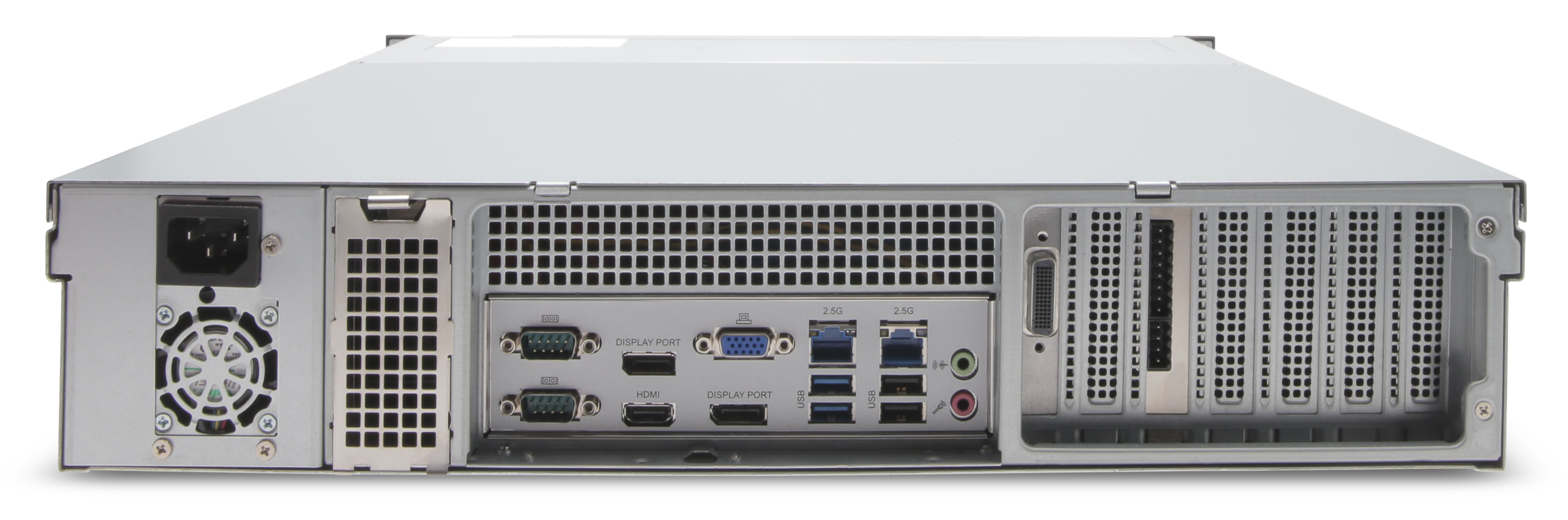

Hybrid 2U Rackmount A-Series exacqVision NVR with 8 IP Professional licenses (64 max) and 16 analog channels, 24TB Internal JBOD storage. Windows 10 IoT Ent LTSC OS on SSD, 8GB RAM, Dual 2.5GbE on-board, 4 x USB, 1 x HDMI, 2 x DP, 1 x VGA. Includes rackmount sliding rail kit, mouse and keyboard. Pre-installed exacqVision VMS software with 5 year SSA and 5 year RMA hardware warranty.

Features:

Proven Performance

• Continuously record up to 700 Mbps of video for high concentration of IP cameras
• Record up to 150 IP cameras per video server
• Stream up to 1,800 frames per second of live/recorded video to web/mobile clients
• Stream live/recorded video up to 100 simultaneous PC clients
• Optional quad network interfaces for fastest archiving or mass client performance

Designed Video Server Reliability

• Minimize system boot time and failure risk with a high reliability solid-state operating system drive, redundant OS drives optional
• Continuous duty video recording grade hard drives optimized for reduced vibration and heat
• Uninterrupted operation and video preservation in event of video drive failure via optional RAID 6 and OS drive failure via RAID 1 on SSD OS drives
• Protects against single power failure with optional redundant power supplies
• Monitors hardware health in exacqVision client and with email/text notifications

Designed Video Server Reliability

• Kantech EntraPass Corporate Edition access control system pre-licensed on exacqVision Windows A-Series NVRs
• Easily scales from controlling a few doors to thousands of doors and managing thousands of cards at multiple locations
• Add an unlimited number of cardholders with up to 5 cards each
• Improve response time to critical alarms and events by monitoring and controlling doors from exacqVision while viewing associated cameras
• See more about exacqVision Kantech-Onboard Integration

Capacity for Mainstream Recording

• Includes 8 IP camera licenses
• Compatible with thousands of IP camera models from leading manufacturers like Illustra, Axis, Arecont and more
• Store up to 240TB of video
• Compatible with all exacqVision video recorders and video management software for maximum scalability

Video Management System (VMS) Software

• Pre-configured with exacqVision Professional VMS software (standard)
  • EasyConnect – automatically finds, addresses and connects IP cameras
  • Two-way audio
  • Powerful integration with retail, financial and access control systems
  • Conduct investigations on recorded video, audio and data with thumbnail or timeline search
  • Bookmark important video for long-term retention
  • Video multi-streaming to optimize storage utilization and network traffic

• View video anywhere (standard)
  • Unlimited Windows/Linux/Mac PC clients
  • Live and recorded video from any browser
  • Live and recorded video from most tablets and smartphones

• Upgrade to exacqVision Enterprise VMS software (optional)
  • VideoPush to remotely control video wall clients
  • Case management to organize critical evidence
  • Active Directory / LDAP for IT administration of users
  • Easy, single-screen administration of cameras, users, storage and notifications

Hosted Certified Software Applications (CSA)

• Install CSAs such as video analytics, access control software, and point-of-sale software on recorder
• Save money and rack space with single video security server for retail security or other physical security applications

5-Year Warranty and Software Subscription Agreement (SSA)

• Constantly increase VMS features with regular software updates
• 5 years of unlimited software updates included
• 5 years of system warranty
• Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States
