ExacqVision - 1608-24T-R2AL-E - 24TB A-Series Hybrid 2U Recorder Enterprise Linux With 8 IP Cameras Licenses and 16 Analog

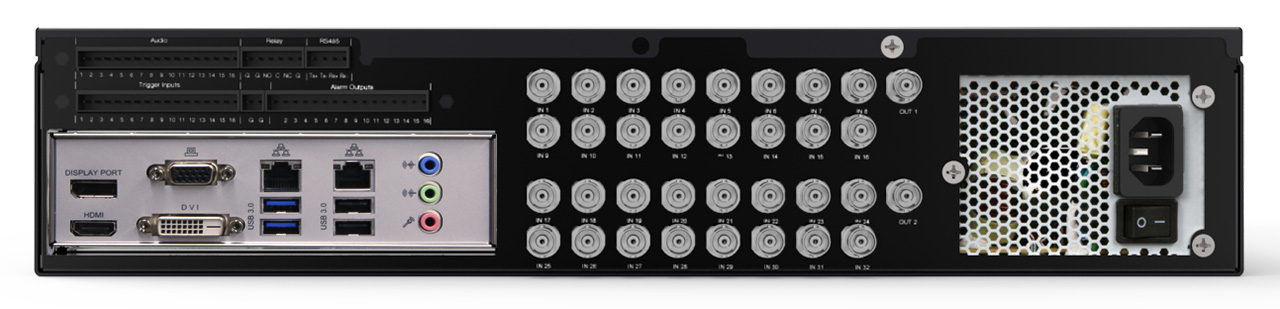

Hybrid 2U recorder with 8 IP cameras licenses (64 max) and 16 analog at 30 FPS (16 looping included). exacqVision Enterprise server, client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 20.04 on SSD. HDMI, DisplayPort, VGA (3 max simultaneous), Dual NICs, 2 multiplexed monitor outputs, RS-485 serial port, 16 alarm inputs, 16 alarm outputs, 16 audio inputs. Keyboard and mouse included.

Features:

All-in-One Hybrid Server and IP Camera Server Solutions

• Record IP cameras, encoders and analog security cameras
• Available in hybrid servers and IP camera network video recorder (NVR) models
• View live and recorded video through free exacqVision client application

Proven Performance

• Continuously record up to 550 Mbps of video for high concentration of high definition analog and IP cameras
• Stream up to 1,800 frames per second of live/recorded video to web/mobile clients
• Stream live/recorded video up to 100 simultaneous PC clients
• Optional quad network interfaces for fastest archiving or mass client performance

Designed Video Server Reliability

• Minimize system boot time and failure risk with a high reliability solid-state operating system drive
• Continuous duty video recording grade hard drives optimized for reduced vibration and heat
• Uninterrupted operation and video preservation in event of video drive failure via optional RAID 5 and OS drive failure via RAID 1
• Protects against single power failure with optional 4U redundant power supplies
• Monitors hardware health in exacqVision client and with email/text notifications

Capacity for Mainstream Recording

• Record up to 64 IP cameras and 64 analog cameras per video server
• Includes 4 or 8 IP camera licenses
• Compatible with thousands of IP camera models from leading manufacturers like Illustra, Axis, Arecont and more
• Store up to 80TB of video
• Expandable to over 1.6PB with S-Series networked storage
• Compatible with all exacqVision video recorders and video management software for maximum scalability

Video Management System (VMS) Software:

• Pre-configured with exacqVision Professional VMS software (standard)
  • EasyConnect – automatically finds, addresses and connects IP cameras
  • Two-way audio
  • Powerful integration with retail, financial and access control systems
  • Conduct investigations on recorded video, audio and data with thumbnail or timeline search
  • Bookmark important video for long-term retention
  • Video multi-streaming to optimize storage utilization and network traffic

• View video anywhere (standard)
  • Unlimited Windows/Linux/Mac PC clients
  • Live and recorded video from any browser
  • Live and recorded video from most tablets and smartphones

• Upgrade to exacqVision Enterprise VMS software (optional)
  • VideoPush to remotely control video wall clients
  • Case management to organize critical evidence
  • Active Directory / LDAP for IT administration of users
  • Easy, single-screen administration of cameras, users, storage and notifications

Hosted Certified Software Applications (CSA)

• Install CSAs such as video analytics, access control software, and point-of-sale software on recorder
• Save money and rack space with single video security server for retail security or other physical security applications
• Tested by Exacq to ensure compatibility

3-Year Warranty and Software Subscription Agreement (SSA)

• Constantly increase VMS features with regular software updates
• 3 years of unlimited software updates included
• 3 years of system warranty
• Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States
