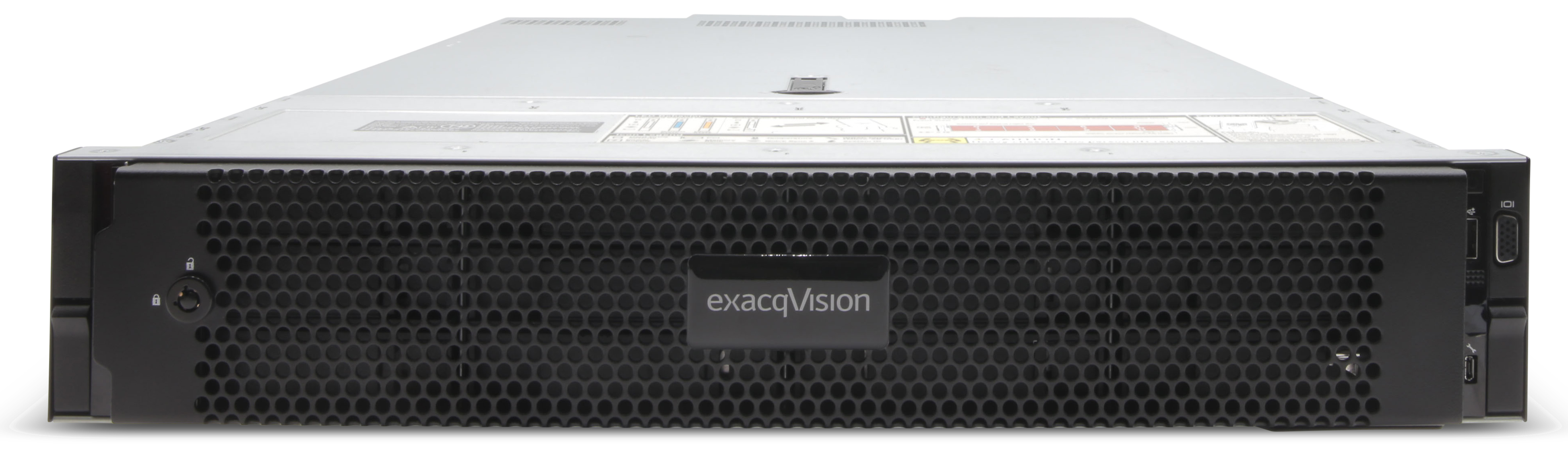

ExacqVision - 250-16T-R2EMW - Rackmount 2U Enterprise Management Server
Part number:
Price:
- • 8TB Internal Storage (Configured in RAID 1 for high availability)
- • 2U Rackmount Chassis with Single Power Supply
- • Windows 11 OS (Pre-installed on Dual SSD RAID 1 boot drives)
- • 8GB RAM (Optimized for managing up to 250 servers)
- • Intel i3 Processor (Current standard for this tier)
- • Dual 2.5GbE on-board NICs for high-bandwidth network management
- • Quad Monitor Support: 1 x HDMI, 2 x DisplayPort, and 1 x VGA
- • Included accessories: Rackmount sliding rail kit, USB Mouse, and Keyboard
- • 5-Year Warranty (Includes Hardware and Software Subscription Agreement)
| Server | |
| Maximum Instances of exacqVision Enterprise VMS Supported | 250 |
| Pre-Loaded Software | exacqVision Enterprise Manager |
| Maximum Hard Drives | 4 |
| Form Factor | 2U Rackmount |
| Operating System | Windows 11 LTSC Linux Ubuntu 24.04 |
| CPU | Intel i3 (i7 upgrade option) |
| RAM | 8GB (+8GB upgrade option, 16GB total) |
| NIC | 2 x 2.5Gbps (10Gbps upgrade option) |
| Ports | Front: 2 USB 3.1 Rear: 2 USB 3.2, 2 USB 2.0, 2 Serial, 2 DP, 1 HDMI, 1 VGA, 2 3.5mm Mic-In/Line-Out/Line-In |
| Embedded Management | N/A |
| General | |
| Dimensions (D x W x H) | D: 584.2 mm (23 in) W: 482.6 mm (19 in) H: 88.9 mm (3.5 in) |
| Power | 150W (max) 100-240vac (SPSU) |
| Cooling | (2) Internal Fans |
| Operating Temperature | 40°F - 95°F (4.5°C - 35°C) |
| Weight | 14.06 kg (31 lbs) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15; ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) NDAA / TAA |
| Warranty | 5-Year Warranty (Keep your HDDs) |
