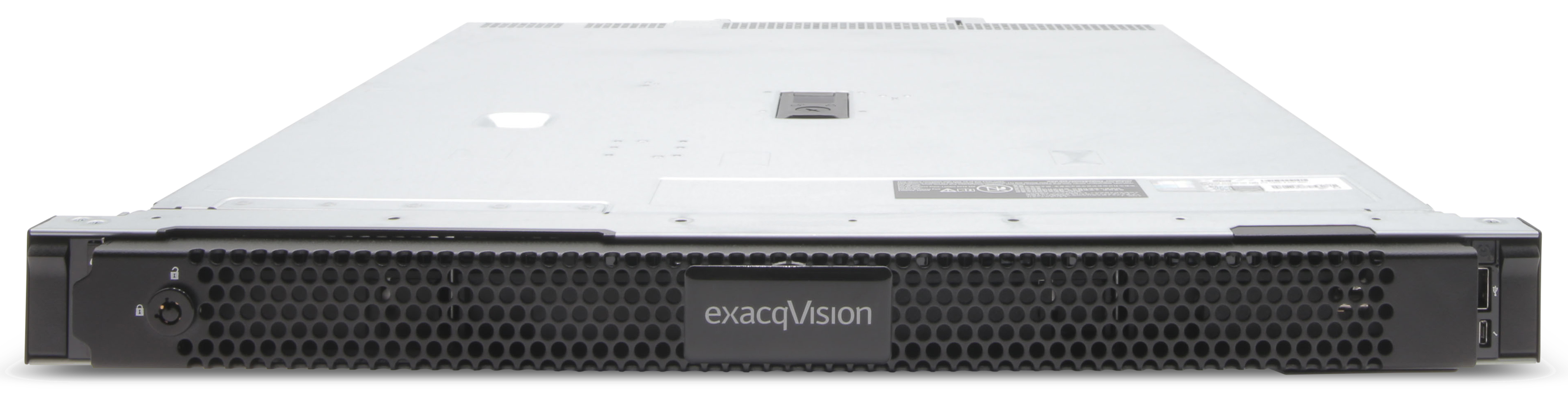

ExacqVision - 2K-08T-R1EML - Rackmount 1U Enterprise Management Server
Part number:
Price:
- • Support for up to 2,000 servers and 160,000 incoming events per minute
- • 1U Rackmount Chassis with Dual Redundant Power Supplies
- • Linux Ubuntu 22.04 LTS OS (Pre-installed on Dual SSD RAID 1 boot drives)
- • 32GB RAM (Maximum configuration for high-scale server/user management)
- • Intel Xeon W Processor (Server-grade CPU for enterprise workloads)
- • Advanced Networking: Dual 1GbE on-board + Dual 10GbE RJ45 NICs
- • iDRAC9 Enterprise: Full remote hardware management and out-of-band monitoring
- • Included accessories: Rackmount sliding rail kit
- • 5-Year Warranty: Next Business Day (NBD) on-site hardware repair
| Server | |
| Maximum Instances of exacqVision Enterprise VMS Supported | 2,000 |
| Pre-Loaded Software | exacqVision Enterprise Manager |
| Maximum Hard Drives | 4 |
| Form Factor | 1U Rackmount |
| Operating System | Windows Server 2022 Linux Ubuntu 24.04 |
| CPU | Intel Xeon |
| RAM | 32GB |
| NIC | 2 x 1Gbps, 2 x 10Gbps (RJ45) |
| Ports | Front: 1 x Micro-AB USB, 1 x USB 2.0 Rear: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| General | |
| Dimensions (D x W x H) | D: 598.94 mm (23.58 in) with bezel W: 482 mm (18.98 in) H: 42.8 mm (1.69 in) |
| Power | 600W (max) 100-240vac (RPSU) |
| Cooling | (4) Internal Fans |
| Operating Temperature | 40°F - 95°F (4.5°C - 35°C) |
| Weight | 24.33 kg (53 lbs) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15; ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) NDAA / TAA |
| Warranty | 5-Year NBD (Keep your HDDs) |
Name
Description
Size
Downloads
File
A&E Specifications
0mb
File
Specsheet
1.8mb
File
Brochure
0.4mb
