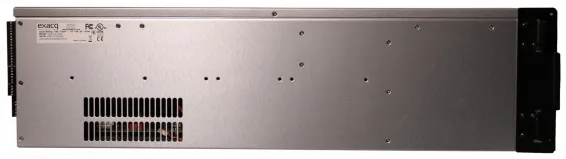

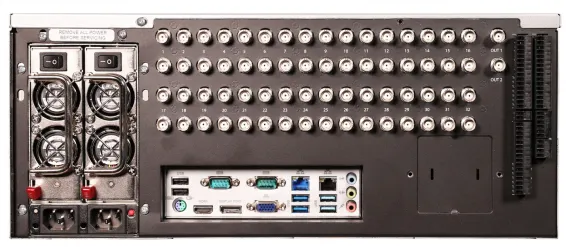

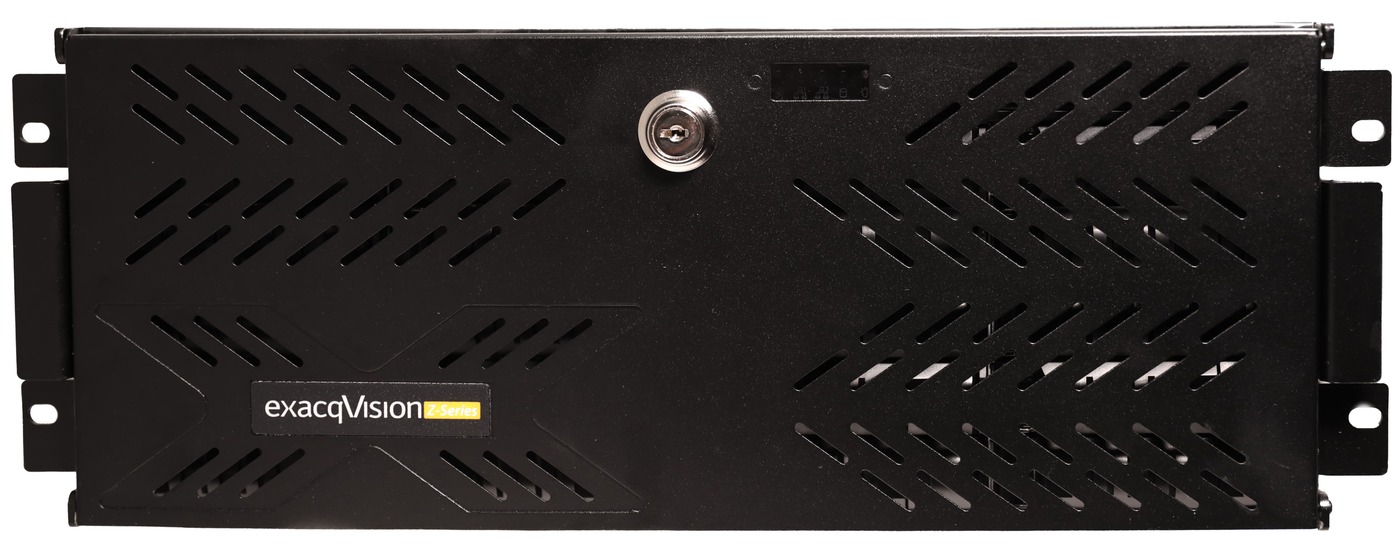

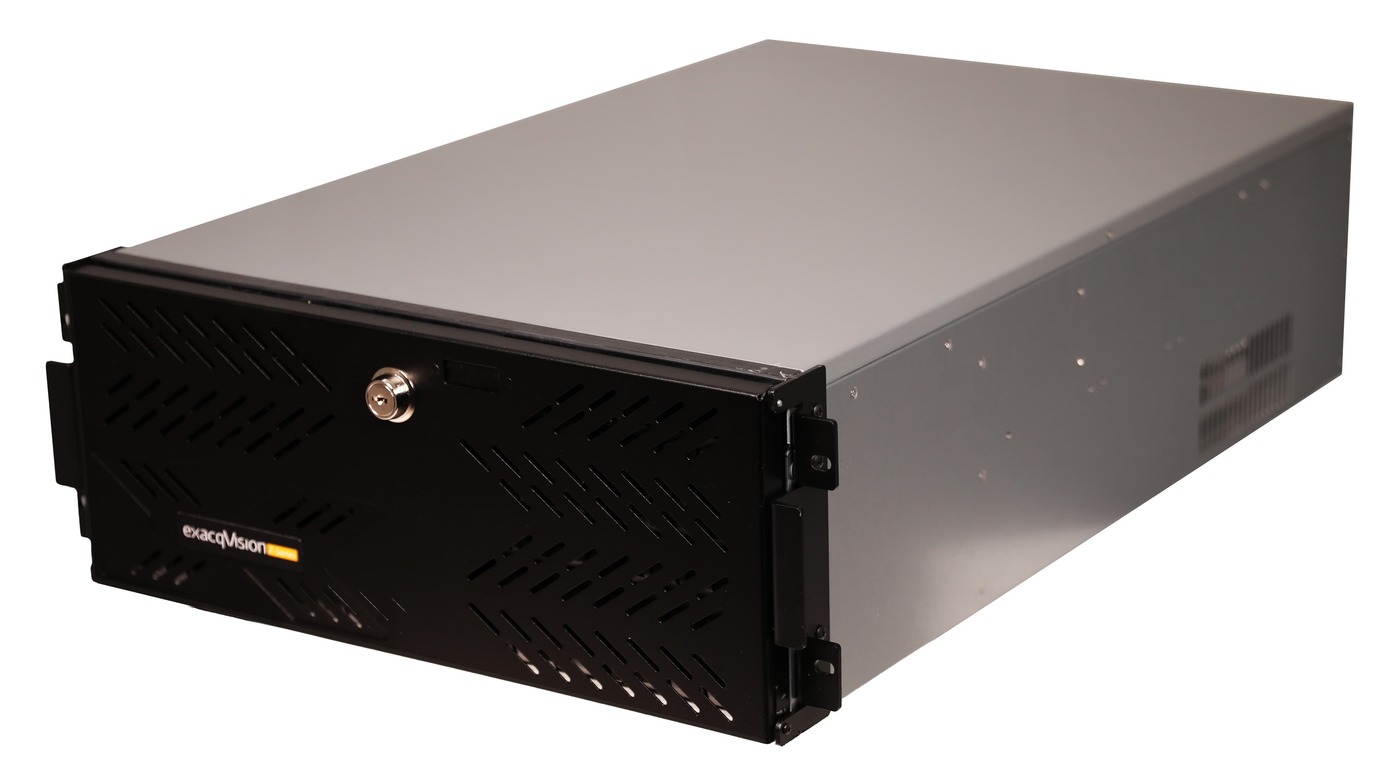

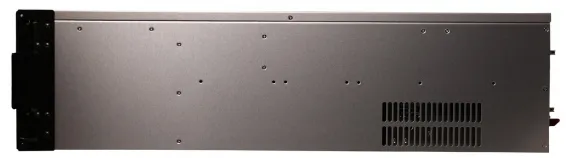

Rackmount 4U with 8 IP licenses, 32 channel analog inputs (32 looping included), RS-485 serial port, 16 alarm inputs, 16 alarm outputs, 4 audio inputs, dual NICs, HDMI, VGA, DisplayPort (3 max. simultaneous), RAID 6, Win10 on SSD, redundant power supplies, keyboard and mouse, exacqVision Enterprise client and server software pre-installed, 3 year warranty and 5 year software updates.

Features:

High Performance Network Video Recorders

• Continuously record up to 1,200 Mbps of video for high concentration of HD cameras
• Support many simultaneous video to web/mobile clients with 1800 frames per second video
• Simultaneously connect up to 500 remote clients
• Optional dual 10 Gbps network interfaces for fastest archiving or mass client performance

High Reliability Network Video Recorders

• Continuously record during single power source failure with dual power supplies
• Enterprise-class, continuous-duty hard drives
• Hot spare drive options for automatic replacement of failed drive
• Uninterrupted operation and video preservation in event of one or two drive failures via RAID 5 or RAID 6
• Solid state drive (SSD) for Linux or Windows operating system. Optional RAID 1 protected dual SSDs
• Monitors hardware health in exacqVision client and with email/text notifications
• ESM Failover feature protects against system failures (requires ESM and hardware)

High Capacity Network Video Recorders

• Record up to 128 IP cameras and 64 analog cameras
• Includes 8 IP camera licenses
• Compatible with Thousands of IP camera models
• Store up to 240TB with front accessible storage
• Expandable to over 1.6PB with S-Series networked storage
• Compatible with all exacqVision network recorders and VMS software for maximum scalability

VMS Software:

• Pre-configured with exacqVision Professional VMS software (standard)

  • EasyConnect − automatically finds, addresses and connects IP cameras
  • Two-way audio
  • Powerful integration with retail security, financial and access control systems
  • Conduct investigations on recorded video, audio and data with thumbnail or timeline search
  • Bookmark important video for long-term retention
  • Video multi-streaming to optimize storage utilization and network traffic



• View video anywhere (standard)

  • Unlimited Windows/Linux/Mac PC clients
  • Live and recorded video from any browser
  • Live and recorded video from most tablets and smartphones



• Upgrade to exacqVision Enterprise software (optional)

  • VideoPush to remotely control video wall clients
  • Case Management to organize critical evidence
  • Active Directory / LDAP for IT administration of users
  • Easy, single-screen administration of cameras, users, storage and notifications



• Enterprise System Manager (optional)
  • Maximize uptime with health monitoring

Host Certified Software Applications (CSA)

• Ability to host CSAs such as video analytic or point-of-sale interfaces on the servers
• Tested by Exacq for reliable operation
• Save money on hardware and support costs and rack space by loading multiple applications on one server

3-Year Warranty and 5-Year Software Subscription Agreement (SSA)

• Constantly increase VMS software features with included regular software updates
• 5 years of unlimited software updates included
• 3 years of system warranty
• Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States
