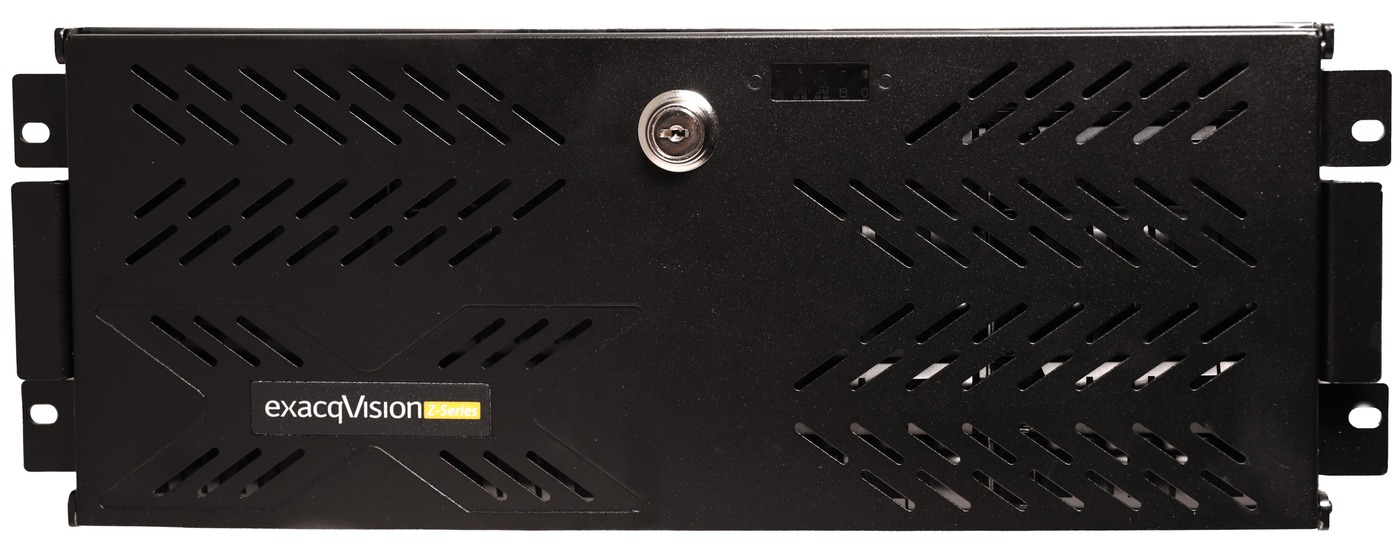

ExacqVision - 3208-48T-R4Z - 48TB Rackmount 4U with 8 IP licenses
Part number:
3208-48T-R4Z
Price:

48TB Rackmount 4U with 8 IP licenses


Features:


  • Continuously records up to 1,200 Mbps of video for high concentration of HD cameras
  • Supports many simultaneous video to web/mobile clients with 1,800 FPS video
  • Simultaneously connect up to 500 remote clients
  • Optional dual 10Gbps network interfaces for fast archiving or mass client performance
  • Continuously record during single power source failure with dual power supplies
  • Enterprise-class, continuous-duty hard drives
  • Uniterrupted operation and video preservation in event of one or two drive failures
  • Hot spare drive options for automatic replacement of failed drive
  • Solid-state drive for Linux or Windows operating system
  • Monitors hardware health in exacqVision client and with email/text notifications
  • Up to 128 IP cameras (8 licenses included)/64 analog cameras per recorder
  • Compatible with thousands of IP camera models
  • Store up to 80TB with front-accessible storage
  • Expandable to over 1.6PB with exacqVision S-Series networked storage
  • Compatible with all exacqVision recorders and software for maximum scalability
  • Install CSAs such as video analytics, access control and POS software on the recorder
  • Tested by Exacq to ensure compatibility
  • Save money and rack space with single security server
  • Includes a 3-year hardware warranty and technical support from one source
  • Constantly increasing VMS functionality with 3 years of unlimited software updates
Specifications Z-Series Hybrid 2U Z-Series Hybrid 4U
Maximum IP Cameras 16 or 32 16, 32, or 64
Included IP Licenses 8 8
Pre-Loaded VMS Software Professional
Enterprise
Professional
Enterprise
Include SSA 5 Years 5 Years
Operating System Windows 10
Linux Ubuntu 22.04
Windows Server 2022 (Optional)
Windows 10
Linux Ubuntu 22.04
Windows Server 2022 (Optional)
RAID RAID 5 RAID 6
Maximum Storage 144 TB 360 TB
Maximum Hard Drives 8 20
Maximum Video Storage Rate(Dependent on HDD & Network configuration) 800 Mbps (Windows)
900 Mbps (Linux)
1200 Mbps (Windows)
1900 Mbps (Linux)
Local Client Display Rate (1080p) 375 FPS (Windows)
720 FPS (Linux)
375 FPS (Windows)
720 FPS (Linux)
CPU Intel Core i7
Intel Xeon (Optional)
Intel Core i7
Intel Xeon (Optional)
RAM 16 GB
32 GB (Optional)
16 GB
32 GB (Optional)
Operating System Drive 256 GB SSD 256 GB SSD
Operating System Redundancy RAID 1 (Optional) RAID 1 (Optional)
Monitor Output DisplayPort, HDMI, VGA
3 Simultaneous
DisplayPort, HDMI, VGA
3 Simultaneous
NIC 1 x 2.5 Gbps, 1 x 1 Gbps
3 x 1 Gbps, 1 x 2.5 Gbps (Optional)
2 x 10 Gbps SPF+, 1 x 2.5 Gbps, 1 x 1 Gbps (Optional)
1 x 2.5 Gbps, 1 x 1 Gbps
3 x 1 Gbps, 1 x 2.5 Gbps (Optional)
2 x 10 Gbps SPF+, 1 x 2.5 Gbps, 1 x 1 Gbps (Optional)
USB 2 x USB 3.2, 4 x USB 3.1, 2 x USB 2.0 2 x USB 3.2, 4 x USB 3.1, 2 x USB 2.0
Alarm Inputs 16 TTL
External USB I/O (Optional)
16 TTL
External USB I/O (Optional)
Alarm Outputs 15 TTL & 1 relay
External USB I/O (Optional)
15 TTL & 1 relay
External USB I/O (Optional)
Audio Inputs 16 16
Audio Outputs 4 4
Analog Outputs 1 (16-Channel), 2 (32-Channel) 1 (16-Channel), 2 (32-Channel), 4 (64-Channel)
DVD External (Optional) Internal or External (Optional)
Dimensions (H x W x D) 3.5 x 17 x 24 in
8.9 x 43.18 x 60.96 cm
7.0 x 16.875 x 27 in
17.8 x 42.9 x 68.6 cm
Weight 34 - 50 lbs
15.4 - 22.7 kg
49 - 90 lbs
22.3 - 40.9 kg
Input Voltage 120/240 VAC
auto-sensing
120/240 VAC
auto-sensing
Power Supplies Redundant Redundant
Power & Heat 240 Watts/790 BTU/h (Max)
120 Watts/425 BTU/h (Typical)
320 Watts/1095 BTU/h (Max)
210 Watts/700 BTU/h (Typical)
Operating Temperature 40° - 95°F
4.5° - 35°C
40° - 95°F
4.5° - 35°C
Warranty 3 Years 3 Years
