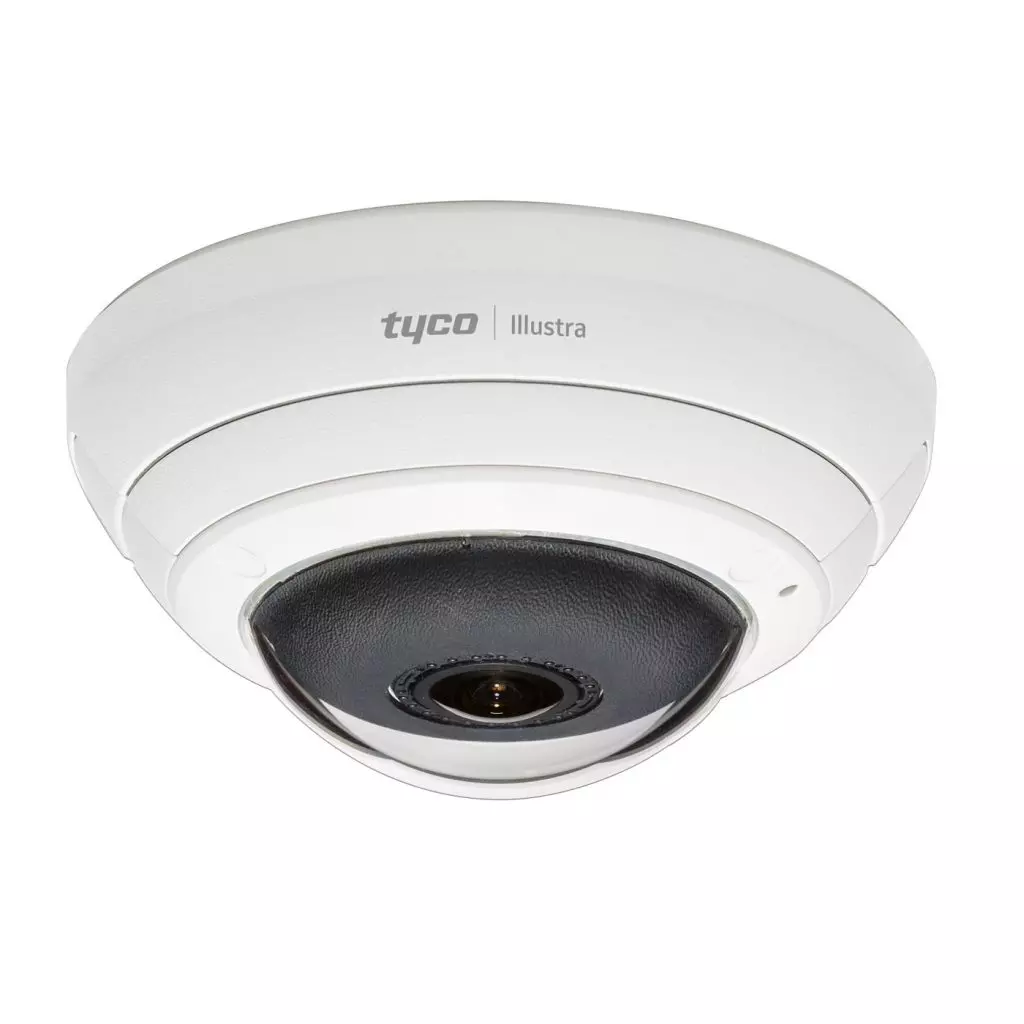

ExacqVision - ADCi825LT-F311 - Illustra Pro Fisheye LT, 5MP, Indoor, Vandal Resistant
Part number:
ADCi825LT-F311
Price:

The sleek, discreet design of the Illustra Pro 5MP Fisheye LT allows it to blend into any environment for inconspicuous surveillance. Ideal for applications such as retail stores, expansive indoor parking areas, casinos, building lobbies, elevators, corridor intersections, and university lecture halls, the 5MP Fisheye LT enhances situational awareness with a 360° bird’s eye view from the ceiling. When used with most Video Management Systems, the 360-degree image can be dewarped by the client to provide multiple panoramic or rectilinear views for both live and recorded scenes.



Features :

  • 5MP sensor for high-quality images
  • Two independent 360-degree fisheye streams provided
  • Available in vandal and non-vandal resistant models
  • Wide Dynamic Range creates a balanced scene in challenging lighting condition
  • ONVIF 2.4 Profile S for seamless integrations
  • As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera FeaturesPro 5MP Fisheye LT
Corridor ModeN/A
Environment RatingIndoor
Horizontal FOV183°
Housing ColorWhite
Imager1/2.5˝ 5MP CMOS
Lens TypeFixed
Onboard StorageYes, Micro SDHC up to 32GB
ONVIF CompliantYes, ONVIF 2.4 Profile S
Power InputPoE 802.3af Class 3, 7.5W
Resolution Options5MP

Stream 1: 1936x1936

Stream 2: 736x736; 640x640; 320x320; 176x176
Vandal-ResistantIK10
