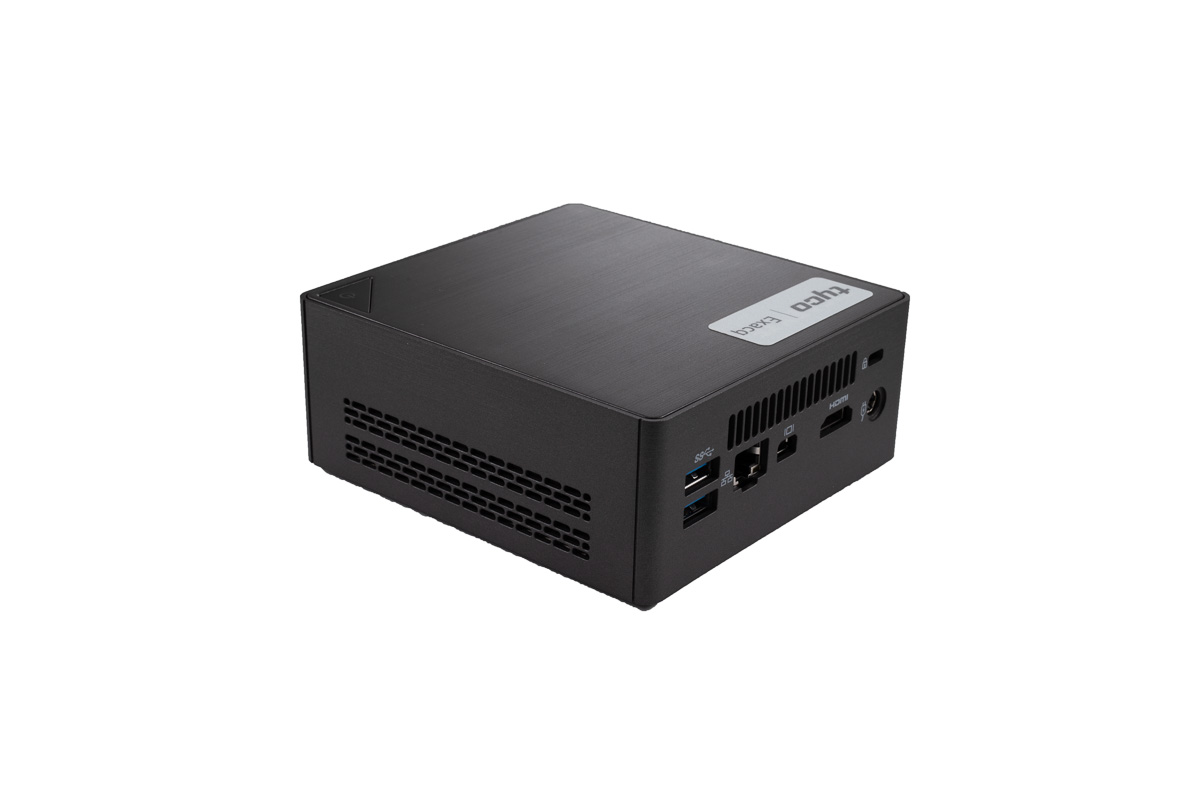

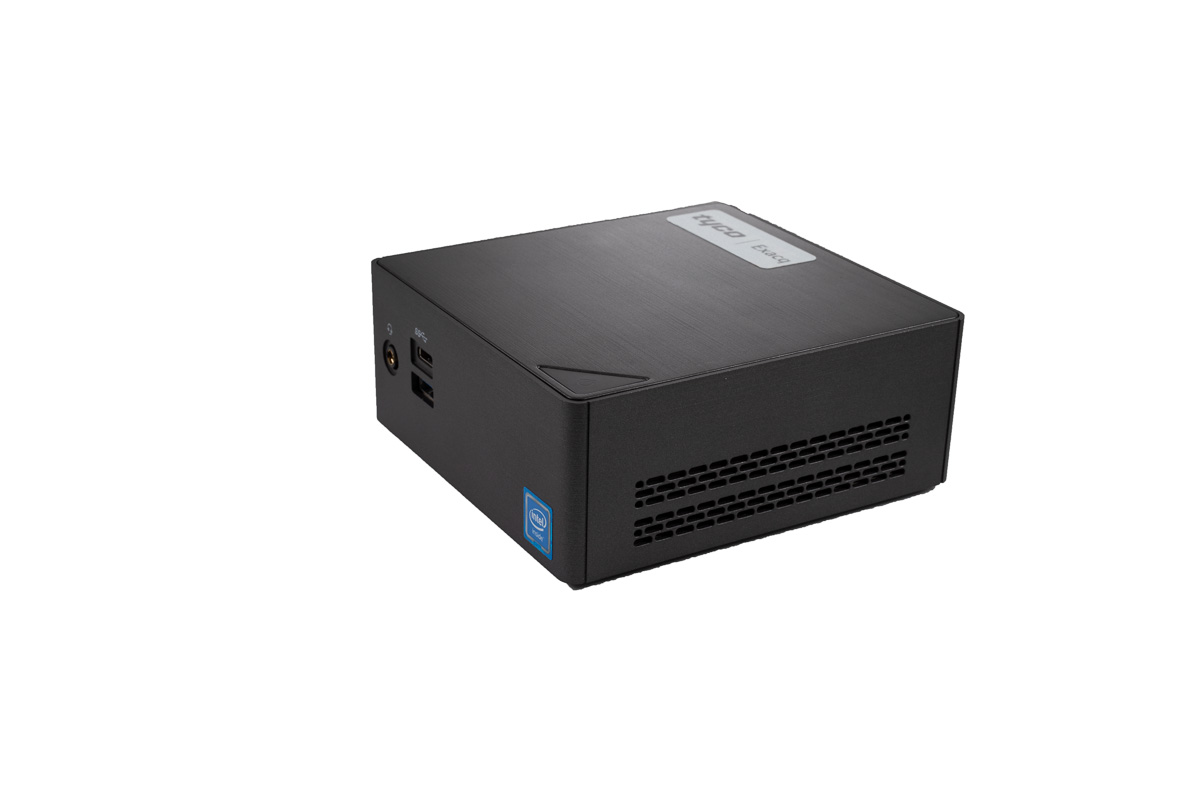

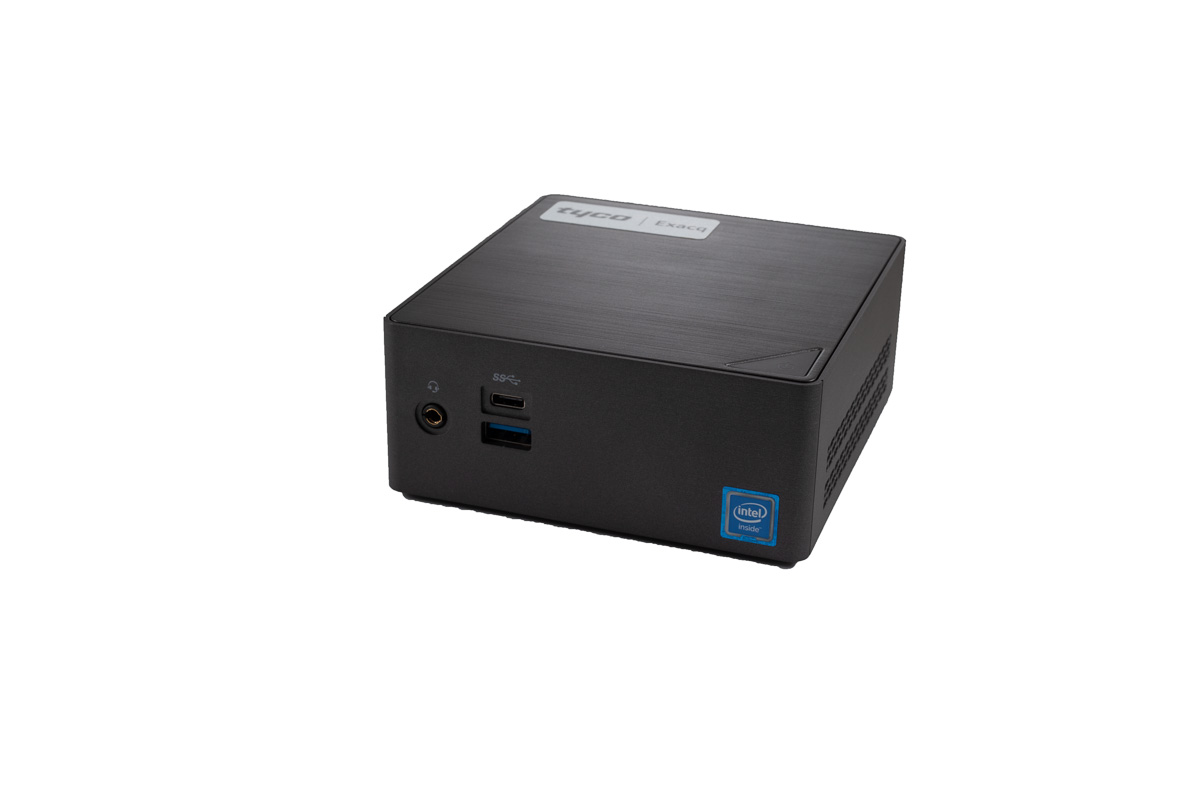

Live monitoring station running exacqVision Client. Supports 16 Full HD streams, each at 15fps. Ubuntu Linux 22.04 on SSD, Gb NIC, Wifi, HDMI, mini-DP - max 1 monitor recommended. Mouse and VESA mount bracket included, with on-screen keyboard installed. 3 years hardware warranty.
Features:
Take the Guesswork out of Live Video Monitoring
exacqVision C-Series monitoring stations are ideal for viewing and monitoring video via the exacqVision Client. Built to achieve specific decode and display frame rates to meet the demands of the video security industry, the C-Series takes the guesswork out of sourcing a monitoring system to support multiple video streams.
Seamlessly Integrate with exacqVision Hardware
A seamless complement for exacqVision hardware, C-Series monitoring stations bring consistency to an existing exacqVision hardware ecosystem and are the perfect solution to accompany a new one. The C-Series is tailor-made for experiencing the powerful, intuitive features of exacqVision VMS.
Designed for Optimal Performance and Flexible Installation
The C-Series Standard, Pro, and Pro Plus are available with a Windows 10 or Ubuntu Linux 18.04 operating system. The system supports 16-32 video streams at full HD, ensuring smooth playback during live monitoring or search. Easily placed on the back of a display monitor and VESA-mountable, these machines are simple to install and perfect for environments with limited space.
Streamlined Support from a Single Vendor
Purchasing an NVR and video monitoring station from a single vendor streamlines the purchase, installation, and support experience. C-Series monitoring stations ship with a 3-year warranty that comes standard with all exacqVision hardware purchases.
Safeguard Against Cyber Attacks Across Devices
exacqVision C-Series Video Monitoring Stations have been designed to be resilient against cyber-threats. Our C-Series products are gated, analyzed, tested, and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program for every consecutive release. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.
Specifications | C-Series Standard |
Number of video streams supported* (1080p) | 16 |
Local Client Display Rate (1080p) | 240 FPS (Linux) |
Monitor Output | HDMI, mini-DP1 monitor recommended |
Form Factor | SFF (Small Form Factor) |
Operating System | Linux Ubuntu 22.04 |
CPU | Intel Celeron |
Memory | 4 GB |
Network | 1 x 1 Gbps |
SSD Storage | 128 GB |
HDD Storage | None |
USB Ports | 1 x USB Type C, 3 x USB 3.0 |
Dimensions (H x W x D) | 4.7 x 4.43 x 1.84 in 11.9 x 11.3 x 4.8 cm |
Weight | 3 lbs 1.36 kg |
Power Supply | Single |
