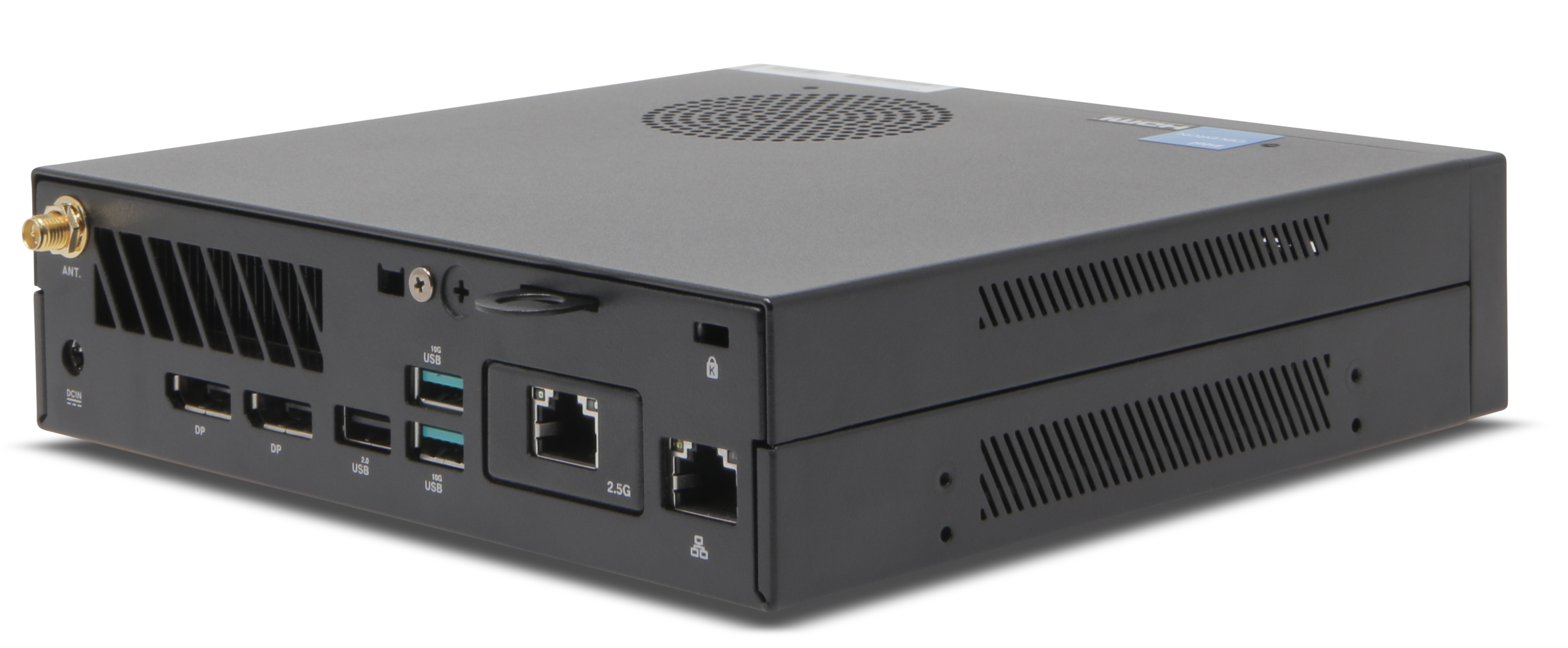

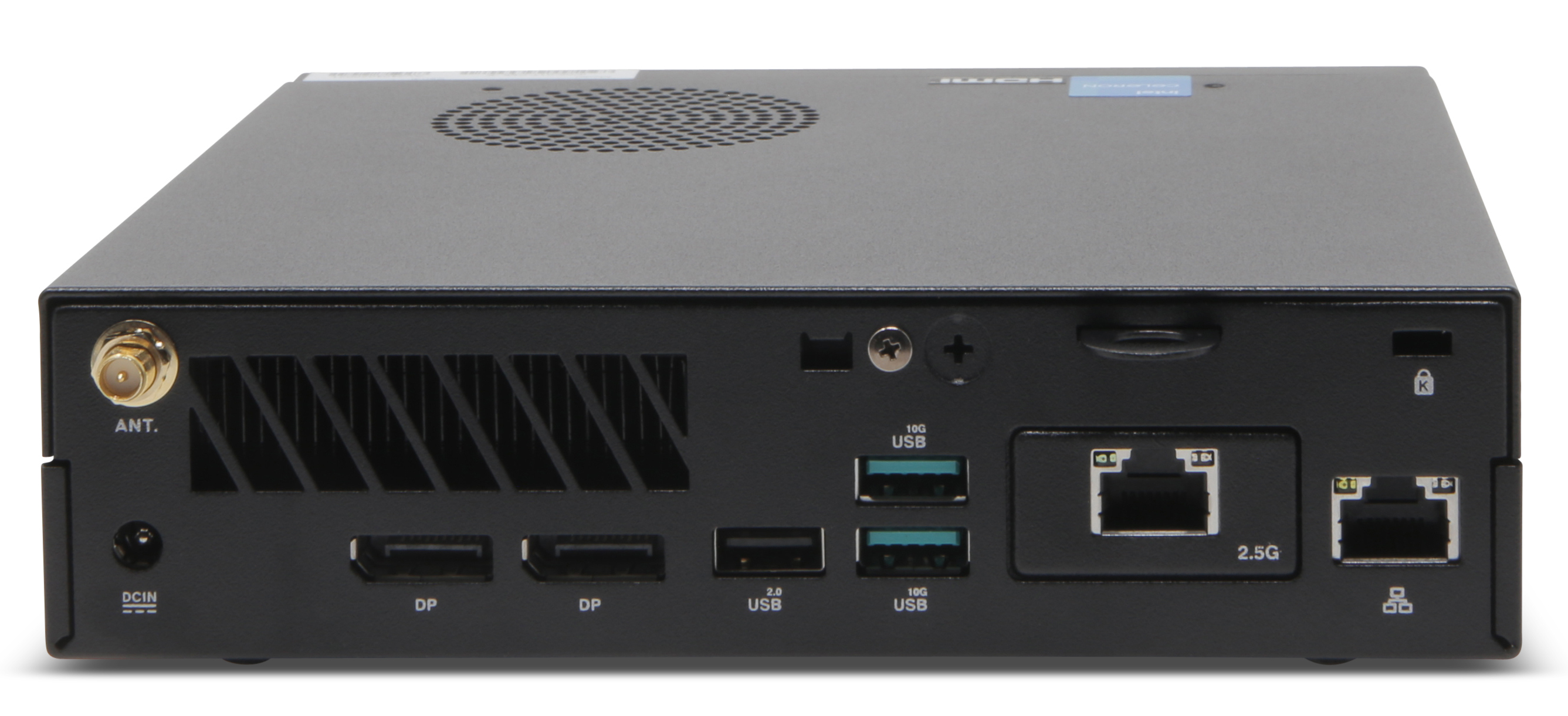

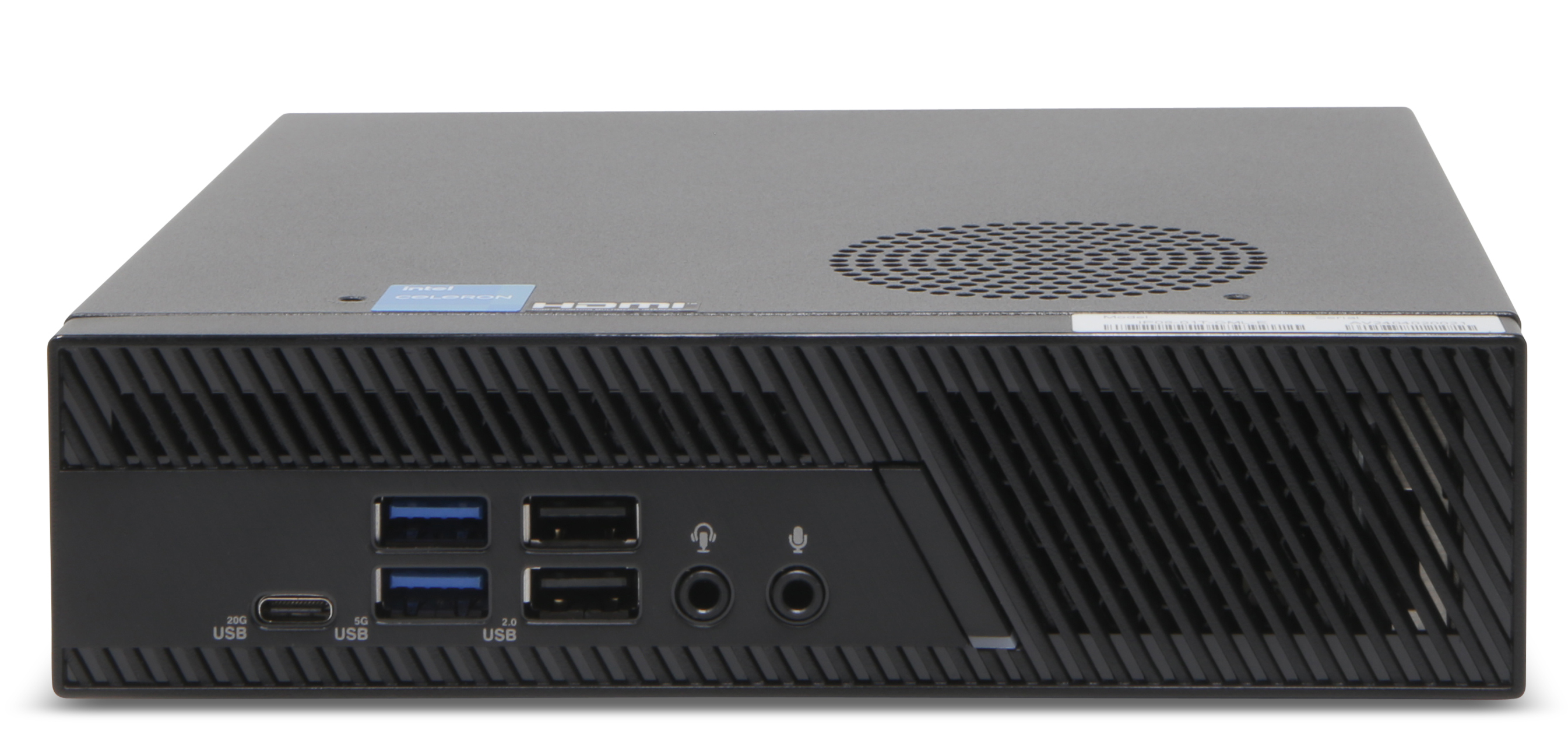

Live monitoring C-Series exacqVision 16 stream workstation (Single display support), 0TB storage. Linux Ubuntu 22.04 LTS OS on SSD, 8GB RAM, 1 X 1GbE, 1 x 2.5GbE, 8 x USB, 2 x DP, WiFi & BLE. Includes VESA mount kit, mouse and keyboard. Pre-installed exacqVision client software with 3 year RMA hardware warranty.
exacqVision C-Series monitoring stations are ideal for viewing and monitoring video via the exacqVision Client. Built to achieve specific decode and display frame rates to meet the demands of the video security industry, the C-Series takes the guesswork out of sourcing a monitoring system to support multiple video streams.
A seamless complement for exacqVision hardware, C-Series monitoring stations bring consistency to an existing exacqVision hardware ecosystem and are the perfect solution to accompany a new one. The C-Series is tailor-made for experiencing the powerful, intuitive features of exacqVision VMS.
The C-Series 16 Stream is available with a Ubuntu Linux 22.04 operating system while the 32 Stream version is available with Windows 10 or Ubuntu Linux 22.04. The system supports 16-32 video streams at full HD, ensuring smooth playback during live monitoring or search. Easily placed on the back of a display monitor and VESA-mountable, these machines are simple to install and perfect for environments with limited space.
Purchasing an NVR and video monitoring station from a single vendor streamlines the purchase, installation, and support experience. C-Series monitoring stations ship with a 3-year warranty that comes standard with all exacqVision hardware purchases.
exacqVision C-Series Video Monitoring Stations have been designed to be resilient against cyber-threats. Our C-Series products are gated, analyzed, tested, and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program for every consecutive release. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments. Visit here for more information
General | 16S |
Number of Video Streams Supported | 16 steams at full HD |
Frame Rate | 15 fps per stream |
Local Client Display | (2) Display Ports |
*Max 1 monitor recommended | |
Form Factor | Ultra Small Form Factor (USFF) |
Vesa Mountable | Yes |
Operating System | Linux (Ubuntu 22.04) |
Network | 1 x 1.0 Gbps, 1 x 2.5Gbps |
Wifi | Yes |
CPU | Celeron |
SSD Storage | 128 GB |
Additional Storage | None |
Dimensions | D: 177.8mm (7 in) |
W: 177.8mm (7 in) | |
H: 50.8mm (2 in) | |
Operational Temperature | 40°F - 95°F, 4.5°C - 35°C |
Regulatory | CE, FCC, UL |
Warranty | 3-Years |
Keyboard and Mouse | Included |
DP to HDMI Adapter | Included |
