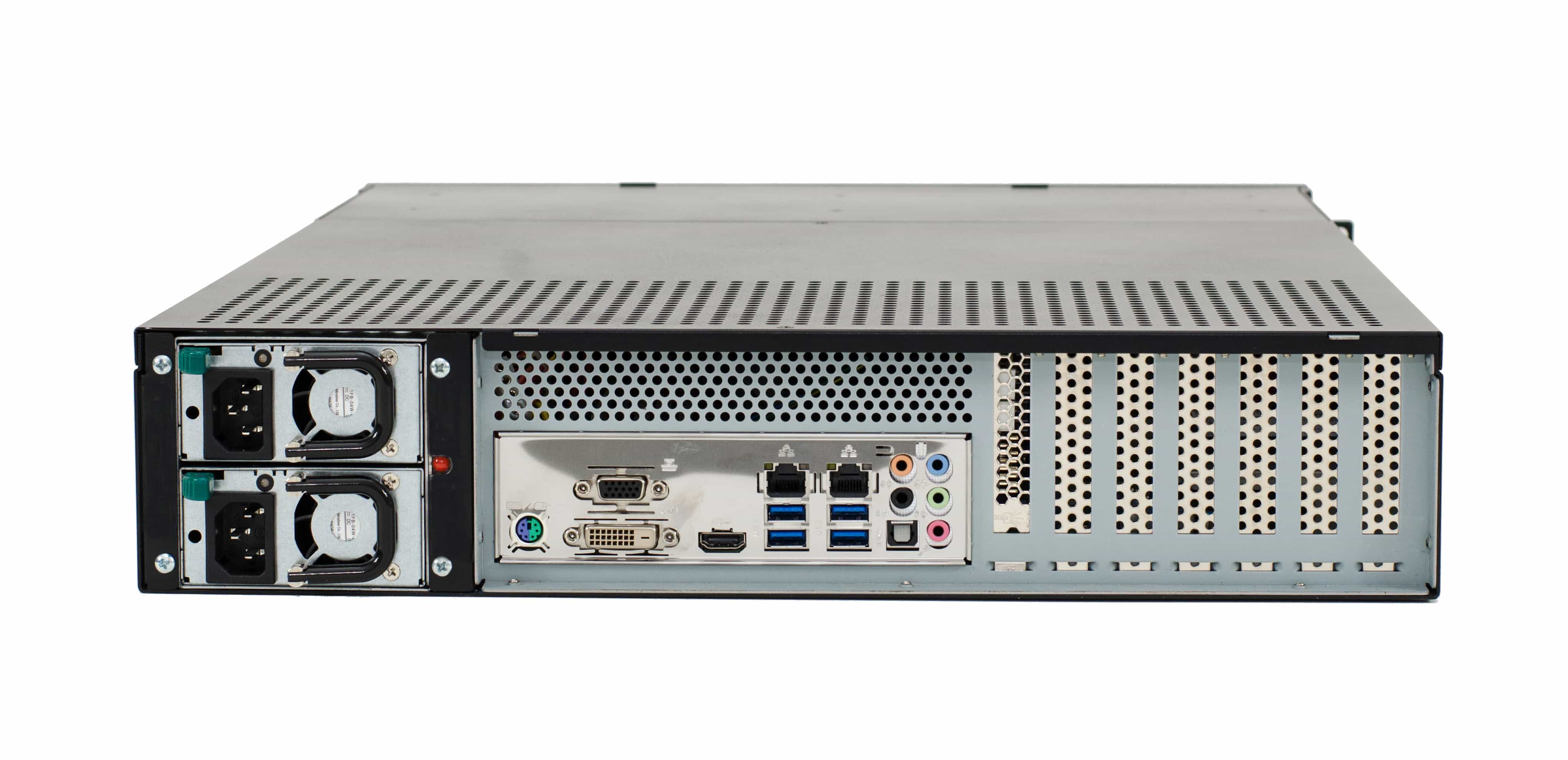

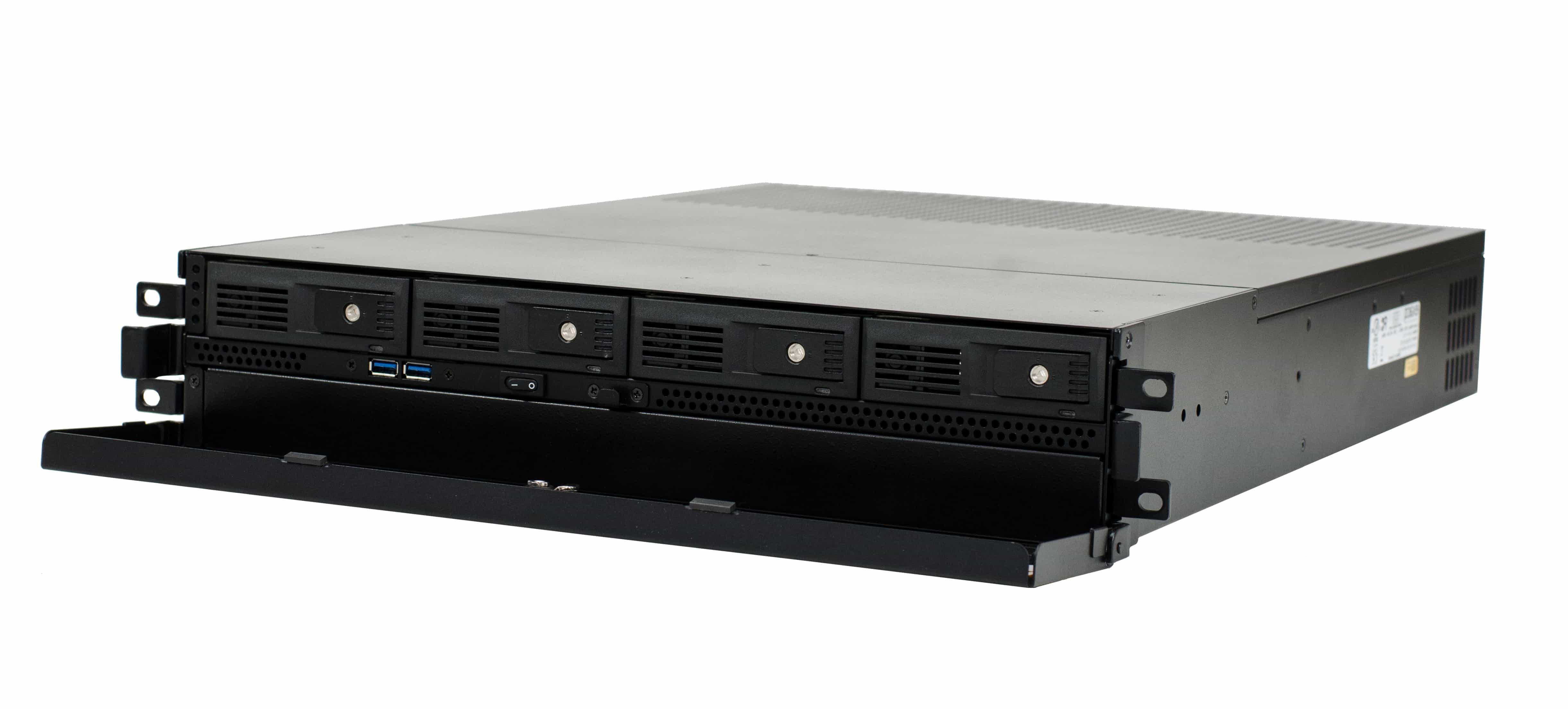

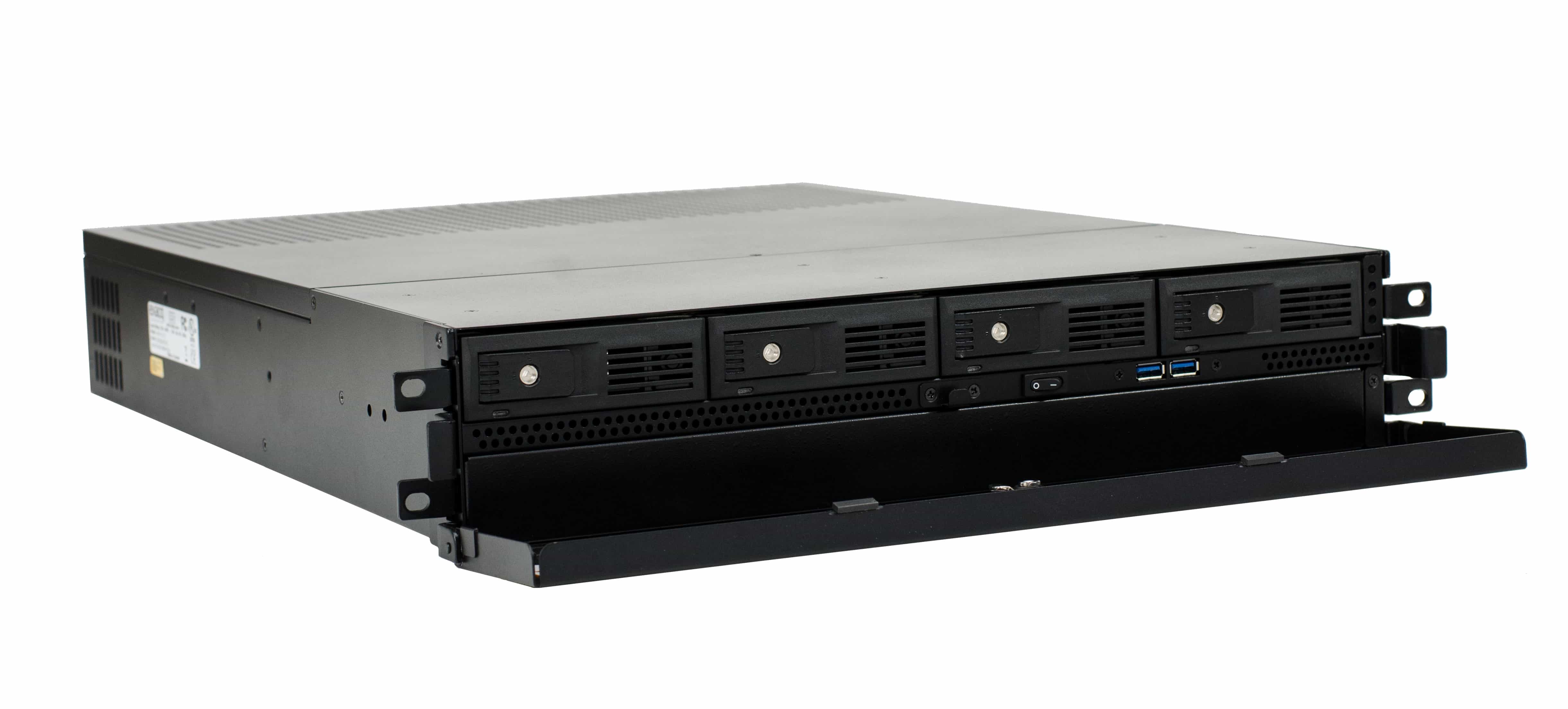

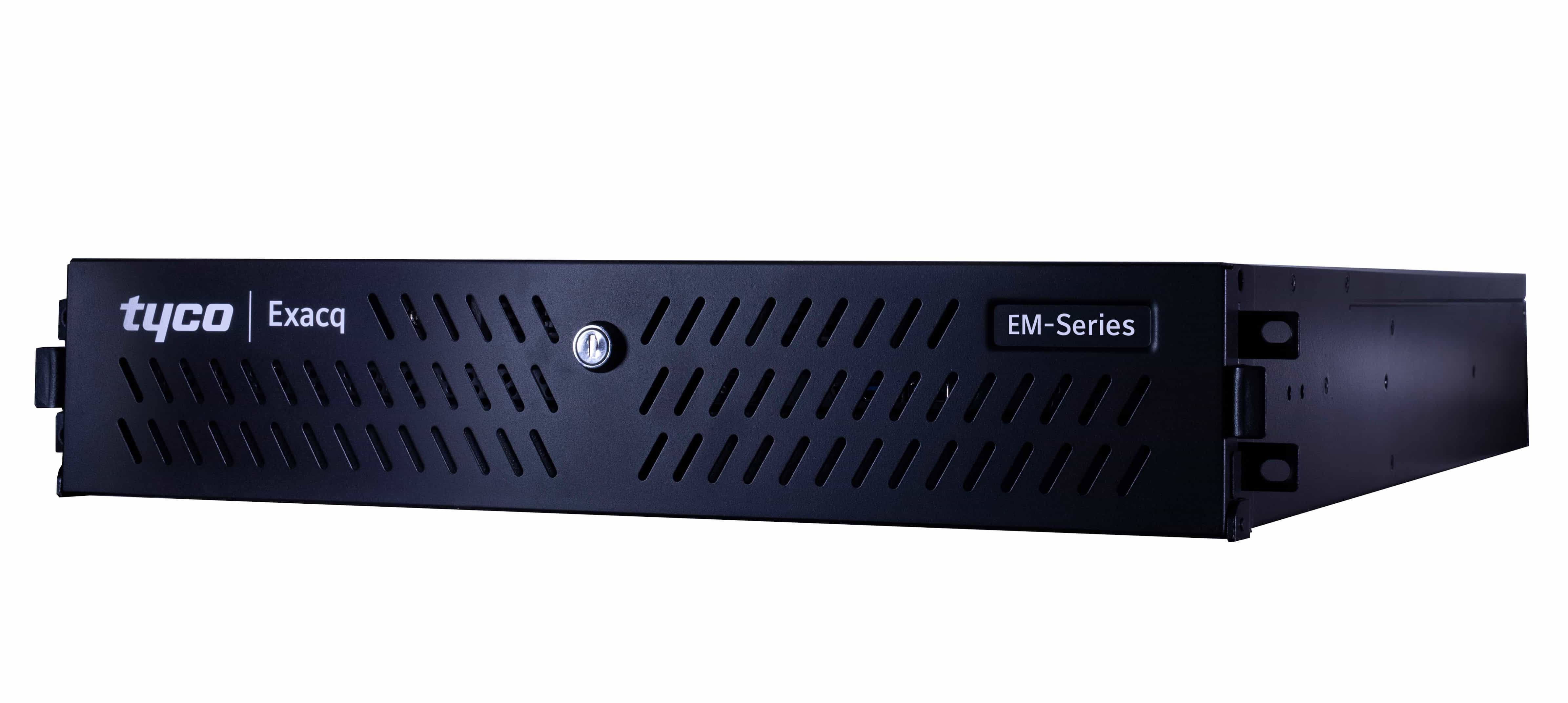

ExacqVision - EM-08T-2PL - 4TB EM-Series Rackmount 2U Enterprise Management Server Supports UP to 2000 Exacqvision Enterprise VMS Linux
Part number:
EM-08T-2PL
Price:

Rackmount 2U Enterprise Management server, supports up to 2000 exacqVision Enterprise VMS, RAID 6, Ubuntu Linux 22.04 on SSD, redundant power supplies, dual GB NIC, HDMI, DVI-D, VGA (2 max. simultaneous), keyboard and mouse, exacqVision Enterprise Manager software pre-installed, 3 year warranty.



Features:



Enterprise Video Management for Up to 2,000 Servers

The exacqVision EM-Series servers offer large-scale deployments a robust, performant platform to monitor and manage up to 2,000 exacqVision Enterprise recorders. Uninterrupted operation with RAID protected enterprise-class front-loading hard disk drives and optional RAID protected operating system drives, the EM-Series servers provide a powerful solution that eliminates the complexity, risk, and time required to set up and maintain off-the-shelf enterprise video management servers.



Enterprise Manager Software Provides Essential Health Information

EM-Series servers were designed specifically to run the Enterprise Manager software which is an integrated part of the exacqVision Enterprise edition VMS. Through an intuitive dashboard, the Enterprise Manager provides ready access to enhanced health monitoring, user management, administration of software updates and high-availability capabilities. The powerful combination of EM-Series servers running Enterprise Manager simplifies management of exacqVision VMS software and provides customers with the features that are indispensable in distributed enterprise environments.



Safeguard Against Cyber Attacks Across Devices

exacqVision EM-Series have been designed to be resilient against cyber-threats. This solution includes role based access control that allows administrators to restrict access to functions by user role. Safeguard controls include an enhanced security mode which forces the use of complex, non-default passwords and encrypted communications. EM-Series adheres to the rigorous standards of the Tyco Cyber Protection Product Security Program. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.



3-Year Warranty and Access to Software Updates

  • Benefit from new features and enhancements to enterprise management features with regular software updates
  • 3 years of system warranty
SpecificationsEM-Series 2000
Maximum Instances of exacqVision Enterprise VMS Supported2000
Pre-Loaded SoftwareexacqVision Enterprise Manager
Maximum Hard Drives4
RAIDRAID 6
Monitor Output

DisplayPort, HDMI, VGA

3 Simultaneous

Maximum Storage8TB
Operating System

Windows Server 2022

Ubuntu Linux 22.04

Operating System Drive256 GB SSD
CPUIntel Xeon W
RAM16 GB
NIC

1 x 2.5 Gbps, 1 x 1 Gbps

2 x 10 Gbps SPF+, 1 x 2.5 Gbps, 1 x 1 Gbps (Optional)

USB2 x USB 3.2, 4 x USB 3.1, 2 x USB 2.0
AccessoriesKeyboard, Mouse
Dimensions (H x W x D)

3.5 x 17 x 24 in

8.9 x 43.18 x 15.4 cm

Weight

34 lbs

15.4 kg

Input Voltage

120/240 VAC

auto-sensing

Power SuppliesRedundant
Power & Heat

240 Watts/790 BTU/h (Max)

170 Watts/570 BTU/h (Typical)

Operating Temperature

40° - 95°F

4.5° - 35°C
