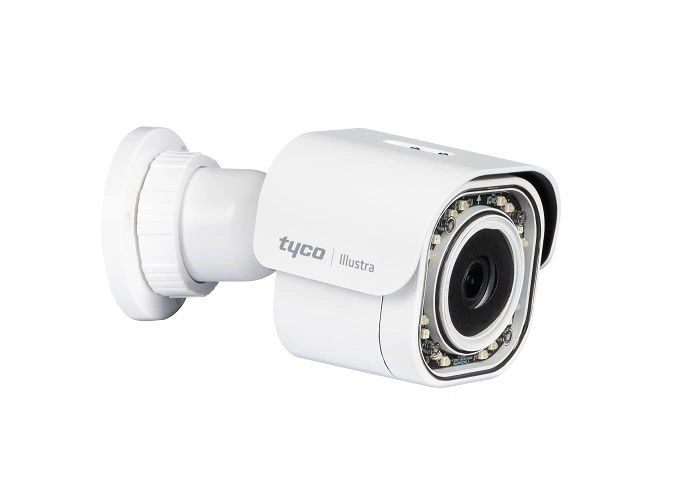

ExacqVision - IES02-B10-BI04 - 2MP Illustra Essentials Bullet Outdoor IP Camera, 2.8mm
Product Overview
The Exacq IES02-B10-BI04 is an Illustra Essentials 2MP bullet camera with a 1/2.8" Sony CMOS sensor and 2.8mm fixed lens (F1.8, 110° horizontal FOV). It delivers 1080p resolution at 30 fps with H.265, H.264, and MJPEG compression. Features include True WDR (120dB), IR illumination up to 30m, True Day/Night with ICR, IP67 outdoor rating, and corridor mode support. The camera is factory-focused for quick installation and includes 3D noise reduction.
Key Configuration
- • Imager: 1/2.8" Sony CMOS; resolution: 1920×1080 (1080p) at 30 fps
- • Lens: fixed 2.8mm, F1.8; horizontal FOV: 110°, vertical FOV: 60°
- • IR distance: 30m; minimum illumination: color 0.08 Lux (50IRE), B/W 0.05 Lux (50IRE), 0 Lux with IR
- • Video compression: H.264, H.265, MJPEG; dual stream (both up to 1080p @ 30 fps)
- • Power: DC12V or PoE (IEEE 802.3af Class 3); max power draw: 8.3W
Key Features
It delivers 120dB True WDR, 3D noise reduction, and True Day/Night (ICR) for superior performance in high-contrast and low-light environments. It supports corridor mode for narrow vertical spaces and is ONVIF Profiles S/G/Q and NDAA compliant. Advanced imaging includes motion, blur, and privacy zones, with support for edge storage up to 256GB (SDXC).
Technical Context
This camera features a wide shutter speed range of 1/2 to 1/10,000s and an S/N ratio exceeding 50dB for clear image capture. It supports a comprehensive suite of network protocols, including IPv6, TLS, and SSH, with enhanced multi-method authentication for advanced security. Housed in a white RAL 9003 casing, it allows for 5 simultaneous users and is compatible with all major web browsers, including IE 11, Chrome, and Edge.
Installation Notes
The unit measures 77 × 84 × 147 mm and weighs 0.49 kg, featuring an IP67 outdoor rating and a factory-focused lens for rapid deployment. It operates reliably between -30°C and 60°C in 10–90% non-condensing humidity. While not vandal-resistant, its compact design is optimized for specialized environments such as hallways, retail aisles, and tunnels.
| Operational | |
| Resolution & Aspect Ratio | 1920 x 1080 (1080p) 16:9 |
| Max Frame Rate | 30fps |
| Video Compression | H.264, H.265, MJPEG |
| Video Streams | Dual Stream with both streams at a maximum of 1080p @ 30ips |
| Imager | 1/2.8” Sony CMOS |
| Image Orientation Settings | Off, flip, mirror, both |
| S/N Ratio | More than 50dB |
| Lens Type | Fixed 2.8mm focal length |
| Focus Control | Factory focused |
| Aperture | F/1.8 |
| Focal Length | 2.8mm |
| Field of View (H/V) | 110°/60° |
| Shutter Speed | 1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) / (Shutter-priority:default NTSC=1/60s, PAL=1/50s) |
Minimum Illumination Color B/W With IR | 0.08 Lux (50IRE) | 0.03 Lux (30IRE) 0.05 Lux (50IRE) | 0.02 Lux (30IRE) 0.0 Lux |
| Day/Night | True Day/Night with ICR |
| IR LEDS | Yes |
| IR Distance | 30m |
| Noise Reduction | 3D |
| Wide Dynamic Range | True WDR 120dB |
| ONVIF-Compliant | Profile S/G/Q |
| Motion Detection Zones | 3 |
| Blur Detection Zones | Yes |
| Privacy Zones | 8 |
| Image Rotation | Corridor |
| Analog Video Output | No |
| Audio | No |
| Simultaneous Users | 5 |
| Network | |
| Ethernet Interface | IEEE 802.3, 10/100 Base-T/TX, auto sensing, 1 x RJ45 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, NTP, SMTP, WSSecurity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, SNMP, UPnP, RTSP, LLDP |
Configuration Management | |
| Web Browser | IE 11 or above, Firefox, Chrome, Safari, Microsoft Edge |
| Security | Enhanced Security |
| Onboard Storage | |
| Card Support | SDXC up to 256GB |
| Pre-Alarm Recording | 1-10 sec |
| Recording Format | AVI |
| Recording Trigger | Blur Detection, Motion Detection |
| VideoEdge TrickleStor | No |
| Electrical | |
| Power Input | DC12V; PoE IEEE 802.3af Class 3 |
| Maximum Power Draw | 8.3W |
| Physical | |
| Dimensions (HxWxD) | 77mm x 84mm x 147mm (3.03in x 3.3in x 5.78in) |
| Weight | 0.49kg (1.08 lbs) |
| Housing Color | White, RAL 9003 |
| Operating Temperature | Cold Start Temperature: -200 C to 600 C (-40 F to 1400 F) Operating Temperature: -300 C to 600 C (-220 F to 1400 F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Vandal Resistant | N/A |
| Outdoor Rating | IP67 |
| Regulatory | |
| Safety | UL 62368-1, IEC 62368-1, EN 62338-1, IEC 62471 |
| Emissions | FCC CFR 47, Part 15 Class A, EN 55032 |
| Immunity | EN 50130-4, EN 61000-3-2, EN 61000-3-3 |
| Environment | RoHS, Reach, WEEE |
| NDAA Compliant | Yes |
