Meet a Variety of Recording Requirements at a Low Cost

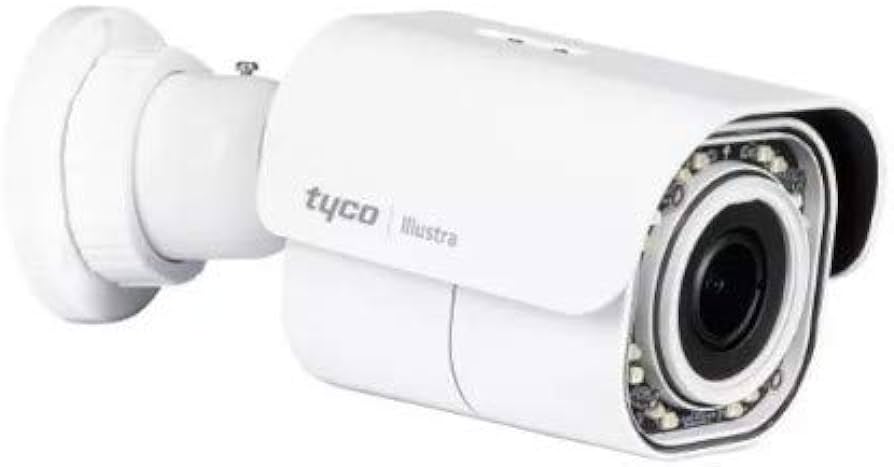

The Illustra Essentials Gen4 Bullet camera provides up to 1080p resolution with IR illumination to manage low light scenes. The affordable cameras capture video in a variety of lighting conditions with features such as True Day/ Night and Wide Dynamic Range to fulfill security operators’ expectations, all while maintaining a lower price point. The camera includes the latest compression technologies by supporting both H.265 and H.264 codecs resulting in reduced bandwidth and storage requirements. To aid ease of setup all Essentials Gen4 models support one-touch auto-focus. Rated IP67 for an additional degree of environmental protection, the Bullet exceeds previous generations of Illustra Essentials cameras. The Essential Bullet also features corridor mode which allows cameras to maximize video surveillance in narrow vertical situations. Ideal for hallways, retail aisles, and tunnels this mode creates a unique high quality, vertical video.
Record Video with Low Light Clarity
Poor low-light performance by megapixel cameras hampers some of the most important tasks security
Features:
- 2MP (1080p) resolution for HD quality images
- Manage bandwidth resources with H.264 and H.265 dualstream encoding
- Up to 30 frames per second for seamless video streaming
- 2.7-13.5mm varifocal lens with motorized zoom
- One-touch auto-focus
- IR Illuminators deliver clear video when viewing dark scenes
- IP67 environmental rating to protect against dust and water
- True Day/Night functionality for low light conditions
- WDR to simultaneously view high-contrasting areas
| Operational | |
| Resolution & Aspect Ratio | 1920 x 1080 (1080p) 16:9 |
| Max Frame Rate | 30fps |
| Video Compression | H.264, H.265, MJPEG |
| Video Streams | Dual Stream with both streams at a maximum of 1080p @ 30ips |
| Imager | 1/2.8”, Sony CMOS |
| S/N Ratio | More than 50dB |
| Image Orientation Settings | Off, flip, mirror, both |
| Lens Type | f2.7mm~13.5mm |
| Focus Control | Remote On-Push Focus and Remote Manual Adjustment |
| Aperture | F1.4~2.8 |
| Focal Length | 2.7 - 13.5mm |
Field of View (H/V) Wide Angle Telephoto | 100°/53° 34°/20° |
| Shutter Speed | 1/2~1/10,000s (Manual:default NTSC=1/30s, PAL=1/25s) / (Shutter-priority:default NTSC=1/60s, PAL=1/50s) |
Minimum Illumination Color B/W With IR | 0.08 Lux (50IRE) | 0.03 Lux (30IRE) 0.05 Lux (50IRE) | 0.02 Lux (30IRE) 0.0 Lux |
| Day/Night | True Day/Night with ICR |
| IR LEDS | Yes |
| IR Distance | 30m |
| Noise Reduction | 3D |
| Wide Dynamic Range | True WDR 120dB |
| ONVIF-Compliant | Profile S/G/Q |
| Motion Detection Zones | 3 |
| Blur Detection Zones | Yes |
| Privacy Zones | 8 |
| Image Rotation | Corridor |
| Analog Video Output | No |
| Audio | No |
| Simultaneous Users | 5 |
| Network | |
| Ethernet Interface | IEEE 802.3, 10/100 Base-T/TX, auto sensing, 1 x RJ45 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, Unicast, NTP, SMTP, WSSecurity, IEEE 802.1x, PEAP, SSH, HTTPS, SSL, SOAP, WSAddressing, SNMP, UPnP, RTSP, LLDP |
Configuration Management | |
| Web Browser | IE 11 or above, Firefox, Chrome, Safari, Microsoft Edge |
| Security | Enhanced Security |
| Onboard Storage | |
| Card Support | SDXC up to 256GB |
| Pre-Alarm Recording | 1-10 sec |
| Recording Format | AVI |
| Recording Trigger | Bur Detection, Motion Detection |
| VideoEdge TrickleStor | No |
| Electrical | |
| Power Input | DC12V; PoE IEEE 802.3af Class 3 |
| Maximum Power Draw | 9.9W |
| Physical | |
| Dimensions (HxWxH) | 77mm x 84mm x 176mm (3.03in x 3.3in x 6.92in) |
| Weight | 0.58kg (1.28 lbs) |
| Housing Color | White RAL 9003 |
| Operating Temperature | Cold Start Temperature: -200 C to 600 C (-40 F to 1400 F) Operating Temperature: -300 C to 600 C (-220 F to 1400 F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Vandal Resistant | N/A |
| Outdoor Rating | IP67 |
| Regulatory | |
| Safety | UL 62368-1, IEC 62368-1, EN 62338-1, IEC 62471 |
| Emissions | FCC CFR 47, Part 15 Class A, EN 55032 |
| Immunity | EN 50130-4, EN 61000-3-2, EN 61000-3-3 |
| Environment | RoHS, Reach, WEEE |
