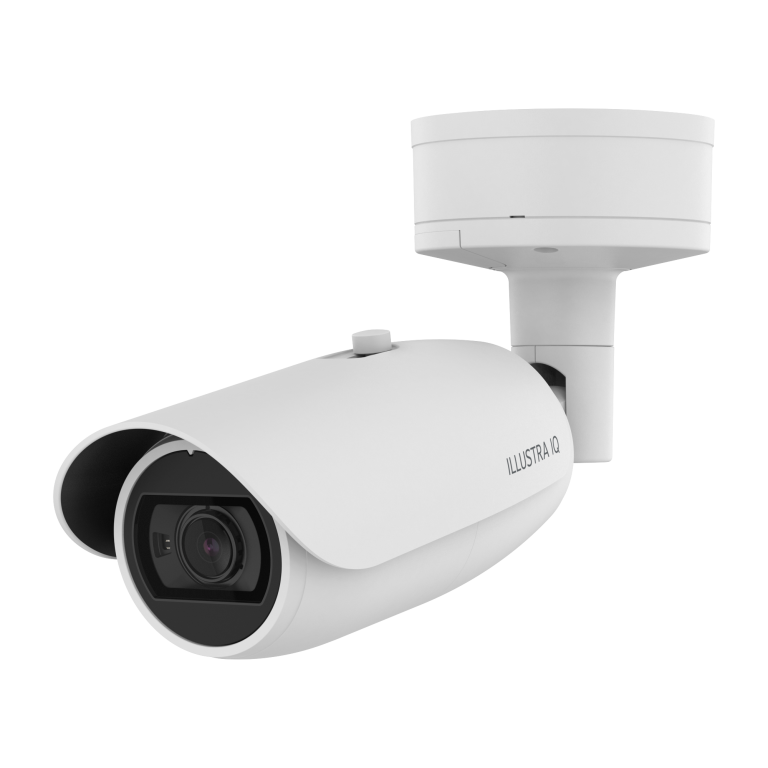

ExacqVision - IFS02-B12-OIB4 - Illustra Flex Gen4 2MP Bullet, 2.7-13.5mm, AI, TDN w/IR, TWDR, EIS, IP66/67, IK10
Part number:
IFS02-B12-OIB4
Price:

Our cutting-edge camera integrates deep learning AI to redefine surveillance precision, focusing on what matters most in every image, even in the most challenging conditions. Out of the box, the Flex AI suite is calibrated to ensure outstanding imaging, particularly in low light, complemented by high-end image stabilization and intelligent, adaptive IR illumination up to 50 meters (164 ft). Designed for simplicity, it’s easy to install, manage, and use, making it accessible for various applications. This camera is built to endure all weather conditions thanks to its IP66, IP67, NEMA 4x, and IK10 certifications, ensuring reliable operation in any outdoor environment. An open standard interface and Onvif Profile S, G, T, and M conformity facilitate seamless integration. At the same time, low power consumption and advanced security features underscore its efficiency and commitment to data protection. Power failover support and compliance with JCI cyber norms set a new standard for reliability and security. Our camera comes with a comprehensive 5-year warranty, offering peace of mind and demonstrating our confidence in its performance and durability.



Features:

  • Flex AI suite enabled & calibrated out of the box
  • Outstanding imaging in low-light conditions
  • High-end image stabilization using Gyro sensor
  • Smart & Adaptive IR up to 50 m (164 ft)
  • Corridor and dual HD streaming mode
  • IP66, IP67, NEMA 4x, IK10 certified
  • Onvif Profile S, G, T, M conformant
  • Power failover support
  • Conforms to JCI cyber norms
Camera FeaturesFlex Gen4 Bullet Camera
AI Object ClassificationClasses: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Sub-Classes (attributes): Person Clothing Color (Upper, Lower), Vehicle Color Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction
AudioBi-directional, 1x Line input and 1x Line output
Day/NightTrue Day/Night CF removal
DefogSupported
DimensionsØ91 (Camera) x 352.5 (L) mm with back box (without sunshield), Backbox is Ø120
Dynamic RangeTrue multi shutter WDR up to 141 dB Off, TWDR, TWDR 3x, SmartWDR
Environment RatingIEC 60529 IP66, IEC 60529 IP67 IEC 62262 IK10 BS EN IEC 63000 ROHS, REACH NEMA 250 Type 4x
EthernetIEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing
Field of ViewH: 98.47°(W) – 31.1°(T)
 V: 51.88°(W) – 17.55°(T)
H.264yes
H.265yes
Housing ColorSignal White Pantone RAL 9003
ImagerSony 1/2.8” Progressive Scan CMOS imager
Image StabilizationElectronic image stabilization (EIS) using gyro sensor (coming soon)
IR Illuminator850 nm, Smart / Adaptive IR, up to 50m (164 ft)
Lens Type2.7 mm – 13.5 mm, MFZ, P-Iris, F1.6(W) – F3.1(T), One touch auto focus, manual, and automatic focus with zoom
Max Frame Rate2MP: 60/50 fps
Minimum IlluminationColor: 0.05 lux B/W: 0.005 lux 0 lux with IR
Motion Detection3 zones supported
Onboard StoragemicroSDXC slot, Class 10 or better, up to 1TB supported (Card not included) Pre event / Post event 1- 10 sec Encrypted storage and streaming TrickleStor offline recording and backfilling
Operating Temperature-50°C (-58°F) to +60°C (140°F) (IR off at +50° C/122° F)
Power DrawPoE (2MP) Typ. 0.11A / Max 0.23A Typ. 5.0W / Max 11.0W, 24VAC (2MP) Typ. 0.41A / Max 0.82A Typ. 5.2W / Max 11.3W
Power InputPoE 802.3af (802.3at Type 1) Class 3 | 24VAC
Privacy Zones10 user definable rectangular zones
Resolution Options16:9: 1920 x 1080 (2MP) to 480x272
Simultaneous Users10 users
Supported ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS
WeightNet 1.80 kg (3.97 lbs.), Gross 2.4Kg (5.30 lbs.)
Wi-FiMicro USB via optional USB Wi-Fi Dongle IA-KIT-WD-UUA
