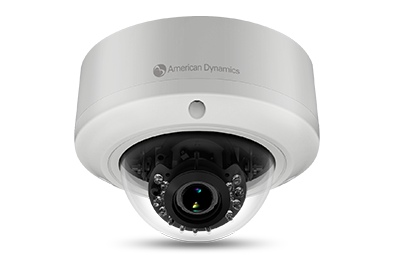

EXACQ - IFS02-D12-OIB4 - Illustra Flex Gen4 2MP Minidome, 2.7-13.5mm, AI, TDN w/IR, TWDR, EIS, IP66/67, IK10, Clear Bubble
Part number:
IFS02-D12-OIB4
Price:
Discover the future of technology with our cutting-edge deep learning AI solution, designed to deliver unparalleled image enhancements in the most challenging conditions. Our smart system optimizes bandwidth for seamless performance while ensuring low power consumption, making it an eco-friendly choice for any setting. Engineered to withstand all weather conditions and compatible with an open standard interface, it integrates effortlessly into your existing setup. Our advanced security features offer comprehensive data protection, giving you peace of mind. Plus, with a 5-year warranty, our solution is not just an investment in superior technology but in reliability and trust. Experience the perfect blend of innovation, efficiency, and security, all in one robust package.
Features:
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low-light conditions
- High-end image stabilization using Gyro sensor
- Smart & Adaptive IR up to 50 m (164 ft)
- Corridor and dual HD streaming mode
- IP66, IP67, NEMA 4x, IK10 certified
- Onvif Profile S, G, T, M conformant
- Power failover support
- Conforms to JCI cyber norms
| Camera Features | Flex Gen4 Outdoor Mini Dome Camera |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Sub-Classes (attributes): Person Clothing Color (Upper, Lower), Vehicle Color Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction |
| Audio | Bi-directional, 1x Line input and 1x Line output |
| Alarm Input/Output | 1x Alarm In and 1x Alarm Out |
| Day/Night | True Day/Night CF removal |
| Defog | Supported |
| Dimensions | Ø145x106.5mm (Ø5.71 x 4.19 in) (without mount plate) Ø145.3x113.5mm (Ø5.72 x 4.47 in) (with mount plate) |
| Dynamic Range | True multi shutter WDR up to 141 dB Off, TWDR, TWDR 3x, SmartWDR |
| Environment Rating | IEC 60529 IP66, IEC 60529 IP67 IEC 62262 IK10 BS EN IEC 63000 ROHS, REACH, WEEE NEMA 250 Type 4x |
| Ethernet | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing |
| Field of View | 2MP: H: 98.47°(W) – 31.1°(T) V: 51.88°(W) – 17.55°(T) 5MP: H: 97.57°(W) – 31.74°(T) V: 70.26°(W) – 23.84°(T) 8MP: H: 112.1°(W) – 47.5°(T) V: 58.0°(W) – 26.6°(T) |
| H.264 | yes |
| H.265 | yes |
| Housing Color | Signal White Pantone RAL 9003 |
| Imager | 2MP: Sony 1/2.8” Progressive Scan CMOS imager 5MP: Sony 1/2.8” Progressive Scan CMOS imager 8MP: Sony 1/1.8” Progressive Scan CMOS imager |
| Image Stabilization | Electronic image stabilization (EIS) using gyro sensor (coming soon) |
| IR Illuminator | 850 nm, Smart / Adaptive IR, up to 50m (164 ft) |
| Lens Type | 2MP: 2.7 mm – 13.5 mm, MFZ, P-Iris, F1.6(W) – F3.1(T) 5MP: 2.7 mm – 13.5 mm, MFZ, P-Iris , F1.31(W) – F2.37(T) 8MP: 3.6 – 11mm, MFZ, P-iris, F1.3(W) – F2.15(T) One touch auto focus, manual, and automatic focus with zoom |
| Max Frame Rate | 2MP: 60/50 fps 5MP: 30/25 fps 8MP: 15/12.5 fps |
| Minimum Illumination | 2MP: Color: 0.05 lux, B/W: 0.005 lux 5/8MP: Color: 0.1 lux B/W: 0.01 lux |
| MJPEG | yes |
| Motion Detection | 3 zones supported |
| Onboard Storage | microSDXC slot, Class 10 or better, up to 1TB supported (Card not included) Pre event / Post event 1- 10 sec Encrypted storage and streaming TrickleStor offline recording and backfilling |
| Operating Temperature | -50°C (-58°F) to +60° C (140°F) (IR off at +50° C/122° F) Start-up temperature: -40°C (-40°F) Humidity up to 95% RH, Non-Condensing |
| Pan Travel | Pan 350°, Tilt 67°, Rotation 355° |
| Power Draw | 2MP PoE Typ. 0.1A / Max 0.21A Typ. 4.5W / Max 10.0W 24VAC Typ. 0.38A / Max 0.75A Typ. 4.7W / Max 10.3W 5MP PoE Typ. 0.11A / Max 0.22A Typ. 5.2W / Max 10.4W 24VAC Typ. 0.43A / Max 0.78A Typ. 5.4W / Max 10.7W 8MP PoE Typ. 0.12A / Max 0.25A Typ. 5.5W / Max 12.0W 24VAC Typ. 0.45A / Max 0.88A Typ. 5.7W / Max 12.3W |
| Power Input | PoE 802.3af (802.3at Type 1) Class 3 | 24VAC |
| Privacy Zones | 10 user definable rectangular zones |
| Resolution Options | 2MP: 16:9: 1920 x 1080 (2MP) to 480x272 5MP: 4:3: 2560 x 1920 (5MP) to 480x272 8MP: 16:9: 3840 x 2160 (8MP) to 480x272 |
| Simultaneous Users | 10 users |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams |
| Weight | Net 1.01 kg (2.23 lbs.), Gross 1.29 kg (2.84 lbs.) |
| Wi-Fi | Micro USB via optional USB Wi-Fi Dongle IA-KIT-WD-UUA |
