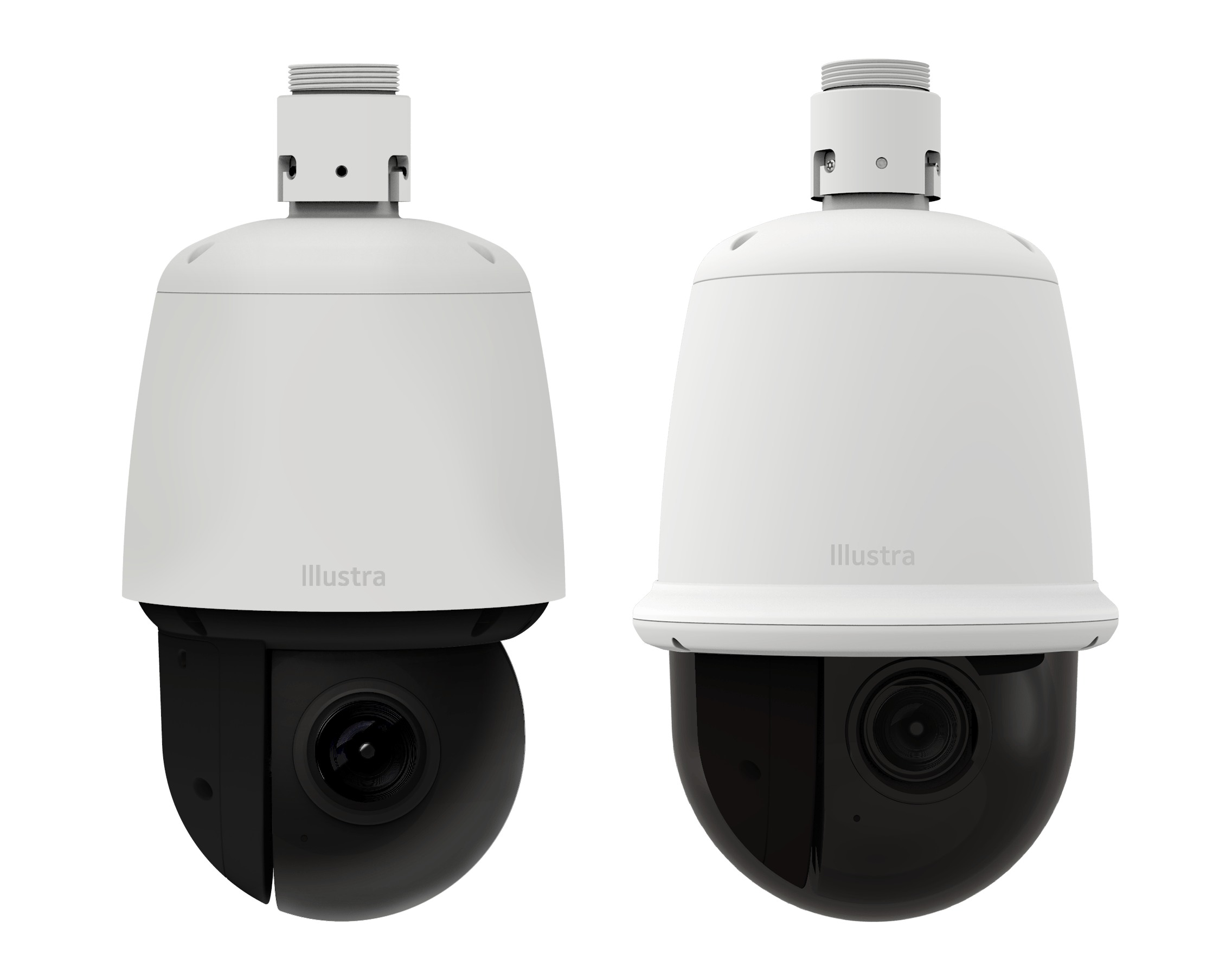

The Illustra Flex Gen4 cameras are designed to provide complete 360-degree coverage with total remote control over the camera’s field of view (FOV). 30x optical and digital zoom capabilities allow you to see objects from miles away or focus on important details relevant to surveillance and security. Available in 2MP and 5MP models, the Illustra Flex Gen4 cameras push the boundaries of image quality at low bandwidth in low light and adverse conditions with Intellizip, SmartWDR, Smart Defog, and built-in IR illuminators (Up to 656 ft (200m)).
Illustra Flex cameras are equipped with deep learning AI and an expansive list of subclassification and object attribute capabilities to classify targets more accurately within a scene. Miss fewer incidents, reduce false alarms, and automate forensic searches for more accurate situational awareness. Plus, customize analytic rules to suit your business best to begin gathering data instantly.
Large Field of View with Intelligence at the Edge
360° Coverage Reduced false alarms, faster investigations and accurate detection of events with deep Control larger field of view with Pan-Tilt-Zoom. learning AI Built in 656ft (200m) IR (outdoor only) provides high quality images for 24x7 operation
Auto-Tracking Capabilities Open Standard Support
Auto-tracking adjusts field of view to follow person through camera range for simplified camera operation
Encrypted Data Transfer End-to-End
Protection against data misuse with full encryption from camera to recorder/SD card ONVIF conformance provides open, consistent and reliable standard. Fully interoperable with multiple video management platforms including American Dynamics and Exacq
Cyber Secure
Meet evolving cyber challenges with resilient and NDAA-compliant camera
Features:
- 2MP and 5MP resolution
- Large field of view with 360° coverage
- Auto-tracking capabilities
- Built-in deep learning AI (Event Alerts, Forensic Search, Metadata)
- Encrypted data transfer end-to-end
- Fully interoperable with multiple VMS including American Dynamics & Exacq
- ONVIF profile S, G, M (profile T available in future release)
- NDAA & TAA Compliant
- 5 year warranty
Operational | 2MP | 5MP |
| Camera | ||
| Image Sensor | Sony 1/2.8” Progressive Scan CMOS imager | Sony 1/2.8” Progressive Scan CMOS imager |
| Lens | 4.5 mm – 135 mm, MFZ, P-iris F/1.4(W) – F/4.4(T) | 5.2 - 156mm, MFZ, P-iris F/1.3(W) – F/4.8(T) |
One touch auto focus, manual, and automatic focus with zoom | ||
| Field of View (FoV) | H: 59.8° - 2.34° V: 40.5° - 1.48° | H: 58.1° - 2.34° V: 40.5° - 1.48° |
| Day/Night | True Day/Night CF removal | |
| Minimum Illumination | Indoor/Outdoor with IR Color: 0.01 lux, B/W: 0.007 lux IR on: 0 lux | Indoor/Outdoor with IR Color: 0.06 lux, B/W: 0.02 lux IR on: 0 lux |
Indoor with bubble Color: 0.02 lux, B/W: 0.01 lux | Indoor with bubble Color: 0.1 lux, B/W: 0.02 lux | |
| Electronic Shutter Control | Automatic, Manual (1/4 to 1/32000 sec) | |
IR Illumination* *IR models only | 850 nm LEDs, Adaptive/Smart IR Outdoor: 200 m (656 ft) Indoor: 50 m (164 ft) | |
| Memory | 1024 MB RAM, 4096 MB Flash | |
| Pan/Tilt/Zoom | Pan: 360° continuous endless, 0.04° - 300°/s Tilt: 210°, 0.04° - 180°/s (indoor/outdoor with IR) Tilt: 180°, 0.04° - 180°/s (indoor with bubble) Zoom: 30x optical, 12x digital, total 360x zoom Auto flip, 300 presets, 96 sequences, 16 programmable pattern, Apple peel, adjustable zoom speed, home position (Preset, Pattern, Sequence, or Scan after no PTZ activity) | |
| Video | ||
| Bandwidth Management | IntelliZip Smart Codec | |
| Video Compression | H.264/H.265/MJPEG H.264 IntelliZip / H.265 IntelliZip | |
| Bitrate Control | CBR/VBR/CVBR (configurable) | |
| Max Resolution (HxV) & Aspect Ratio | 16:9: 1920 x 1080 (2MP) to 480x272 Stream2 supports 1080p, default 720p | 4:3: 2560 x 1920 (5MP) to 480x272 Stream1 default 16:9: 2560 x 1440 (4MP) Stream2 supports 1080p, default 720p |
| Max Frame Rate (60 Hz/50 Hz) | 2MP: 60/50 fps | 2MP: 60/50 fps 5MP: 30/25 fps |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams (per sensor) | |
| Dynamic Range | True multi shutter WDR up to 120dB Off, SmartWDR, TWDR, TWDR 3x | |
| SmartDefog | Supported | |
| Picture Settings | Auto Exposure: Multiple Profiles (incl Auto, Gaming, LPR), Multiple ROI (incl AI ROI: Object, Person), Gain Control (Auto, Max, Manual), Flickerless, White Balance (Auto Normal, Auto Wide, Manual), text overlay | |
| Privacy Zones | 10 user definable rectangular zones | |
| Image Stabilization | Electronic Image stabilization (EIS) by using gyro sensor | |
| Analytics | ||
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction Sub-Classes: Person Clothing Color (Upper, Lower), Vehicle Color | |
| AI Tamper Detection | Blackout, Whiteout, Scene Change (FoV tamper) | |
| AI Blur Detection | Supported | |
| AI Metadata | Supported | |
| Motion Detection Zones | Yes (Single Full screen Zone) | |
| Intelligent Guard (Auto Tracking) | Person Tracking | |
| Network | ||
| Network | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing | |
| Cyber security | ISASecure ISA/IEC 62443-4-1 certified secure development Secure boot Signed and encrypted firmware | |
| Authentication and Security | TLS, HTTPS (HTTP over TLS), WS-Security, Certificate Management, Multi-level password protection, IP address filtering, HTTPS encryption, Enhanced Security (One-Click Security Hardening), User Access Log, Validate Complex Credentials, Disabling Unused Protocols, IEEE 802.1x (PEAP, EAP-TLS, EAPoL) | |
