ExacqVision - IFS02-P07-OIA4 - 2MP Illustra Flex Gen4 PTZ Camera with Edge AI
Product Overview

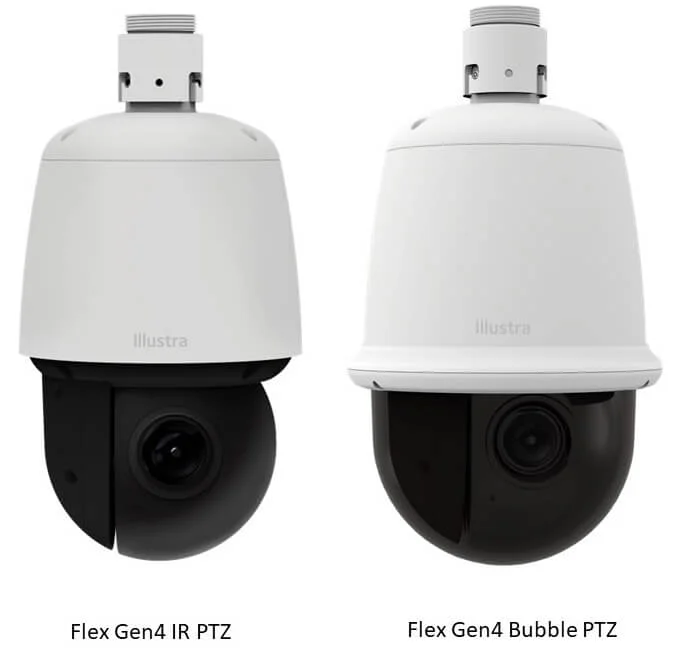

The Exacq IFS02-P07-OIA4 is an Illustra Flex Gen4 2MP PTZ camera with edge AI, True Day/Night with IR, True Wide Dynamic Range (TWDR), and IP66/IK10 outdoor rating. Featuring 30x optical and digital zoom, 360° coverage with auto-tracking capabilities, and built-in deep learning AI for event alerts, forensic search, and metadata generation. Available in 2MP and 5MP models, with Intellizip, SmartWDR, Smart Defog, and built-in IR illuminators up to 656 ft (200m).
Key Configuration
- • Resolution: 2MP (2MP and 5MP models available)
- • Zoom: 30x optical and digital zoom capabilities
- • Coverage: 360° field of view with auto-tracking
- • IR illumination: built-in, up to 656 ft (200m)
- • Protection ratings: IP66, IK10 (outdoor rated)
Key Features
It features deep learning AI for precise object subclassification and attribute identification, significantly reducing false alarms. It ensures secure surveillance via end-to-end data encryption and is fully interoperable with major VMS platforms, including Exacq and American Dynamics. Equipped with Intellizip, SmartWDR, and Smart Defog, it maintains superior image quality in low-light and adverse weather while minimizing bandwidth. This NDAA/TAA-compliant camera conforms to ONVIF Profiles S, G, and M and is backed by a 5-year warranty.
Technical Context
Remote control over camera's field of view (FOV). Total 360-degree coverage capability. Designed to push boundaries of image quality at low bandwidth. Built for surveillance and security with focus on important details from miles away or close-up.
Installation Notes
Outdoor rated with IP66 and IK10 certifications. Built-in IR illuminators provide night vision up to 656 ft (200m). Fully interoperable with American Dynamics and Exacq VMS platforms. NDAA and TAA compliant for federal and government projects.
Operational | 2MP | 5MP |
| Camera | ||
| Image Sensor | Sony 1/2.8” Progressive Scan CMOS imager | Sony 1/2.8” Progressive Scan CMOS imager |
| Lens | 4.5 mm – 135 mm, MFZ, P-iris F/1.4(W) – F/4.4(T) | 5.2 - 156mm, MFZ, P-iris F/1.3(W) – F/4.8(T) |
One touch auto focus, man ual, and automatic focus with zoom | ||
| Field of View (FoV) | H: 59.8° - 2.34° V: 40.5° - 1.48° | H: 58.1° - 2.34° V: 40.5° - 1.48° |
| Day/Night | True Day/ Night CF removal | |
| Minimum Illumination | Color: 0.01 lux, B/W: 0.007 lux IR on: 0 lux | Color: 0.06 lux, B/W: 0.02 lux IR on: 0 lux |
Color: 0.02 lux, B/W: 0.01 lux | Color: 0.1 lux, B/W: 0.02 lux | |
| Electronic Shutter Control | Automatic, Man ual (1/4 to 1/32000 sec) | |
IR Illumination* *IR models only | 850 nm LED s, Adaptive/Smart IR Outdoor : 200 m (656 ft ) Indoor : 50 m (164 ft ) | |
| Memory | 1024 MB R AM, 4096 MB Flash | |
| Pan/Tilt/Zoom | Pan: 360° continuo us endless, 0.04° - 300°/s Tilt: 210°, 0.04° - 18 0 °/s (indoor/outdoor with IR ) Tilt: 180°, 0.04° - 180 °/s (indoor with bubble ) Zoom: 30x optical, 12 x digital, total 360x zoom Auto flip, 300 presets, 96 sequences, 16 program mable pattern, Apple peel, adjustable zoom speed, home position (Preset, Pattern, Seq uence, or Scan after no PTZ activity) | |
| Bandwidth Management | IntelliZi p Smart Codec | |
| Video Compression | H.264 /H.265/MJPEG H.264 IntelliZ ip / H.265 IntelliZip | |
| Bitrate Control | CBR/VBR/C VBR (configurable) | |
| Max Resolution (HxV) & Aspect Ratio | 16:9: 1920 x 1080 to 480x272 Stream2 supports 1080p, default 720p | 4:3: 2560 x 1920 to 480x272 Stream1 default 16:9: 2560 x 1440 (4MP) Stream2 supports 1080p, default 720p |
| Max Frame Rate (60 Hz/50 Hz) | 2MP: 60/50 fps | 2MP: 60/50 fps 5 MP: 30/25 fps |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams (per sensor) | |
| Dynamic Range | True multi shutter WDR up to 120dB Off, SmartWDR, TWDR, TWDR 3x | |
| SmartDefog | Supported | |
| Picture Settings | Auto Exposure: Multiple Profiles (incl Auto, Gaming, LPR), Multiple ROI (incl AI ROI: Object, Person), Gain Control (Auto, Max, Manual), Flickerless, White Balance (Auto Normal, Auto Wide, Manual), text overlay | |
| Privacy Zones | 10 user definable rectangular zones | |
| Image Stabilization | Electronic Image stabilization (EIS) by using gyro sensor | |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction Person Clothing Color (Upper, Lower), Vehicle Color | |
| AI Tamper Detection | Blackout, Whiteout, Scene Change (FoV tamper) | |
| AI Blur Detection | Supported | |
| AI Metadata | Supported | |
| Motion Detection Zones | Yes (Single Full screen Zone) | |
| Intelligent Guard (Auto Tracking) | Person Tracking | |
| Network | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing | |
| Cyber security | ISASecure ISA/IEC 62443-4-1 certified secure development Secure boot Signed and encrypted firmware | |
| Authentication and Security | TLS, HTTPS (HTTP over TLS), WS-Security, Certificate Management, Multi-level password protection, IP address filtering, HTTPS encryption, Enhanced Security (One-Click Security Hardening), User Access Log, Validate Complex Credentials, Disabling Unused Protocols, IEEE 802.1x (PEAP, EAP-TLS, EAPoL) | |
| Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS | |
| Network management | SNMPv1/v2c/v3(MIB-2) | |
| Simultaneous users | 10 users | |
| Application Programming Interface | ONVIF Profile S, G, T, M conformant Illustra iAPI via Connected partner program | |
| Event Triggers | Motion Detection, Tamper & Blur Detection, AI Object classification, Alarm Input, Network Loss, Periodic Event, Temperature | |
| Event Actions | Record to SD card, Snapshot, SMTP e-mail file transfer, FTP file transfer, CIFS, Auxiliary output, Audio clip playback, SIP Call | |
| Audio compression | G.711 μ-law | G.711 μ-law |
| Audio Input/Output | Bi-directional, 1x Line input and 1x Line output | |
| External I/O Terminals | 2 x Alarm In and 2x Alarm Out | |
| Onboard Storage | microSDXC slot, Class 10 or better, upto 1TB supported (Card not included. Pre event / Post event 1- 10 sec Encrypted storage and streaming TrickleStor offline recording and backfilling | |
| Wireless configuration | Micro USB via optional USB Wi-Fi Dongle IA-KIT-WD-UUA | |
| Power | IEEE 802.3bt PoE++ Type 4 Class 7 | 24VAC | 48VDC PoE/24VAC: 51.6W; 48VDC: 48.5W | |
| 802.3at PoE+ Type 2 Class 4 | 24VAC | 48VDC PoE/24VAC: 25.2W | 48VDC: 22.5W | ||
| 802.3at PoE+ Type 2 Class 4 | 24VAC | 48VDC PoE/24VAC: 18W | 48VDC: 18W | ||
| Dual Power Redundancy | Supported | |
| Operating Temperature | -40°C (-40°F) to +65° C (149°F) (IR off at +60° C/140° F) Start-up temperature: -40°C (-40°F) -20°C (-4°F) to +60° C (140°F) Start-up temperature: -20°C (-4°F) | |
| Humidity | up to 95% RH, Non-Condensing | |
| Casing | IP66, NEMA 4x and IK10 rated Housing: Aluminum alloy Dome: Polycarbonate (applicable to Indoor with bubble only) Color: Signal White Pantone RAL 9003 | |
| Physical dimensions | Ø190 x 336mm (Ø7.48 x 13.23 in) Ø212 x 344mm (Ø8.35 x 13.54 in) | |
| Weight | Net 5.8 kg (12.79 lbs), Gross 7.5 kg (16.53 lbs) Net 5.1 kg (11.24 lbs), Gross 7.5 kg (14.99 lbs) Net 6.6 kg (12.79 lbs), Gross 7.5 kg (18.30 lbs) | |
| EMC | BS/EN 55032 Class A, FCC Part 15 Class A; EN55032 Class A; AS/NZS CISPR 32 Class A; ICES-003/NMB-003 Class A, IEC/BS/EN 61000-3-2, BS/EN 61000-3-3, BS/EN 50130-4, IEC 61000-4-2/3/4/5/6/11 | |
| Safety | CAN/CSA C22.2, BS/EN 62368-1, UL 62368-1, AS/NZS 62368-1, J62368-1, CEI EN 62368-1, EN50121-4, EN60950-1, UL60950-1, IEC 60950-1, CSA 22.2 No. 60950 | |
| Environmental | NEMA 250 Type 4X, IEC 62262 (IK10), IEC 60529 (IP66), EU RoHS (2011/65/EU), EU Reach (EC 1907/2006), EU POP compliance, Calif Prop 65, WEEE, MSDS | |
| Web Browsers | Microsoft Edge, Firefox, Safari, Chrome | |
| Language | Arabic, Chinese (Simplified), Chinese (Traditional), Czech, Danish, English (default), French, German, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Russian, Spanish, Swedish, Turkish | |
| NDAA Compliant | Yes | |
| TAA Compliant | Yes | |
| Warranty | 5 Years | |
