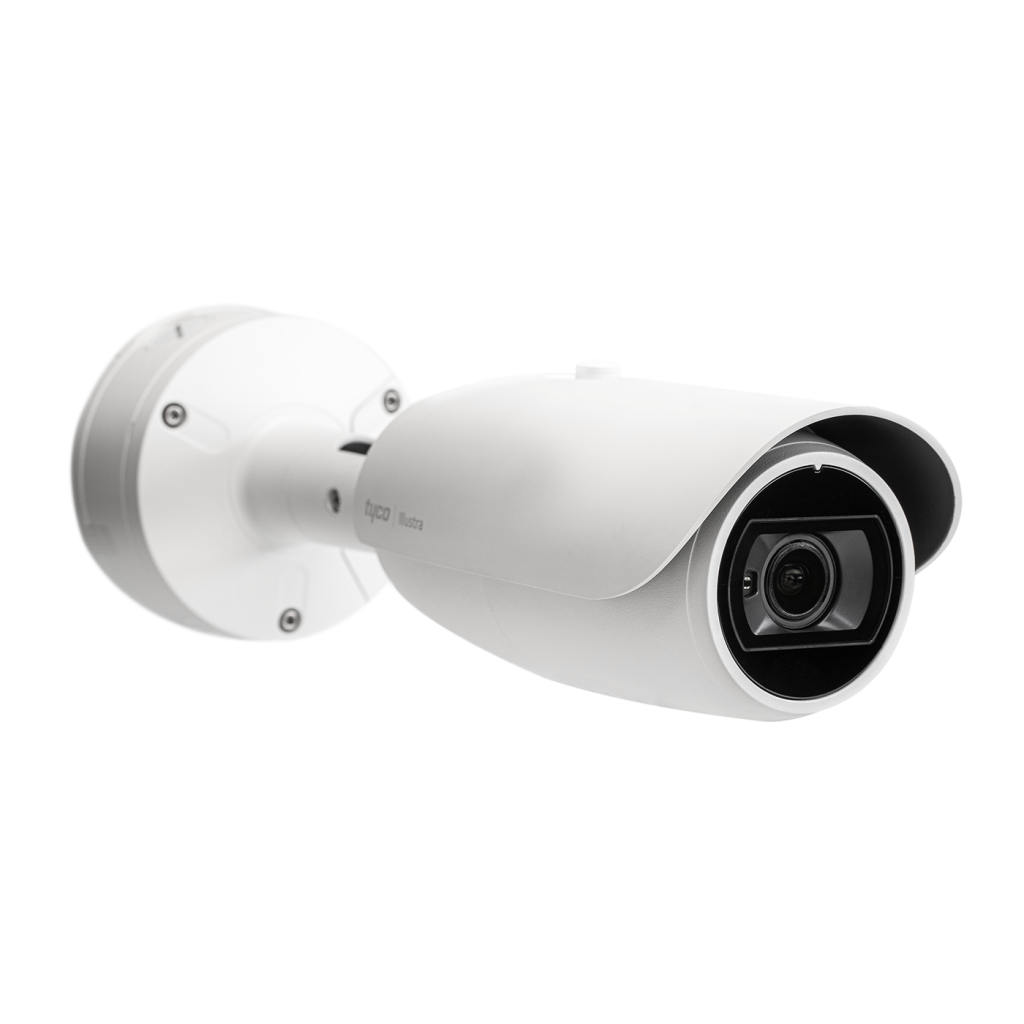

The powerful Illustra Flex Gen3 3MP Bullet Camera is designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Featuring a tough enclosure, the Flex Bullet Camera is ideal for exterior applications of small to medium size offices, retail boutiques, schools, and small bank branches looking for a rugged camera that can withstand harsh environments.
Features :
Camera Features | Flex Gen3 3MP Bullet |
Audio | Yes, utilising cable accessory |
Alarm Input/Output | One In/One Out, utilising cable accessory |
Corridor Mode | Yes, Mirror & Flip |
Day/Night | Auto Low/ Auto Mid(Default)/ Auto High/ Manual/ Forced Color/ Force B&W |
Digital Noise Reduction | 2D&3DNR |
Dimensions | 91 x 352.5 mm (3.58 x 13.88 in) with back box (120 mm, 4.72 in) & without shieldsun |
Environment Rating | IP67 |
Ethernet | RJ-45(10/100BASE-T) |
Field of View | Wide Angle: 94.7º/68.7º Telephoto: 29.34°/22° |
Focal Length | 3.2 ~ 10mm |
Focus | Motorized varifocal, P-Iris |
Focus Control | Simple focus, (software controls: one-touch AF and manual control) |
Gain Control | Automatic & Manual (3dB increments) |
H.264 | Yes |
H.265 | Yes |
Horizontal FOV | 125.21° |
Housing Color | White |
Imager | 1/2.8” 3.21MP CMOS |
IntelliZip | Yes |
IR | Adaptive IR |
IR Distance | Up to 40m |
Lens Type | Varifocal |
Max Frame Rate | 60fps @ 2MP |
Minimum Illumination | Color: min 0.05 lux (1/30sec, 30IRE) BW: 0.005Lux |
MJPEG | Yes |
Motion Detection | Yes, 3 Zones |
Onboard Storage | Micro SD/SDHC/SDXC 1slot 512GB |
ONVIF Compliant | Profile S |
Operating Temperature | -40ºF to 122ºF (-40ºC to 50ºC) Up to 5 concurrent hours at 60°C |
Outdoor Rating | IP67 |
Power Draw | 24 VAC: Max 14.0W PoE: Max 12.95W |
Power Input | 24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1) |
Privacy Zones | 9 |
Resolution Options | 2048x1536/ 1920x1080/ 1664x936/1280x720/ 1024x576/ 640x480/ 640x360/480x360/ 384x288 |
Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP |
Vandal-Resistant | IK10 |
Video Streams | 3 |
Weight | 1.75kg (3.86lbs) |
White Balance | Automatic Wide, Automatic Normal (Default), Manual |
Wide Dynamic Range | True WDR 140db Technologies |
