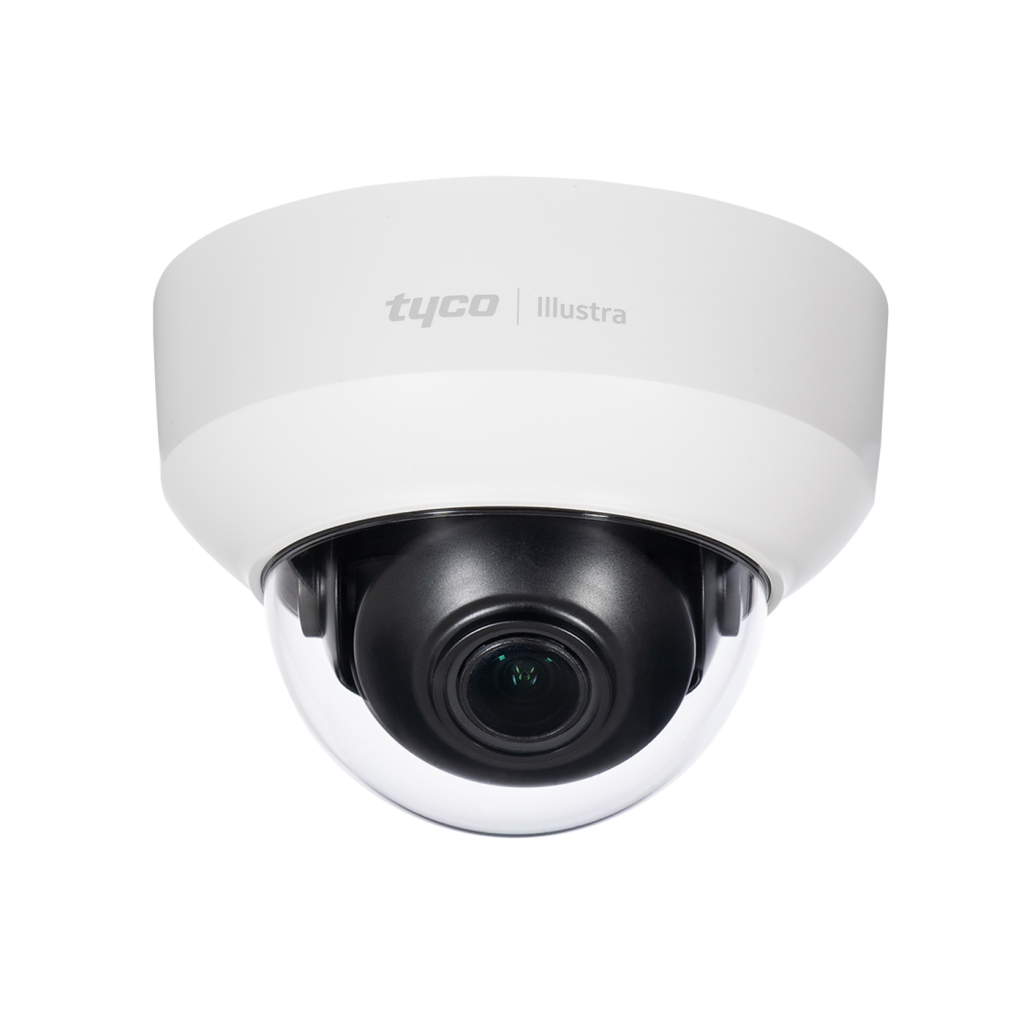

ExacqVision - IFS03-D21-AT03 - Illustra Flex G3 3MP MiniDome, 3.2-10mm, Indoor, Smoked, White, IK08, TDN, WDR
Part number:
IFS03-D21-AT03
Price:
Efficiently manage bandwidth resources while streaming high-quality video. The versatile Illustra Flex Indoor Mini-Dome is a True Day/Night camera that provides 3MP resolution for high-quality images in indoor environments. The P-Iris lens delivers clear video in changing light.
Features :
- Easy to install with engineer friendly accessories and WiFi configuration
- Built-in tamper detection for scene change, lens obscuration or blinding light.
- Increased IR Distance across the range
- High speed detection with 60FPS in 2MP resolution
- 3MP resolution provides true HD quality images with video analytics along with improved WDR
- VideoEdge TrickleStor technology for edge-based failover redundancy
- Day/Night functionality allows quality video recording in low light conditions
- Illustra IntelliZip offers powerful video compression technology for bandwidth management
- Included in the Johnson Controls Cyber Solutions Product Security Program
- As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Flex Gen3 3MP Indoor Mini-Dome |
| Audio | Yes, utilising cable accessory |
| Alarm Input/Output | One Out/One In, utilising cable accessory |
| Corridor Mode | Yes, Mirror & Flip |
| Day/Night | Auto Low/ Auto Mid(Default)/ Auto High/ Manual/ Forced Color/ Force B&W |
| Digital Noise Reduction | 2D&3DNR |
| Dimensions | 132 x 98 mm (5.20 x 3.86 in) |
| Ethernet | RJ-45(10/100BASE-T) |
| Field of View | Wide Angle: 94.7°/68.7° Telephoto: 29.34°/22° |
| Focal Length | 3.2 ~ 10mm |
| Focus | Motorized varifocal, P-Iris |
| Focus Control | Simple focus, (software controls: one-touch AF and manual control) |
| Gain Control | Automatic & Manual (3dB increments) |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | 1/2.8” 3.21MP CMOS |
| IntelliZip | Yes |
| Lens Type | Varifocal |
| Max Frame Rate | 60fps @ 2MP |
| Minimum Illumination | Color: min 0.05 lux (1/30sec, 30IRE) BW: 0.005Lux |
| MJPEG | Yes |
| Motion Detection | Yes, 3 Zones |
| Onboard Storage | micro SDXC up to 512GB |
| ONVIF Compliant | Profile S |
| Operating Temperature | -20°C to +50°C (-4°F ~ +122°F) |
| Power Draw | 24 VAC: Max 7.2W PoE: Max 7.0W |
| Power Input | 24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1) |
| Privacy Zones | 9 |
| Resolution Options | 2048x1536/ 1920x1080/ 1664x936/ 1280x720/ 1024x576/ 640x480/ 640x360/ 480x360/ 384x288 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP |
| S/N Ratio | 50db |
| Vandal-Resistant | IK08 |
| Video Streams | 3 |
| Weight | 0.71kg (1.57 lbs) |
| White Balance | Automatic Wide, Automatic Normal (Default), Manual |
| Wide Dynamic Range | True WDR 140db Technologies |
