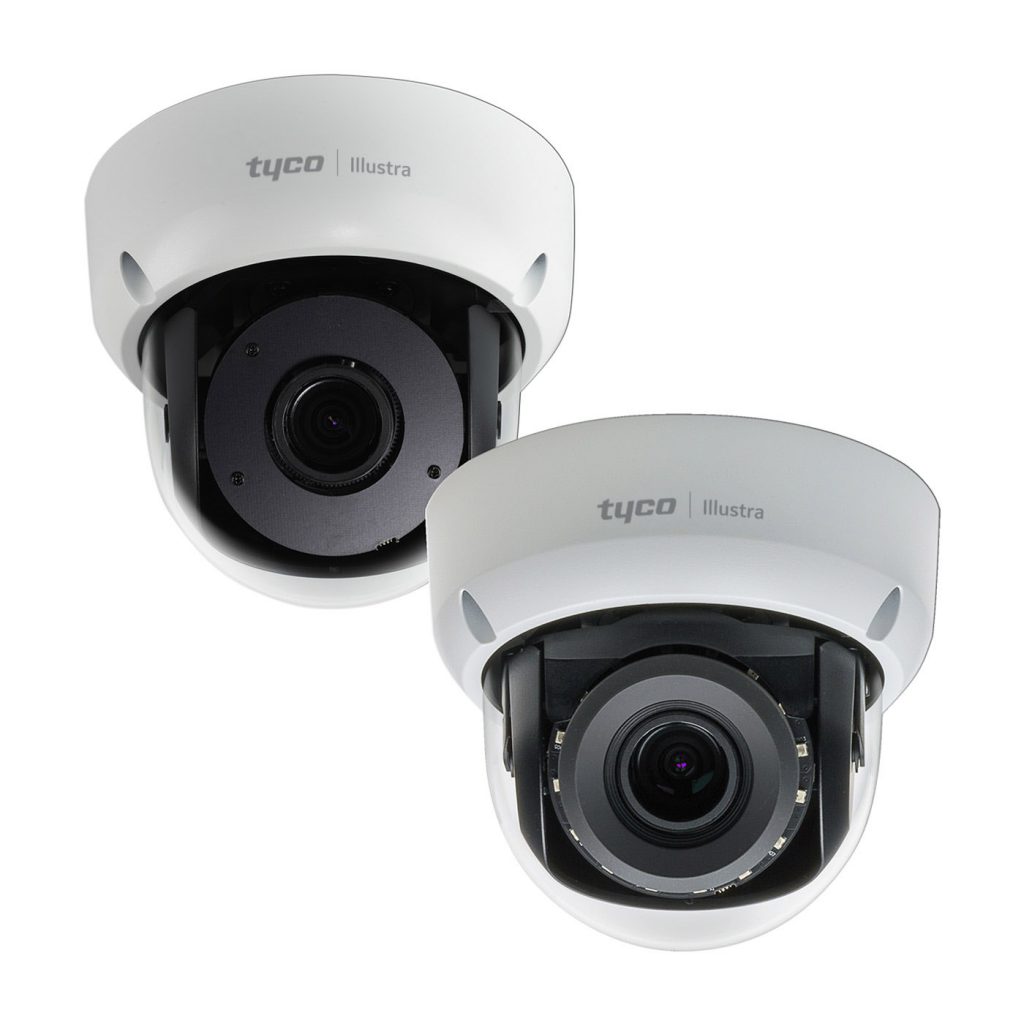

ExacqVision - IFS03D1OCWITA - Illustra Flex 3MP Mini-Dome, 2.8-12mm, Outdoor, Vandal, Clear, White, TDN with IR, TWDR
Efficiently manage bandwidth resources while streaming high-quality video
The versatile Illustra Flex Mini-Dome is a True Day/Night camera that provides 3MP resolution for high-quality images in both indoor and outdoor environments. The P-Iris lens delivers clear video in changing light. Also, the outdoor Flex Mini-Dome features built-in IR illuminators to produce clear images at an effective distance in a variety of low light conditions.
Part number:
IFS03D1OCWITA
Price:
- IK10-rated vandal resistance and IP68-rated for protection against dust and water damage
- IR illumination for clear images in low light conditions on outdoor model
- IntelliZip powerful video compression for bandwidth management
- TrickleStor provides edge-based failover redundancy
- P-iris for image clarity in changing light conditions
- Motion detection for instant intruder alerts
- Gated, analyzed, tested and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program
- As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Flex 3MP Mini-Domes |
| Audio | 1/1 |
| Alarm Input/Output | 1/1 |
| Day/Night | True D/N with ICR |
| Dimensions | Ø4.8 x 4.2 in (Ø123 x 107 mm) |
| Environment Rating | Indoor and Outdoor models available |
| Ethernet | IEEE 802.3, 10/100Base-T Ethernet, Female RJ45, Auto-Negotiation |
| Field of View | Wide Angle: 98º/71º Telephoto: 35º/26º |
| Focal Length | 2.8-12mm |
| Focus | Motorized Varifocal and Focus |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | 1/2.8” CMOS |
| Image Orientation Settings | None, Mirror, Flip, Mirror and flip |
| IntelliZip | Yes |
| IR Distance | Up to 30m |
| Lens Type | Varifocal |
| Max Frame Rate | 3MP @ 30ips, 2MP @ 60ips |
| MJPEG | Yes |
| Motion Detection | Yes, 3 Zones |
| Onboard Storage | Micro SDXC Up To 128GB |
| ONVIF Compliant | ONVIF profile S |
| Operating Temperature | Indoor Models: 4°F to 122°F (-20°C to 50°C) | Outdoor Models: -58°F to 122°F (-50°C to 50°C) | Extended Temperature on Outdoor Model: 140°F (60°C) for 5 hrs a day with IR illuminators OFF |
| Outdoor Rating | IP66 and IP67 |
| Power Draw | 6W (Indoor Models) | 12W (Outdoor Models) |
| Power Input | Indoor: 24VAC, PoE IEEE 802.3af class 2 Outdoor: 24VAC, PoE IEEE 802.3af class 3 |
| Resolution Options | 3MP, 2MP, 1MP,2048x1536 (QXGA) 4:3, 1920x1080 (1080p) 16:9, 1664x936 16:9, 1280x720 (720p) 16:9, 1024x576 (PAL+) 16:9, 640x360 (nHD) 16:9, 480x360 (480) 16:9, 384x288 4:3 |
| Shutter Speed | 1/4 - 1/10,000 sec |
| Simultaneous Users | 5 |
| Vandal-Resistant | IK10 |
| Video Streams | 3 |
| Weight | 2.14lbs (0.97kg) |
