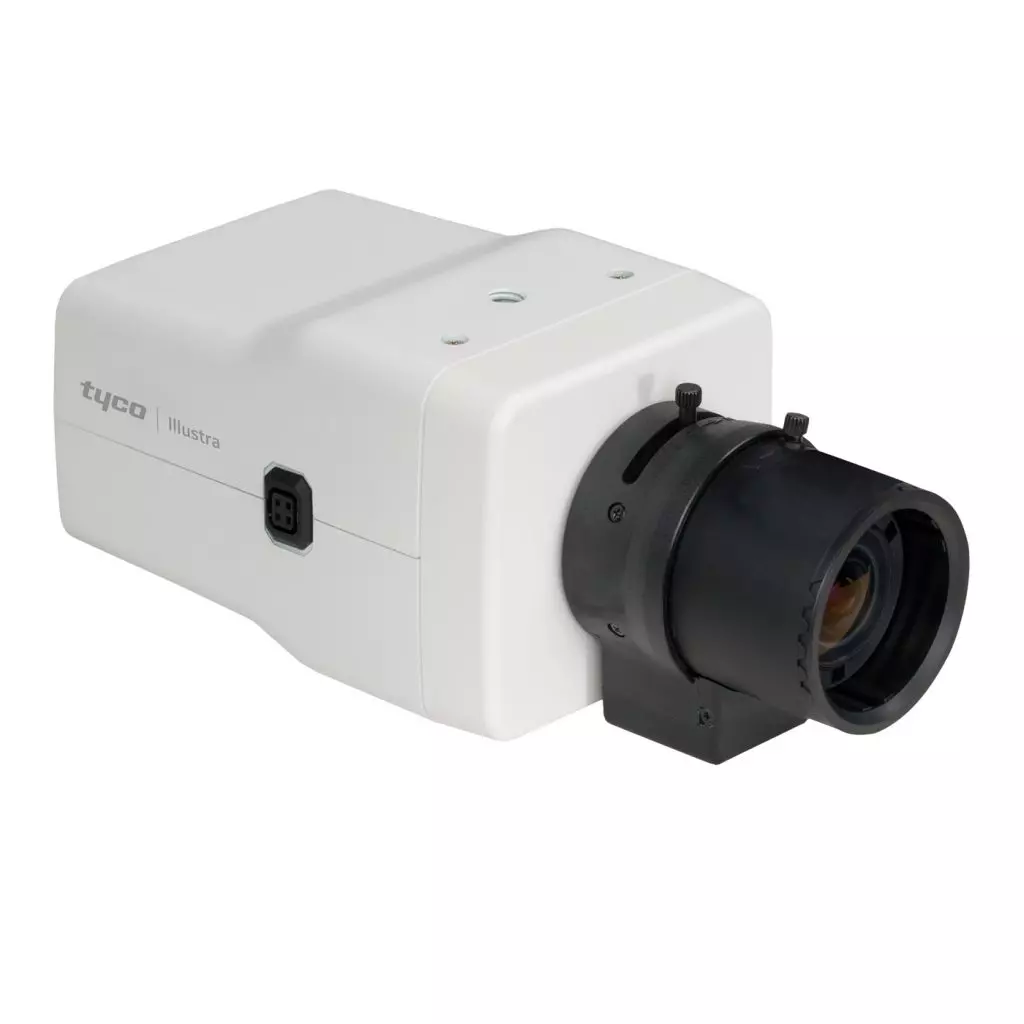

ExacqVision - IFS03XNANWTT - Illustra Flex 3MP Box, no lens, indoor, non-vandal, white, TDN, TWDR
Part number:
IFS03XNANWTT
Price:

Efficiently manage bandwidth resources while streaming high-quality video

The affordable Illustra Flex Box Camera is a True Day/Night network camera that provides 3MP resolution for high-quality images. Because of its compact design and affordable price, this camera is best suited for small to medium size offices, retail boutiques, schools, and bank branches looking for a cost-effective camera. Strategically placed, these inconspicuous cameras offer high security without attracting unwanted attention.



Features :

  • 3MP resolution for high-resolution video streaming and recording
  • P-Iris for image clarity in changing light conditions
  • VideoEdge TrickleStor technology for edge-based failover redundancy
  • Illustra IntelliZip offers powerful video compression technology for bandwidth management
  • True Day/Night functionality for quality video recording in low light conditions
  • True Wide Dynamic Range balances challenging lighting conditions
  • Motion detection for instant intruder alerts
  • Ideal for a variety of indoor commercial environments
  • ONVIF Profile S conformant for simplified video streaming integrations
  • Adheres to the Johnson Controls Cyber Solutions Product Security Program
  • As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera FeaturesFlex 3MP Box Camera
Day/NightTrue D/N with ICR
Environment RatingIndoor
Field of ViewNA
Focal LengthAuto Back Focus
FocusNA
H.264Yes
H.265Yes
Housing ColorWhite
Imager1/2.8” CMOS
IntelliZipYes
Lens TypeVarifocal
Max Frame Rate3MP @ 30ips, 2MP @ 60ips
MJPEGYes
Motion DetectionYes, 3 Zones
Onboard StorageMicro SDXC Up To 128GB
ONVIF CompliantONVIF profile S
Operating Temperature-4ºF to 122ºF (-20ºC to 50ºC)
Outdoor RatingNA
Power InputPoE IEEE 802.2af class 3, 24VAC
Resolution Options3MP, 2MP, 1MP, 2048x1536 (QXGA) 4:3, 1920x1080 (1080p) 16:9, 1664x936 16:9, 1280x72, (720p) 16:9, 1024x576 (PAL+) 16:9, 640x360 (nHD) 16:9, 480x360 (480) 16:9, 384x288 4:3
Vandal-ResistantNA
Video Streams3
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
CSR Technical Bulletin
0.4mb
File
Encrypted SD-Card Storage Technical Bulletin
0.4mb
File
EU Declaration of Conformity
0mb
File
Exacq Application Note
0.1mb
File
Quick Start Guide
0.7mb
File
Technical Drawings
0.1mb
File
Illustra 3MP Box Technical Bulletin
0.4mb
File
Illustra Flex 3MP 4K Box Telephoto Lens Technical Bulletin
0.4mb
File
A&E Specifications
0.3mb
File
Illustra-HostID-Technical-Bulletin
0.4mb
File
Illustra ONVIF Upgrade Technical Bulletin
0.3mb
File
Release Notes
0.9mb
File
Video Edge Application Note
0.1mb
