ExacqVision - IFS05-D12-OIB4 - 5MP Illustra Flex Gen4 Minidome Camera, 2.7-13.5mm
Product Overview

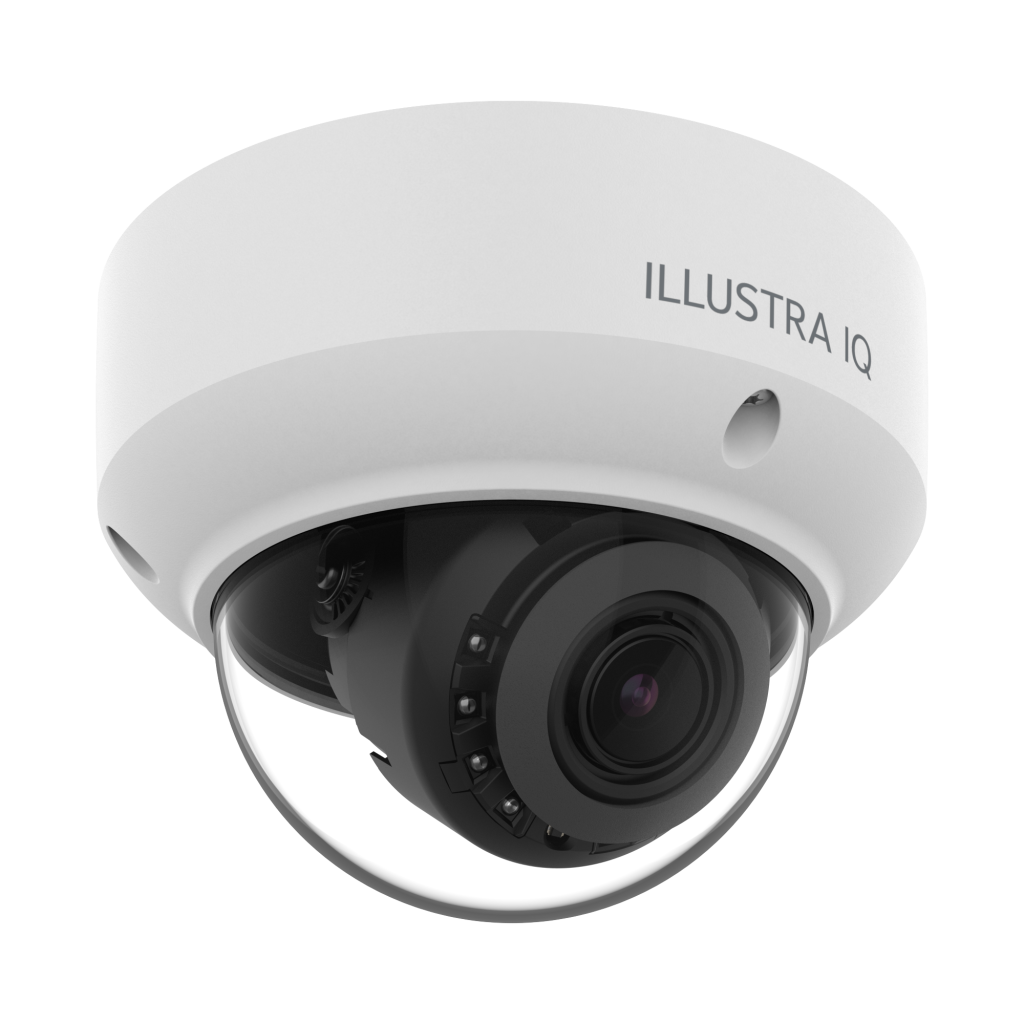

The Exacq IFS05-D12-OIB4 is a 5MP Illustra Flex Gen4 minidome featuring a 2.7-13.5mm motorized varifocal P-iris lens and a Sony CMOS imager for high-detail surveillance at 30 fps. This ruggedized camera (IP67/IK10/NEMA 4x) includes the Flex AI suite for advanced object classification, 141 dB True WDR, and 50m Smart IR, alongside specialized features like gyro-based electronic image stabilization, two-way audio, and 1TB onboard storage support.
Key Configuration
- • Imager: 5MP Sony 1/2.8" progressive scan CMOS; resolution options: up to 2560×1920 at 30/25 fps
- • Lens: 2.7–13.5mm MFZ, P-Iris, F1.31(W)–F2.37(T); one-touch auto focus, manual, and automatic focus with zoom; FOV: 97.57°(W)–31.74°(T) horizontal, 70.26°(W)–23.84°(T) vertical
- • IR illuminator: 850 nm, Smart/Adaptive IR up to 50m (164 ft); minimum illumination: color 0.1 lux, B/W 0.01 lux
- • Power: PoE 802.3af (Class 3) or 24VAC; typical 5.2W (PoE) / 5.4W (24VAC); max 10.4W (PoE) / 10.7W (24VAC)
- • Dimensions: Ø145 × 106.5mm (without mount plate); net weight: 1.01 kg (2.23 lbs)
Key Features
The Flex AI suite is pre-calibrated for advanced object classification (person/vehicle types) and behavior rules like perimeter, crowd, and dwell detection. This camera delivers elite image quality via 141 dB multi-shutter WDR and gyro-based stabilization, supporting triple streaming and specialized corridor modes. Engineered for resilience and security, it includes 1TB encrypted microSD storage with TrickleStor, bi-directional audio, power failover, and full compliance with JCI cyber norms.
Technical Context
This is engineered for extreme environments, featuring an operational temperature range of -50°C to +60°C and an IP67-rated housing in Signal White (RAL 9003). It offers flexible installation with a 3-axis mechanical adjustment and broad network compatibility through ONVIF Profiles S, G, T, and M, plus support for an optional USB Wi-Fi dongle. This highly secure camera integrates advanced protocols like TLS and IEEE 802.1x, ensuring robust performance and seamless connectivity across diverse surveillance infrastructures.
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Sub-Classes (attributes): Person Clothing Color (Upper, Lower), Vehicle Color Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction |
| Audio | Bi-directional, 1x Line input and 1x Line output |
| Alarm Input/Output | 1x Alarm In and 1x Alarm Out |
| Day/Night | True Day/Night CF removal |
| Defog | Supported |
| Dimensions | Ø145x106.5mm (Ø5.71 x 4.19 in) (without mount plate) Ø145.3x113.5mm (Ø5.72 x 4.47 in) (with mount plate) |
| Dynamic Range | True multi shutter WDR up to 141 dB Off, TWDR, TWDR 3x, SmartWDR |
| Environment Rating | IEC 60529 IP66, IEC 60529 IP67 IEC 62262 IK10 BS EN IEC 63000 ROHS, REACH, WEEE NEMA 250 Type 4x |
| Ethernet | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing |
| Field of View | 2MP: H: 98.47°(W) – 31.1°(T) V: 51.88°(W) – 17.55°(T) 5MP: H: 97.57°(W) – 31.74°(T) V: 70.26°(W) – 23.84°(T) 8MP: H: 112.1°(W) – 47.5°(T) V: 58.0°(W) – 26.6°(T) |
| H.264 | yes |
| H.265 | yes |
| Housing Color | Signal White Pantone RAL 9003 |
| Imager | 2MP: Sony 1/2.8” Progressive Scan CMOS imager 5MP: Sony 1/2.8” Progressive Scan CMOS imager 8MP: Sony 1/1.8” Progressive Scan CMOS imager |
| Image Stabilization | Electronic image stabilization (EIS) using gyro sensor (coming soon) |
| IR Illuminator | 850 nm, Smart / Adaptive IR, up to 50m (164 ft) |
| Lens Type | 2MP: 2.7 mm – 13.5 mm, MFZ, P-Iris, F1.6(W) – F3.1(T) 5MP: 2.7 mm – 13.5 mm, MFZ, P-Iris , F1.31(W) – F2.37(T) 8MP: 3.6 – 11mm, MFZ, P-iris, F1.3(W) – F2.15(T) One touch auto focus, manual, and automatic focus with zoom |
| Max Frame Rate | 2MP: 60/50 fps 5MP: 30/25 fps 8MP: 15/12.5 fps |
| Minimum Illumination | 2MP: Color: 0.05 lux, B/W: 0.005 lux 5/8MP: Color: 0.1 lux B/W: 0.01 lux |
| MJPEG | yes |
| Motion Detection | 3 zones supported |
| Onboard Storage | microSDXC slot, Class 10 or better, up to 1TB supported (Card not included) Pre event / Post event 1- 10 sec Encrypted storage and streaming TrickleStor offline recording and backfilling |
| Operating Temperature | -50°C (-58°F) to +60° C (140°F) (IR off at +50° C/122° F) Start-up temperature: -40°C (-40°F) Humidity up to 95% RH, Non-Condensing |
| Pan Travel | Pan 350°, Tilt 67°, Rotation 355° |
| Power Draw | 2MP PoE Typ. 0.1A / Max 0.21A Typ. 4.5W / Max 10.0W 24VAC Typ. 0.38A / Max 0.75A Typ. 4.7W / Max 10.3W 5MP PoE Typ. 0.11A / Max 0.22A Typ. 5.2W / Max 10.4W 24VAC Typ. 0.43A / Max 0.78A Typ. 5.4W / Max 10.7W 8MP PoE Typ. 0.12A / Max 0.25A Typ. 5.5W / Max 12.0W 24VAC Typ. 0.45A / Max 0.88A Typ. 5.7W / Max 12.3W |
| Power Input | PoE 802.3af (802.3at Type 1) Class 3 | 24VAC |
| Privacy Zones | 10 user definable rectangular zones |
| Resolution Options | 2MP: 16:9: 1920 x 1080 (2MP) to 480x272 5MP: 4:3: 2560 x 1920 (5MP) to 480x272 8MP: 16:9: 3840 x 2160 (8MP) to 480x272 |
| Simultaneous Users | 10 users |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams |
| Weight | Net 1.01 kg (2.23 lbs.), Gross 1.29 kg (2.84 lbs.) |
| Wi-Fi | Micro USB via optional USB Wi-Fi Dongle IA-KIT-WD-UUA |
