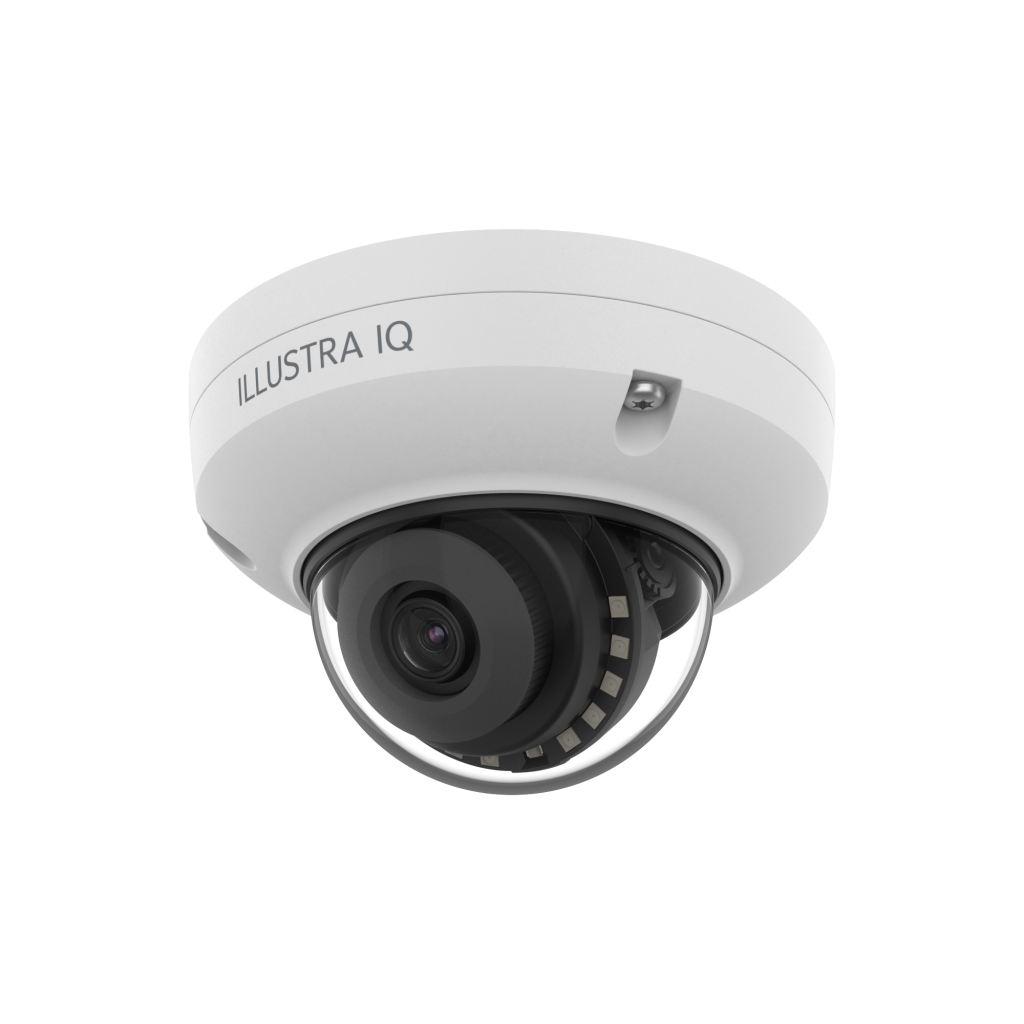

Our state-of-the-art Flex4 Compact Dome redefines surveillance with its deep learning AI and Flex AI suite, ready to deliver exceptional performance straight out of the box. Designed to thrive in any environment, this camera captures outstanding images in challenging conditions, including low light, thanks to adaptive IR technology that reaches up to 20 meters. Its industry-leading wide field-of-view (FoV), combined with corridor and dual HD streaming modes, ensures comprehensive coverage. Smart bandwidth management optimizes network load, while the camera’s all-weather resilience, certified by IP66, IP67, NEMA 4x, and IK10 standards, guarantees reliability. Despite its robust capabilities, the camera boasts a small, discreet design with low power consumption, fitting seamlessly into any setting. Open standard interface and Onvif Profile S, G, T, M conformity ensure easy integration into existing systems. A suite of advanced security features offers unmatched data protection, adhering to JCI cyber norms. This high-performance camera comes with a 5-year warranty, providing peace of mind alongside unparalleled surveillance capabilities.
Camera Features | Flex Gen4 Compact Dome Camera |
AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Sub-Classes (attributes): Person Clothing Color (Upper, Lower), Vehicle Color Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction |
Day/Night | True Day/Night |
Defog | Supported |
Dimensions | Ø112 x 72 mm (Ø4.3 x 2.0 in) |
Dynamic Range | True multi shutter WDR up to 141 dB Off, TWDR, TWDR 3x, SmartWDR |
Environment Rating | IEC 60529 IP66, IEC 60529 IP67 IEC 62262 IK10 BS EN IEC 63000 ROHS, REACH, WEEE NEMA 250 Type 4x |
Ethernet | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing |
Field of View | 2MP: H: 114.1° V: 61.3° 5MP: H: 104.7° V: 76.5° 8MP: H: 109.9° V: 56.7° |
H.264 | yes |
H.265 | yes |
Housing Color | Signal White Pantone RAL 9003 |
Imager | 2MP: Sony 1/2.8” Progressive Scan CMOS imager 5MP: Sony 1/2.8” Progressive Scan CMOS imager 8MP: Sony 1/1.8” Progressive Scan CMOS imager |
IR Illuminator | 850 nm, Smart IR, up to 20m (65.62 ft) |
Lens Type | 2MP: 2.8mm, F2.0, Fixed focus, F1.6(W) – F3.1(T) 5MP: 2.8mm, F2.0, Fixed focus, F1.31(W) – F2.37(T) 8MP: 4.5mm, F1.65, Fixed Focus, F1.3(W) – F2.15(T) |
Max Frame Rate | 2MP: 60/50 fps 5MP: 30/25 fps 8MP: 15/12.5 fps |
Minimum Illumination | Color: 0.1 lux, B/W: 0.01 lux 0 lux with IR |
MJPEG | yes |
Motion Detection | 3 zones supported |
Onboard Storage | microSDXC slot, Class 10 or better, up to 1TB supported (Card not included) Pre event / Post event 1- 10 sec Encrypted storage and streaming TrickleStor offline recording and backfilling |
Operating Temperature | -50°C (-58°F) to +60° C (122°F) (IR off at +50° C/140° F) Start-up temperature: -40°C (-40°F) Humidity up to 95% RH, Non-Condensing |
Pan Travel | Pan 350°, Tilt 67°, Rotation 355° |
Power Draw | 2MP: PoE Typ. 0.1A / Max 0.15A Typ. 4.7W / Max 6.9W 5MP: Typ. 0.11A / Max 0.16A Typ. 5.2W / Max 7.3W 8MP: Typ. 0.12A / Max 0.18A Typ. 5.4W / Max 8.3W |
Power Input | PoE 802.3af (802.3at Type 1) Class 3 |
Privacy Zones | 10 user definable rectangular zones |
Resolution Options | 2MP: 16:9: 1920 x 1080 (2MP) to 480x272 5MP: 4:3: 2560 x 1920 (5MP) to 480x272 8MP: 16:9: 3840 x 2160 (8MP) to 480x272 |
Simultaneous Users | 10 users |
Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS |
Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams |
Weight | Net 0.43 kg (1.06 lbs.), Gross 0.816 kg (1.83 lbs.) |
Wi-Fi | Micro USB via optional USB Wi-Fi Dongle IA-KIT-WD-UUA |
