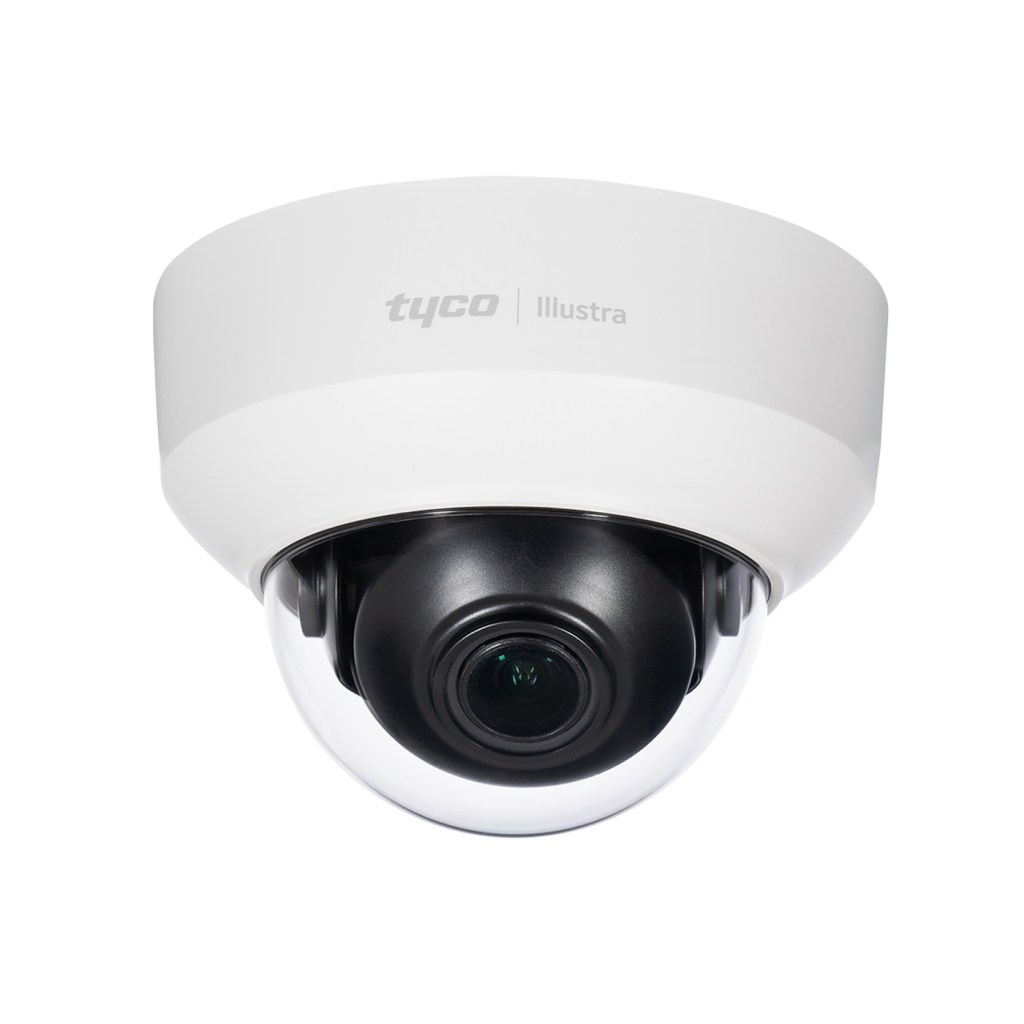

ExacqVision - IFS08-D22-AT03 - Illustra Flex G3 8MP MiniDome, 4.17-9.48mm, Indoor, Smoked, White, IK08, TDN, WDR
Part number:
IFS08-D22-AT03
Price:
Efficiently manage bandwidth resources while streaming high-quality video
The versatile Illustra Flex Indoor Mini-Dome is a True Day/Night camera that provides 4K resolution for high-quality images in indoor environments. The P-Iris lens delivers clear video in changing light.
Features :
- Easy to install with engineer friendly accessories and WiFi configuration
- Built-in tamper detection for scene change, lens obscuration or blinding light.
- Increased IR Distance across the range
- High speed detection with 60FPS in 2MP resolution
- 4K resolution provides true HD quality images with video analytics along with improved WDR
- Equipped with Illustra Video Intelligence Analytics
- VideoEdge TrickleStor technology for edge-based failover redundancy
- Day/Night functionality allows quality video recording in low light conditions
- Illustra IntelliZip offers powerful video compression technology for bandwidth management
- Included in the Johnson Controls Cyber Solutions Product Security Program
- As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Flex Gen3 4K Indoor Mini-Dome |
| Audio | Yes, utilising cable accessory |
| Alarm Input/Output | One Out/One In, utilising cable accessory |
| Corridor Mode | Yes, Mirror & Flip |
| Day/Night | Auto Low/ Auto Mid(Default)/ Auto High/ Manual/ Forced Color/ Force B&W |
| Digital Noise Reduction | 2D&3DNR |
| Dimensions | 132 x 98 mm (5.20 x 3.86 in) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Field of View | Wide Angle: 111.66°/62.53° Telephoto: 46.69°/26.36° |
| Focal Length | 4.17 ~ 9.48mm |
| Focus | Motorized varifocal, P-Iris |
| Focus Control | Simple focus, (software controls: one-touch AF and manual control) |
| Gain Control | Automatic & Manual (3dB increments) |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | 1/1.8” 8.42MP CMOS |
| IntelliZip | Yes |
| Lens Type | Varifocal |
| Max Frame Rate | 60fps @ 2MP |
| Minimum Illumination | Color: min 0.27 lux (1/30sec, 30IRE) BW: 0.027Lux |
| MJPEG | Yes |
| Motion Detection | Yes, 3 Zones |
| Onboard Storage | micro SDXC up to 512GB |
| ONVIF Compliant | Profile S |
| Operating Temperature | -20°C to +50°C (-4°F ~ +122°F) |
| Power Draw | 24 VAC: Max 8.8W PoE: Max 8.6W |
| Power Input | 24 VAC (-20% ~ +30%, 47 ~ 63 Hz), PoE 802.3af (802.3at Type 1) |
| Privacy Zones | 9 |
| Resolution Options | 3840x2160/ 3264x1840/ 2688x1520/ 1920x1080/ 1664x936/ 1280x720/ 1024x576/ 960x544/ 816x464/ 640x360/ 480x272 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP |
| S/N Ratio | 50db |
| Vandal-Resistant | IK08 |
| Video Streams | 3 |
| Weight | 0.71kg (1.57 lbs) Regulatory Safety |
| White Balance | Automatic Wide, Automatic Normal (Default), Manual |
| Wide Dynamic Range | True WDR 120db Technologies |
Name
Description
Size
Downloads
File
Datasheet
1.5mb
File
AE Specifications
0.4mb
File
FG3 Dome Recess Mount Quick Start Guide
0.4mb
File
FG3 Indoor Dome Quick Start Guide
0.7mb
File
Release Notes
0.9mb
File
Technical Drawings
1mb
