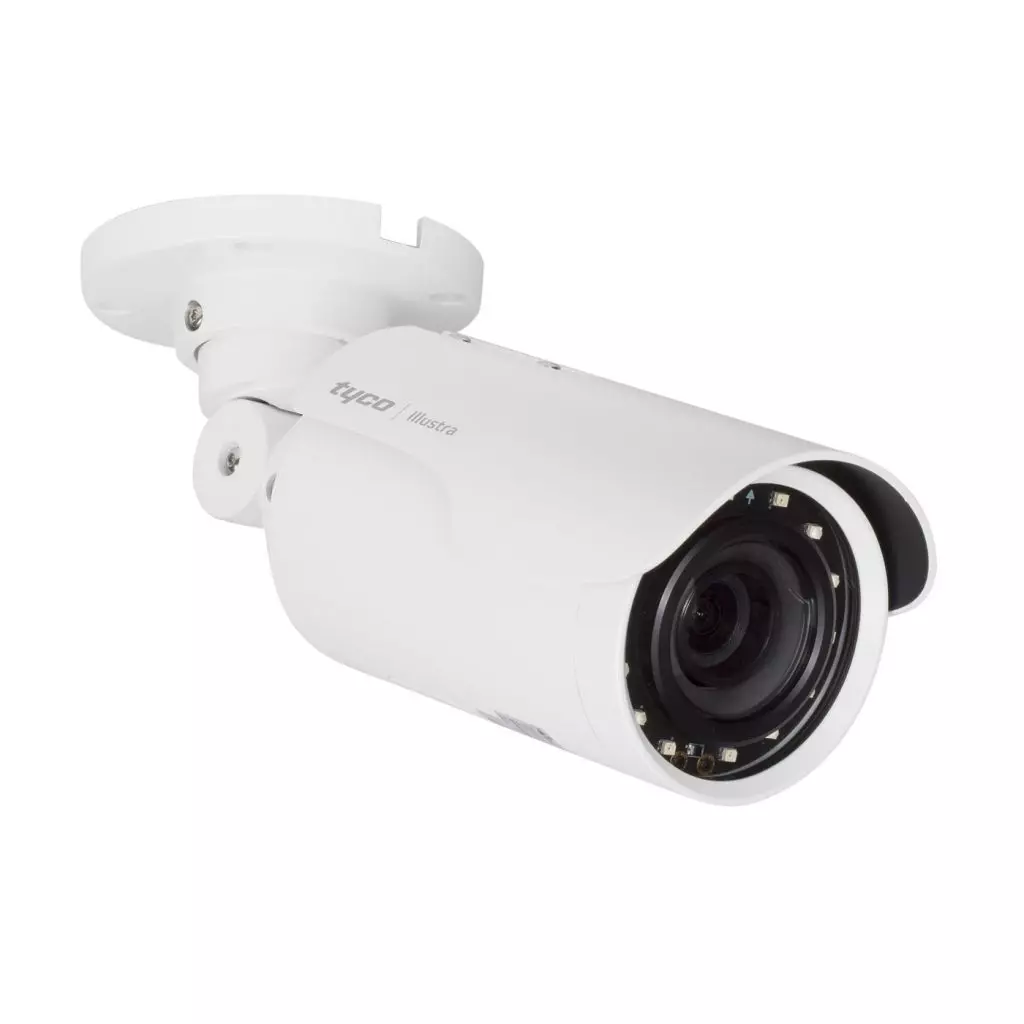

ExacqVision - IFS08B2ONWITB - Illustra Flex 8MP Bullet, 3.4-9mm, Outdoor, Vandal IK10, White, TDN w/IR, TWDR
Part number:
IFS08B2ONWITB
Price:

Gain greater detail and area coverage with 4K resolution. The powerful Illustra Flex 4K Bullet Camera is designed to offer a high-image quality, feature rich surveillance option for a wide range of applications. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Featuring a tough enclosure, the Flex Bullet Camera is ideal for exterior applications of small to medium size offices, retail boutiques, schools, and small bank branches looking for a rugged camera that can withstand harsh environments.



Features :

  • Available in both 3MP and 4K resolution options
  • IK10-rated vandal resistance and IP68-rated for protection against dust and water damage
  • IR illumination for clear images in low light conditions on outdoor model
  • IntelliZip powerful video compression for bandwidth management
  • TrickleStor provides edge-based failover redundancy
  • P-iris for image clarity in changing light conditions
  • Motion detection for instant intruder alerts
  • Gated, analyzed, tested and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program
  • As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera FeaturesFlex 4K Bullet
Alarm Input/Output1/1
Environment RatingIP68
Field of ViewWide Angle: 104º/56º
Telephoto: 42º/24º
Focal Length3.4-9mm
FocusMotorized Varifocal and Focus, P-iris control, IR corrective
H.264Yes
H.265Yes
Housing ColorWhite
Imager1/2.5”
IntelliZipYes
IR DistanceUp to 25m
Lens TypeVarifocal
Max Frame Rate8MP @ 15 ips
MJPEGYes
Motion DetectionYes, 3 Zones
Onboard StorageMicro SDXC Up To 128GB
Operating Temperature-40ºF to 122ºF (-40ºC to 50ºC)
Outdoor RatingOutdoor
Power InputPoE IEEE 802.2af class 3, 24VAC
Resolution Options8MP, 3MP, 2MP, 1MP, 3840x2160 (4K) 16:9, 3264x1840 16:9, 2592x1944 4:3, 2688x1520 16:9, 2048x1536 (QXGA) 4:3, 1920x1080 (1080p) 16:9, 1280x960 (SXGA-) 4:3, 1280x720 (720p) 16:9, 800x600 (SVGA) 4:3, 640x480 (640VGA) 4:3, 640x360 (nHD) 16:9
Vandal-ResistantIK10
Video Streams3
