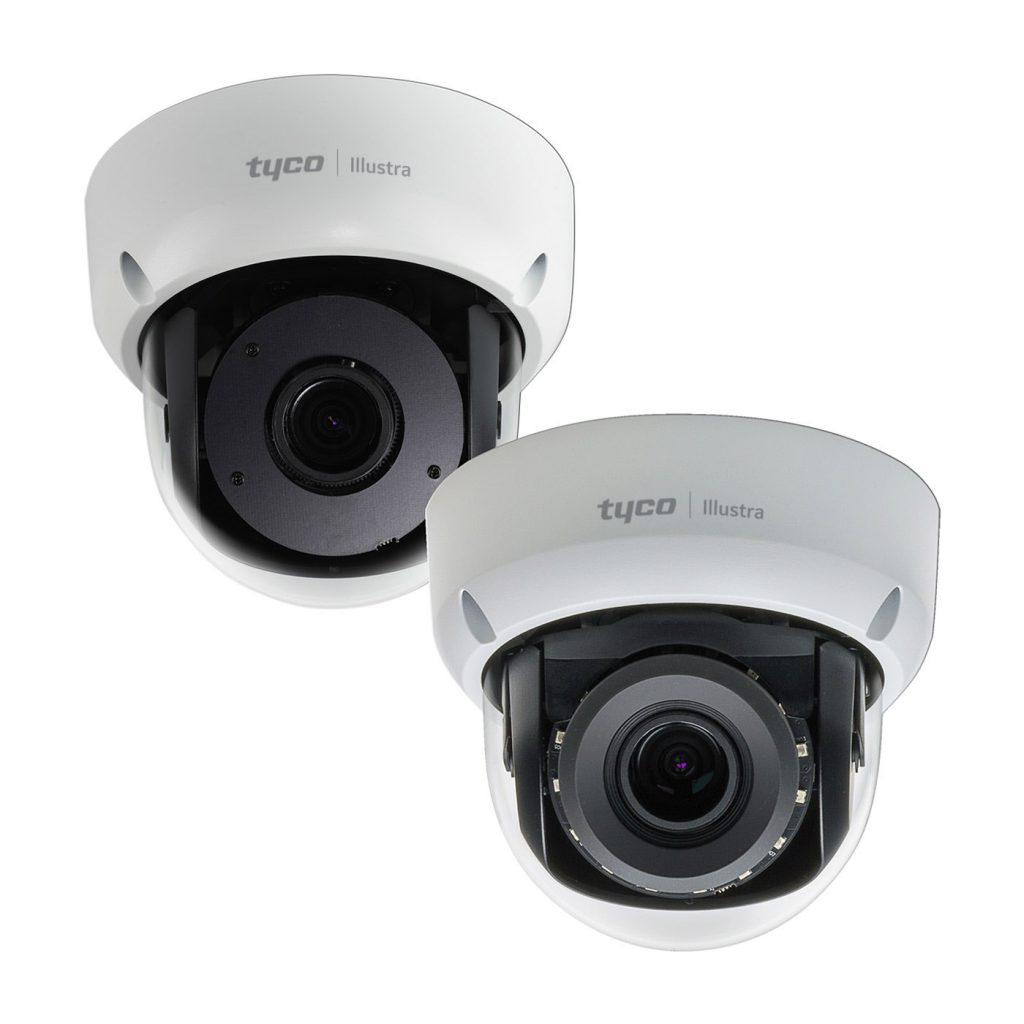

ExacqVision - IFS08D2OCWITB - Illustra Flex 8MP MiniDome, 3.4-9mm, outdoor, Vandal, Clear, White, TDN w/IR, TWDR
Part number:
IFS08D2OCWITB
Price:

The powerful Illustra Flex 4K Mini-Dome cameras are designed to offer a high-image quality, feature rich surveillance option for a wide range of applications both indoors and outdoors. The increased amount of pixels per foot in these models improve image detail in wide areas such as loading docks and airport terminals. Also, the outdoor Flex Mini-Dome features built-in IR illuminators to produce clear images at an effective distance in a variety of low light conditions. Installations that strive for a combination of high-resolution and high-performance at a competitive price point, all while simplifying installation and configuration stand to benefit the most from the Flex 4K Mini-Dome.



Features :

  • IK10-rated vandal resistance and IP68-rated for protection against dust and water damage
  • IR illumination for clear images in low light conditions on outdoor model
  • IntelliZip powerful video compression for bandwidth management
  • TrickleStor provides edge-based failover redundancy
  • P-iris for image clarity in changing light conditions
  • Motion detection for instant intruder alerts
  • Gated, analyzed, tested and required to meet or exceed the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program
  • As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera FeaturesFlex 4K Mini-Dome
Day/NightTrue D/N with ICR
Environment RatingIndoor and Outdoor models available
Field of ViewWide Angle: 104º/56º
Telephoto: 42º/24º
Focal Length3.4-9mm
FocusMotorized Varifocal and Focus
H.264Yes
H.265Yes
Housing ColorWhite
Imager1/2.5” CMOS
IntelliZipYes
IR DistanceUp to 30m
Lens TypeVarifocal
Max Frame Rate8MP @ 15 ips
MJPEGYes
Onboard StorageMicro SDXC Up To 128GB
ONVIF CompliantONVIF profile S
Operating TemperatureIndoor Models: 4°F to 122°F (-20°C to 50°C) | Outdoor Models: -58°F to 122°F (-50°C to 50°C) | Extended Temperature on Outdoor Model: 140°F (60°C) for 5 hrs a day with IR illuminators OFF
Outdoor RatingIP66 and IP67
Power InputIndoor: 24VAC, PoE IEEE 802.3af class 2 Outdoor: 24VAC, PoE IEEE 802.3af class 3
Resolution Options8MP, 3MP, 2MP, 1MP, 3840x2160 (4K) 16:9, 3264x1840 16:9, 2592x1944 4:3, 2688x1520 16:9, 2048x1536 (QXGA) 4:3, 1920x1080 (1080p) 16:9, 1280x960 (SXGA-) 4:3, 1280x720 (720p) 16:9, 800x600 (SVGA) 4:3, 640x480 (640VGA) 4:3, 640x360 (nHD) 16:9
Vandal-ResistantIK10
Video Streams3 Zones
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
AE Specifications
0.3mb
File
CSR Technical Bulletin
0.4mb
File
Encrypted SD-Card Storage Technical Bulletin
0.4mb
File
EU Declaration of Conformity
0mb
File
Exacq Application Note
0.1mb
File
Flex 3MP-8MP Domes Quick Start Guide
2mb
File
Illustra Flex 3MP-8MP Mini Dome Indoor Mount Quick Start Guide
0.2mb
File
Illustra-Flex-Indoor-Outdoor-Dome
0.1mb
File
Illustra Flex Mini Dome Recess Mount
0.1mb
File
Illustra HostID Technical Bulletin
0.4mb
File
Illustra ONVIF Upgrade Technical Bulletin
0.3mb
File
Pro Gen3 Universal Electrical Box Mounting Plate Quick Start Guide
0.3mb
File
Release Notes
0.9mb
File
Video Edge Application Note
0.1mb
