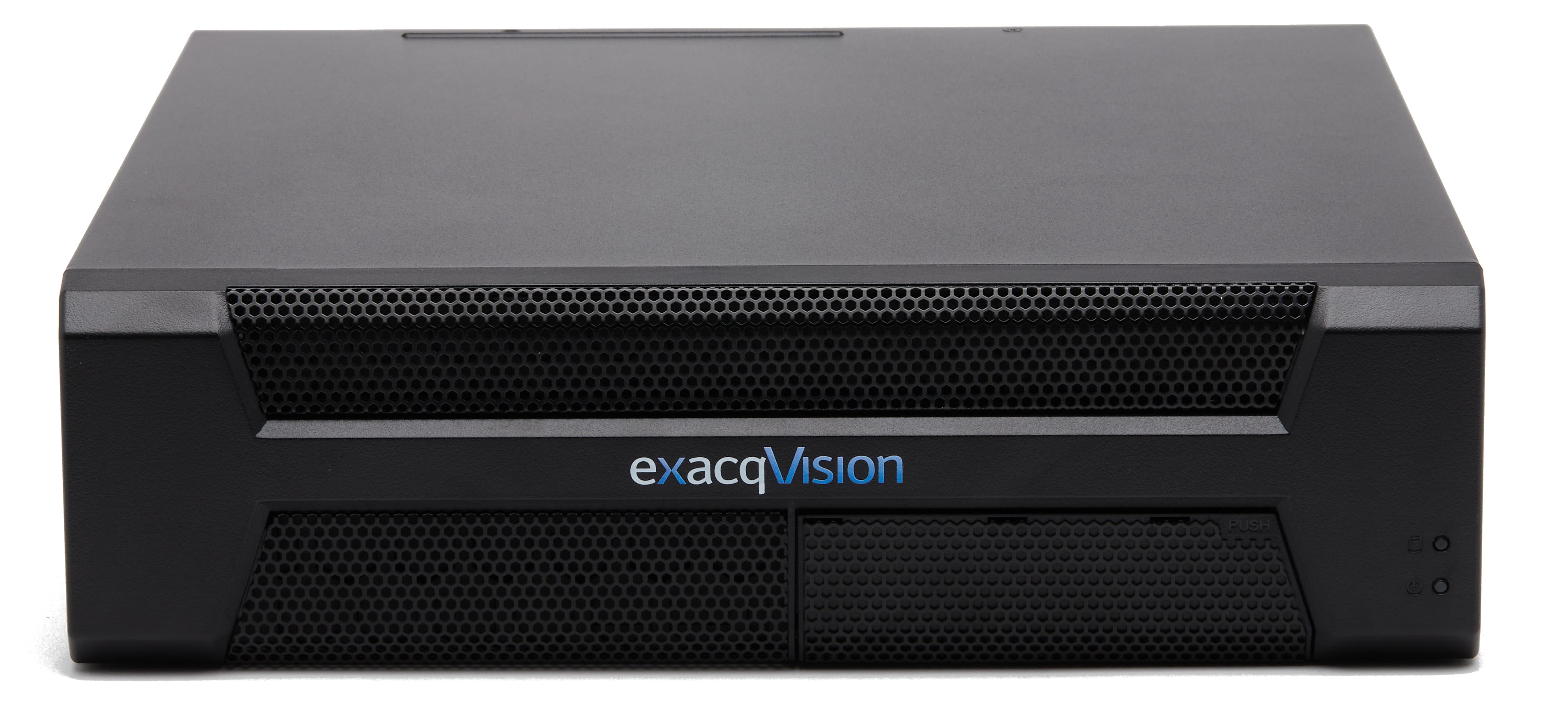

ExacqVision - IP01-04T-1QL-E - NVR with 1 IP Enterprise License 64 Max, 4TB
Part number:
Price:
- • 4TB Internal storage (Single fixed drive)
- • Linux Ubuntu 22.04 LTS OS on a 256GB SSD
- • 8GB RAM (Optimized for local client monitoring performance)
- • Dual 2.5GbE on-board NICs for high-speed network connectivity
- • Triple Monitor Support: 1 x HDMI, 2 x DisplayPort, and 1 x VGA
- • Included accessories: USB Mouse and Keyboard
- • Includes 1 IP Enterprise license (Scalable up to 64 IP cameras)
- • 5-year RMA hardware warranty and Lifetime SSA for VMS software
| IP Compression | |
| IP Compression | H.265/H.264/MJPEG |
| Video Throughput | 350Mbps (Windows) 400Mbps (Linux) |
| Maximum IP Streams | Up to 64 streams (Throughput Dependent) |
| Included Camera Licenses | 1 (Professional or Enterprise), Lifetime SSA included exacqVision Advantage w/Illustra included |
| Alarm Inputs/Outputs | USB I/O Module (sold separately) |
| Server | |
| Form Factor | Desktop |
| Maximum Hard Drives | 2 Fixed Drives |
| Maximum Storage | 48TB |
| Monitor Output | (1) HDMI, (2) Display Ports, (1) VGA |
| Local Client Display Rate | 300 FPS @ 1080p (Windows) 700 FPS @ 1080P (Linux) |
| Operating System | Windows 11 Ubuntu Linux 22.04 |
| Operating System Location | 256Gb, SSD |
| CPU | i3 |
| RAM | 8GB (16GB Optional) |
| NIC | 2 x 2.5 Gbps |
| General | |
| Dimensions | D: 317.5 mm (12.5) W: 330.2 mm (13 in) H: 101.6 mm (4 in) |
| Power | 100W (max) 100-240vac |
| Cooling | (1) Internal Fan |
| Operational Temperature | 40°F - 95°F 4.5°C - 35°C |
| Weight | 4.99 kg (11 lbs) |
| Regulatory | FCC, EMS, CE, cNus, RoHs |
| Warranty | 5-Year |
| Keyboard and Mouse | Included |
