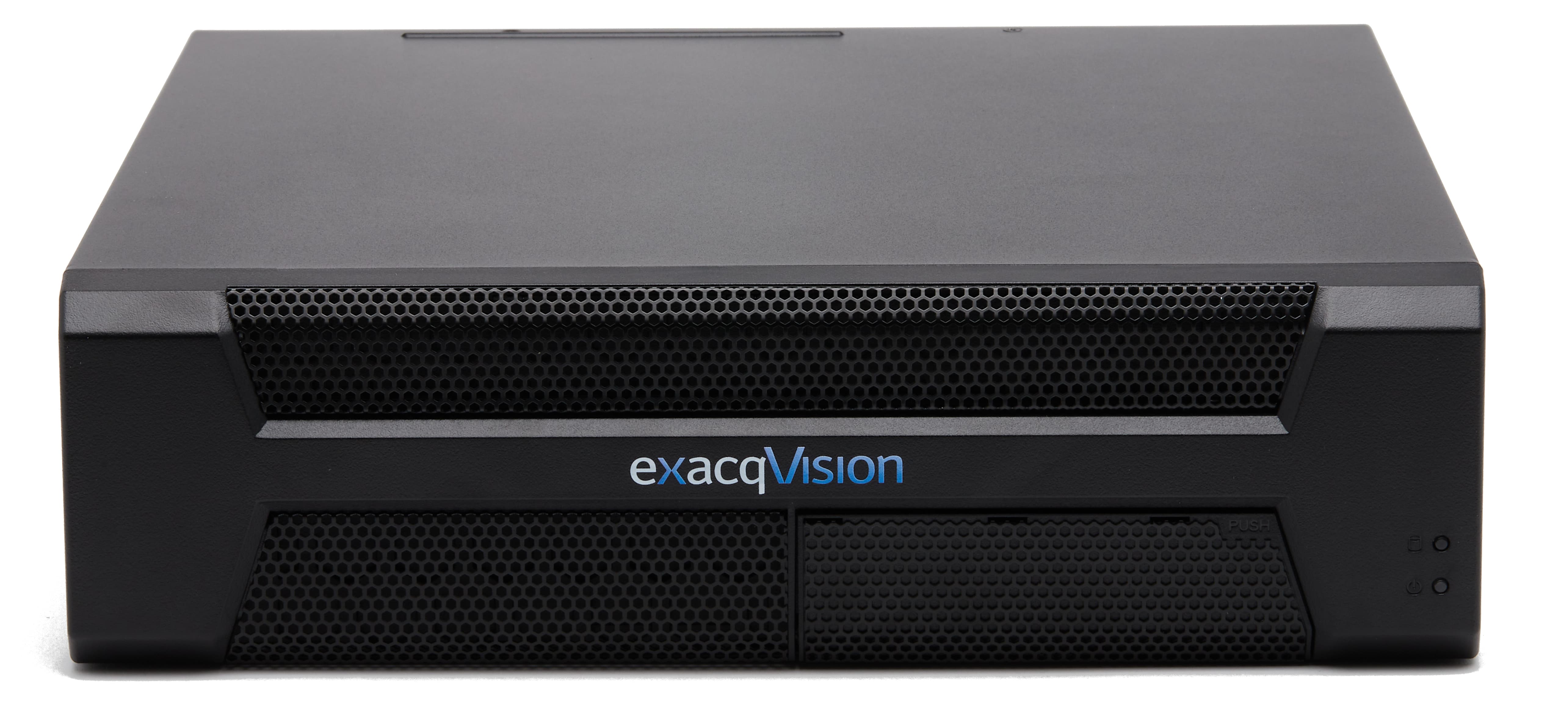

ExacqVision - IP01-04T-1QL - NVR with 1 IP Professional License 64 max, 4TB
Product Overview
The ExacqVision IP01-04T-1QL is a desktop NVR with 4TB internal storage (single fixed drive), Linux Ubuntu 22.04 LTS on a 256GB SSD, 8GB RAM, and dual 2.5GbE onboard NICs. It includes 1 IP Professional license (scalable up to 64 IP cameras) and features triple monitor support (1× HDMI, 2× DisplayPort, 1× VGA). Video throughput is 400 Mbps (Linux) with H.265/H.264/MJPEG compression.
Key Configuration
- • Storage: 4TB internal (single fixed drive); maximum storage: 48TB (2 fixed drives)
- • Operating system: Linux Ubuntu 22.04 LTS on 256GB SSD; CPU: Intel i3; RAM: 8GB (16GB optional)
- • Video throughput: 400 Mbps (Linux); maximum IP streams: up to 64 streams (throughput dependent)
- • Network interfaces: 2 × 2.5 GbE onboard NICs
- • Dimensions: 13"W × 12.5"D × 4"H (330.2 × 317.5 × 101.6 mm); weight: 11 lbs (4.99 kg)
Key Features
The NVR is designed for mission-critical surveillance environments. It combines high-bandwidth local monitoring with a scalable software architecture to meet the demands of modern IP video security.
Technical Context
It features a dedicated 256GB SSD for Linux Ubuntu 22.04, triple monitor support (HDMI/DP/VGA) at 700 FPS, and a scalable 64-channel IP Professional license with a Lifetime SSA. Backed by a 5-year warranty and FCC/CE certifications, this 100W unit includes exacqVision Advantage, Illustra integration, and optional Windows 11 support, ensuring professional-grade reliability and seamless expansion.
Installation Notes
Dimensions: 13" × 12.5" × 4" (330.2 × 317.5 × 101.6 mm). Weight: 11 lbs (4.99 kg). Operational temperature range: 40°F to 95°F (4.5°C to 35°C). Desktop placement. Keyboard and mouse included. 5-year warranty.
| IP Compression | |
| IP Compression | H.265/H.264/MJPEG |
| Video Throughput | 350Mbps (Windows) 400Mbps (Linux) |
| Maximum IP Streams | Up to 64 streams (Throughput Dependent) |
| Included Camera Licenses | 1 (Professional or Enterprise), Lifetime SSA included exacqVision Advantage w/Illustra included |
| Alarm Inputs/Outputs | USB I/O Module (sold separately) |
| Server | |
| Form Factor | Desktop |
| Maximum Hard Drives | 2 Fixed Drives |
| Maximum Storage | 48TB |
| Monitor Output | (1) HDMI, (2) Display Ports, (1) VGA |
| Local Client Display Rate | 300 FPS @ 1080p (Windows) 700 FPS @ 1080P (Linux) |
| Operating System | Windows 11 Ubuntu Linux 22.04 |
| Operating System Location | 256Gb, SSD |
| CPU | i3 |
| RAM | 8GB (16GB Optional) |
| NIC | 2 x 2.5 Gbps |
| General | |
| Dimensions | D: 317.5 mm (12.5) W: 330.2 mm (13 in) H: 101.6 mm (4 in) |
| Power | 100W (max) 100-240vac |
| Cooling | (1) Internal Fan |
| Operational Temperature | 40°F - 95°F 4.5°C - 35°C |
| Weight | 4.99 kg (11 lbs) |
| Regulatory | FCC, EMS, CE, cNus, RoHs |
| Warranty | 5-Year |
| Keyboard and Mouse | Included |
