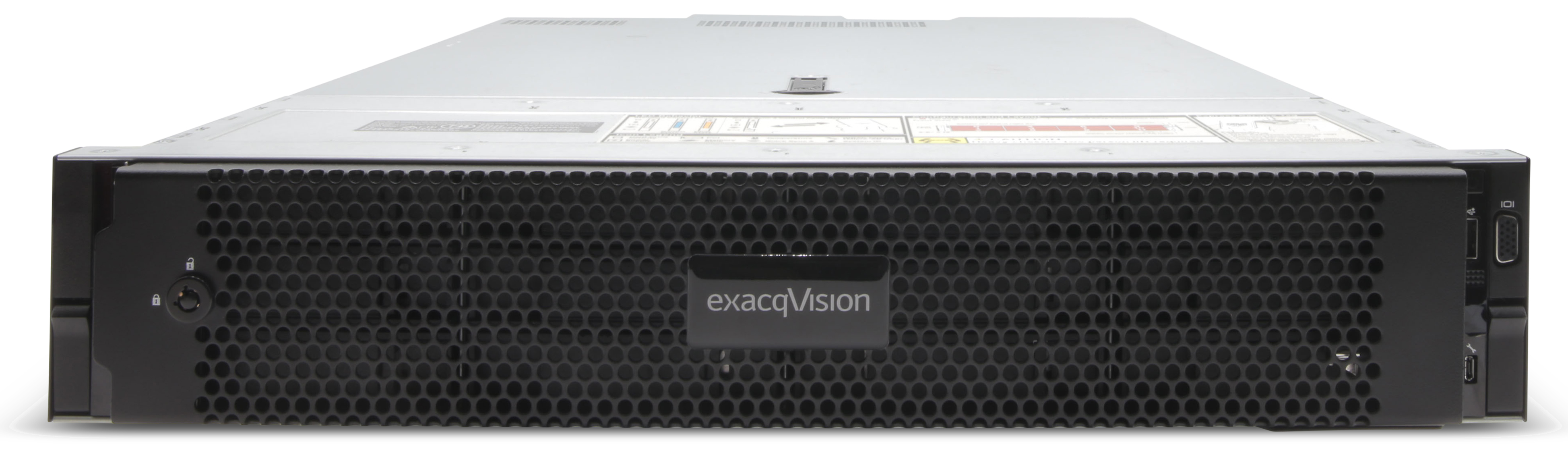

ExacqVision - IP01-192T-R2XW-E - NVR with 1 IP Enterprise Licenses 200 Max, 192TB
Part number:
Price:
- • 192TB RAID6 storage (approx. 160TB usable)
- • Dual SSD RAID1 OS drive for Windows Server 2022
- • iDRAC9 Enterprise for advanced out-of-band remote management and hardware monitoring
- • Redundant Power Supplies for high availability and hardware failover
- • 32GB RAM (Optimized for high-density camera counts and Windows Server overhead)
- • Fiber-ready networking: Dual 1GbE on-board + Dual 10GbE SFP NIC
- • Includes 1 IP Enterprise license (Scalable up to 200 IP cameras)
- • 5-year next business day on-site hardware warranty and Lifetime SSA for VMS software
| Compression | |
| Compression | MJPEG, H.264, H.265 |
| Video Throughput | 825Mbps (Windows) 950Mbps (Linux) |
| Maximum IP Streams | 200 |
| Included Camera Licenses | 1 (Professional or Enterprise), Lifetime SSA included exacqVision Advantage w/Illustra included |
| Alarm Inputs/Outputs | USB I/O Module (sold separately) |
| Server | |
| Form Factor | 2U |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| Maximum Hard Drives | 12 Hot Swappable |
| Maximum Storage | 288TB |
| RAID | RAID 6 |
| Ports | Front: 1 x Micro-AB USB, 1 x USB 2.0, 1 x VGA Rear: 1 x USB 2.0, 1 x Serial, 1 x USB 3.0, 1 x VGA |
| Operating System | Windows Server 2022 Ubuntu Linux 22.04 |
| Operating System Location | 480GB, SSD, RAID 1 |
| CPU | Xeon Silver 4410Y |
| RAM | 2 x 16GB (32GB) |
| NIC | 2 x 1Gbps & 2 x 10Gbps SFP |
| General | |
| Dimensions (D x W x H) | D: 707.78 mm (27.85 in) 721.62 mm (28.4 in) with bezel W: 482.0 mm (18.97 in) H: 86.8 mm (3.41 in) |
| Power | 800W Platinum Power Supply Mixed Mode 100-240Vac or 240Vdc hot swap redundant |
| Cooling | 5 fans with full redundancy |
| Weight | 35.45KG (78.012 lbs) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15; ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) |
| Warranty | 5 Years (Keep your HDDs) |
Name
Description
Size
Downloads
File
Specsheet
0.5mb
File
Brochure
0.4mb
File
A&E Specification
0mb
File
Quick Start Guide
1.1mb
