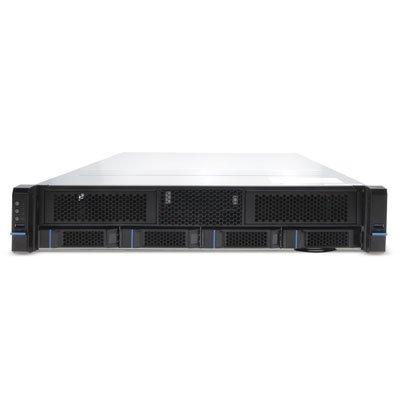

ExacqVision - IP01-48T-2AL-E - NVR with 1 IP Enterprise license 64 max, 48TB
Part number:
Price:
- • 48 TB internal JBOD storage
- • Supports 1 IP Enterprise license (64 max)
- • Linux Ubuntu 22.04 LTS OS on a dedicated SSD
- • High-speed connectivity with Dual 2.5GbE on-board ports
- • Comprehensive video outputs (1 x HDMI, 2 x DP, and 1 x VGA)
- • 5-year RMA hardware warranty with Lifetime SSA for VMS software
- • Complete installation kit including sliding rack rails, mouse, and keyboard
- • 2U Rackmount form factor
| IP Compression | |
| IP Compression | H.265/H.264/MJPEG |
| Video Throughput | 350Mbps (Windows) 400Mbps (Linux) |
| Maximum IP Streams | Up to 64 Streams |
| Included Camera Licenses | 1 (Professional or Enterprise) Lifetime SSA included exacqVision Advantage w/Illustra included |
| Alarm Inputs/Outputs | USB I/O Module (sold separately) |
| Server | |
| Form Factor | Rackmount 2U Server |
| Maximum Hard Drives | 4 Front Loading |
| Maximum Storage | 72TB |
| RAID | N/A |
| Monitor Output | (2) Display ports, (1) HDMI, (1) VGA |
| Local Client Display Rate | 375 FPS @ 1080P (Windows) 700 FPS @ 1080P (Linux) |
| Operating System | Windows 11 Ubuntu Linux 22.04 |
| Operating System Location | 256GB, SSD |
| CPU | i3 |
| RAM | 8GB (16GB optional) |
| NIC | 2 x 2.5 Gbps |
| General | |
| Dimensions | D: 584.2 mm (23 in) W: 482.6 mm (19 in) H: 88.9 mm (3.5 in) |
| Power | 150W (max) 100-240vac |
| Cooling | 2 Internal Fans |
| Operational Temperature | 40°F - 95°F 4.5°C - 35°C |
| Weight | 14.06 kg (31 lbs) |
| Regulatory | FCC, EMS, CE, cNus, RoHs |
| Warranty | 5-Year |
| Keyboard and Mouse | Included |
