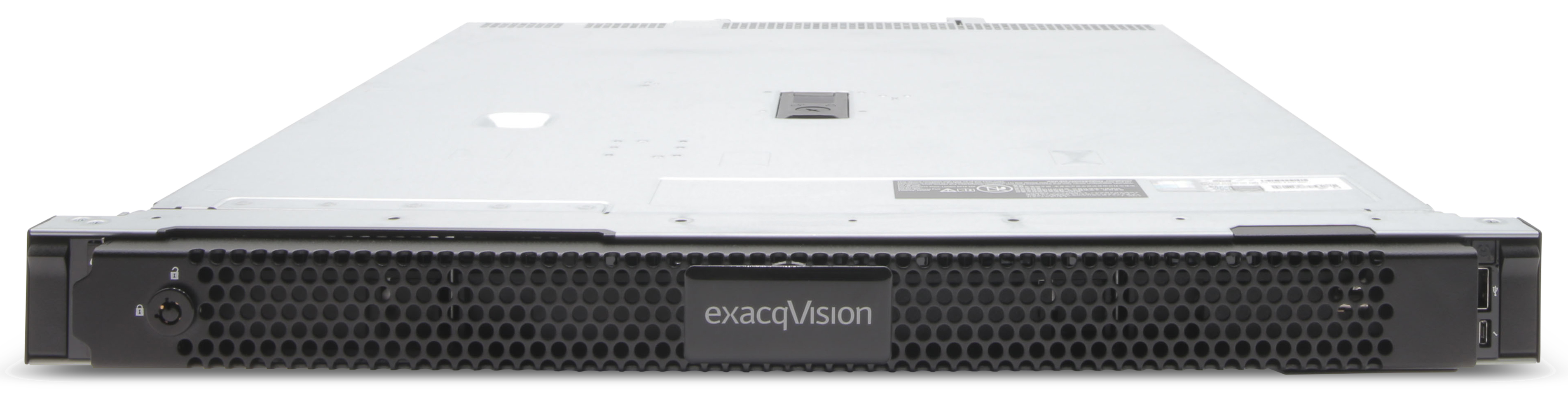

ExacqVision - IP01-48T-R1XW-E - NVR with 1 IP Enterprise Licenses 170 Max, 48TB
Part number:
Price:
- • 48TB RAID5 storage (approx. 36TB usable)
- • Dual SSD RAID1 OS drive for Windows Server 2022
- • iDRAC9 Enterprise for full remote out-of-band management and hardware monitoring
- • Redundant Power Supplies for high availability and hardware failover
- • Includes 1 IP Enterprise license (Scalable up to 170 IP cameras)
- • 16GB RAM and high-throughput networking (Dual 1GbE + Dual 10GbE RJ45 NIC)
- • 5-year next business day on-site hardware warranty and Lifetime SSA for VMS software
- • 1U Rackmount form factor with sliding rail kit included (no mouse or keyboard)
| Compression | |
| Compression | MJPEG, H.264, H.265 |
| Video Throughput | 650Mbps (Windows) 700Mbps (Linux) |
| Maximum IP Streams | 170 |
| Included Camera Licenses | 1 (Professional or Enterprise), Lifetime SSA included exacqVision Advantage w/Illustra included |
| Alarm Inputs/Outputs | USB I/O Module (sold separately) |
| Server | |
| Form Factor | 1U |
| Embedded Management | iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module |
| Maximum Hard Drives | 4 Hot Swappable |
| Maximum Storage | 64TB |
| RAID | RAID 5 |
| Ports | Front: 1 x Micro-AB USB, 1 x USB 2.0 Rear: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC |
| Operating System | Windows Server 2022 Ubuntu Linux 22.04 |
| Operating System Location | 480GB, SSD, RAID 1 |
| CPU | Xeon Silver 4410Y |
| RAM | 2 x 8GB (16GB) |
| NIC | 2 x 1Gbps & 2 x 10Gbps RJ45 |
| General | |
| Dimensions (D x W x H) | D: 585.3 mm (23.04 in) 598.94 mm (23.58 in) with bezel W: 482 mm (18.98 in) H: 42.8 mm (1.69 in) |
| Power | 600W Platinum Power Supply Mix Mode 100-240 VAC or 240 VDC hot swap redundant |
| Cooling | 4 fans with full redundancy |
| Weight | 24.33KG (53.636 lbs) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15; ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) |
| Warranty | 5 Years (Keep your HDDs) |
Name
Description
Size
Downloads
File
Specsheet
0.5mb
File
Brochure
0.4mb
File
A&E Specification
0mb
File
Quick Start Guide
1.1mb
