ExacqVision - IP02-01T-GM - 1TB G-Series Micro Desktop Recorder with 2 Professional IP Cameras Licenses
Part number:
IP02-01T-GM
Price:

Desktop recorder with 2 professional IP cameras licenses (8 max), exacqVision Professional server, client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 22.04, mini-DisplayPort, HDMI monitor outputs, Dual Gb NIC. Mouse included with on-screen keyboard installed.



Features:

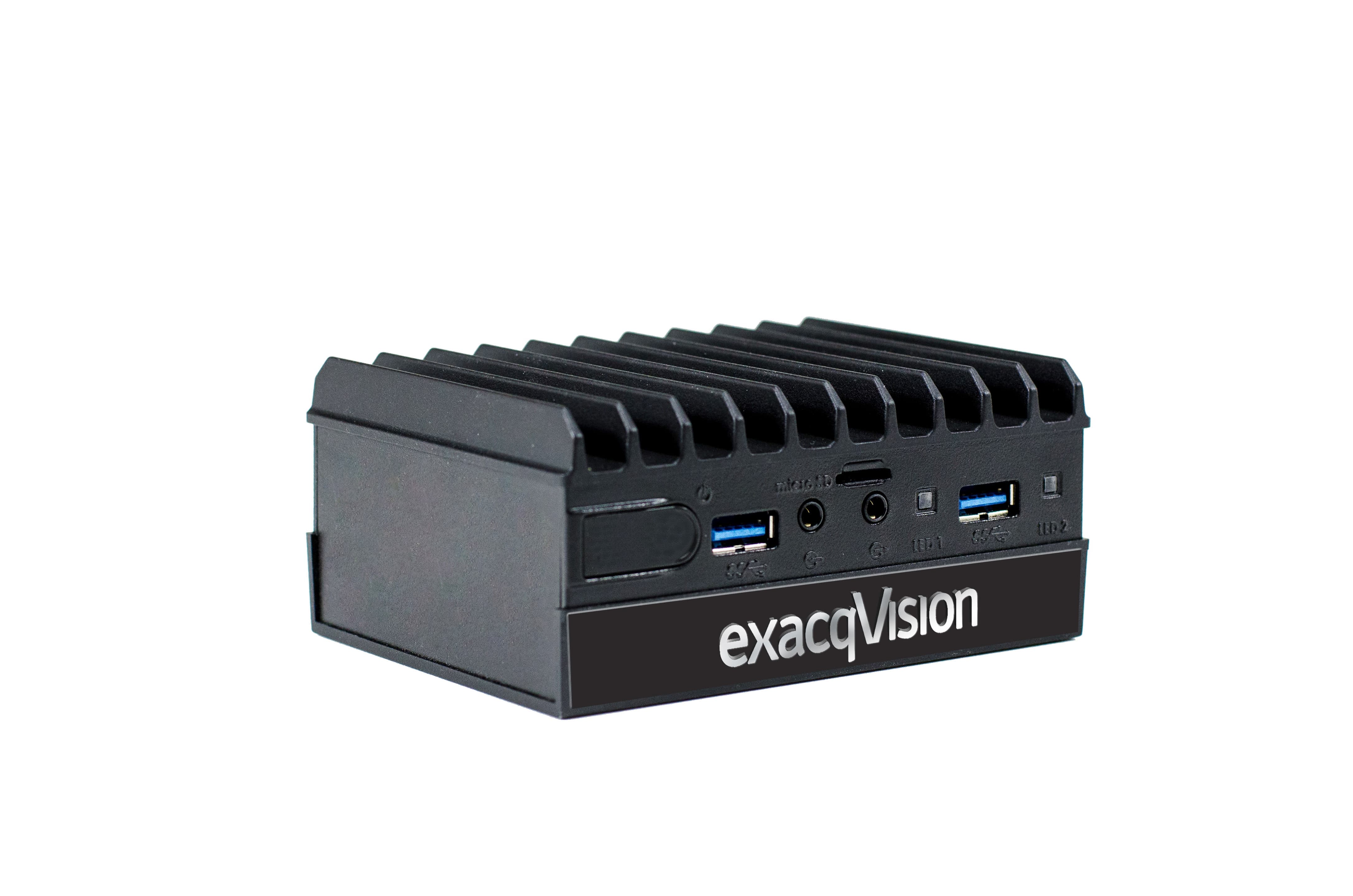

G-Series Micro

The G-Series Micro is a video recording solution designed for customers who want to leverage the enhanced accessibility and reliability of cloud video storage with low upfront costs. The G-Series Micro is complemented by exacqVision Cloud Drive storage, giving customers an economical option to store, access, and search critical surveillance video in the cloud from up to eight IP cameras.



As small in stature as it is in price, the G-Series Micro fits perfectly in space-constrained applications such as retail shops, restaurants, banks, and other small professional offices. The system's fan-less convection cooling offers quiet, failure-resistant operation, and is ruggedized to handle environmental factors such as high temperatures and dust, making it ideal for businesses demanding zero disruption to operations.



Safeguard Against Cyber Attacks Across Devices

exacqVision G-Series NVRs have been designed to be resilient against cyber-threats. This solution includes role based access control that allows administrators to restrict access to functions and cameras by user role. Safeguard controls include an enhanced security mode which forces the use of complex, non-default password and encrypted communications. G-Series NVRs adheres to the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.



3-Year Warranty and Software Subscription Agreement (SSA)

  • Constantly increase VMS features with regular software updates
  • 3 years of unlimited software updates included
  • 3 years of system warranty
SpecificationsG-Series Micro
Maximum IP Cameras8
Included IP Licenses2
Pre-Loaded VMS Software

Professional

Enterprise (Optional)

Include SSA3 Years
Operating SystemLinux Ubuntu 22.04
RAIDNot Available
Maximum Storage1 TB
Maximum Hard Drives1
Typical Video Storage Rate60 Mbps
Local Client Display Rate (1080p)Client use recommended only for configuration purposes
CPUIntel Celeron
RAM2 GB
Operating System DriveHDD
Operating System RedundancyNot Available
Monitor Output

HDMI, Mini DP

1 monitor recommended

NIC2 x 1 Gbps
USB4 x USB 2.0
Alarm InputsExternal (USB I/O Optional)
Alarm OutputsExternal (USB I/O Optional)
Audio Inputs1
Audio Outputs1
DVDExternal (Optional)
AccessoriesKeyboard (on-screen), Mouse
Dimensions (H x W x D)

4.44 x 3.30 x 2 in

11.3 x 8.4 x 5.1 cm

Weight

1 lb

.45 kg

Input Voltage

12V-DC, .75A

Auto-Sensing

Power SuppliesSingle
Power & Heat

15 Watts/51 BTU/h (Max)

10 Watts/34 BTU/h (Typical)

Operating Temperature

32° - 113°F

0° - 45°C

Warranty3 Years
