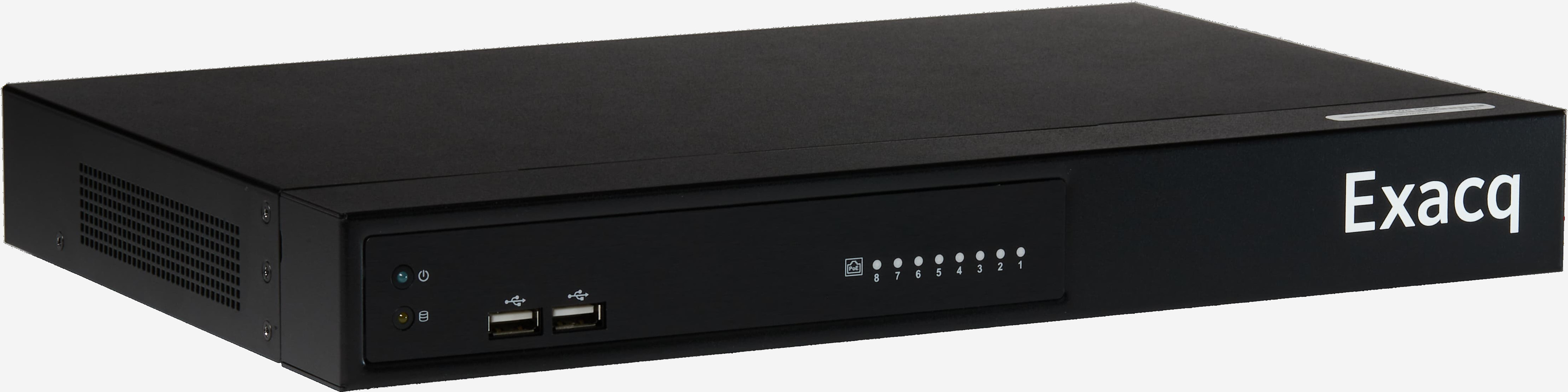

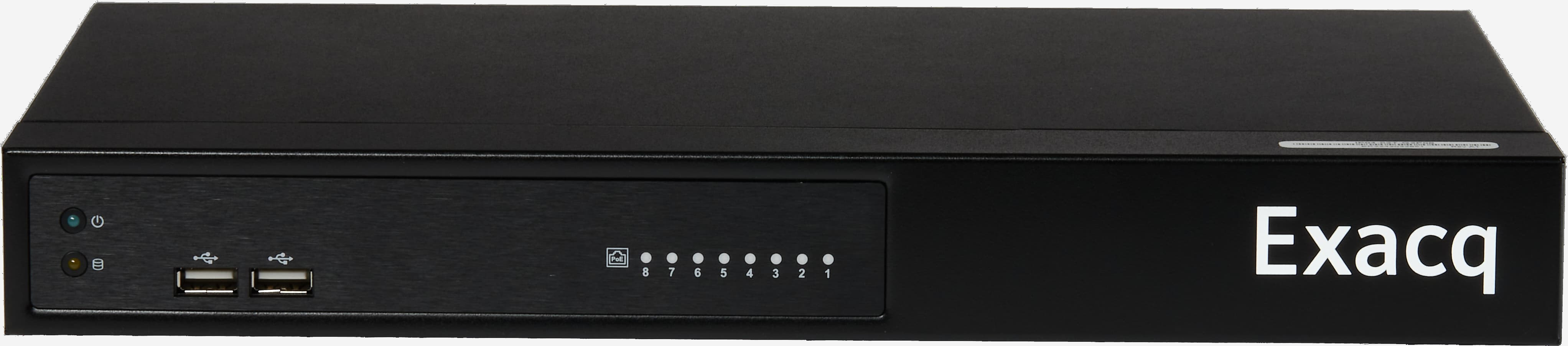

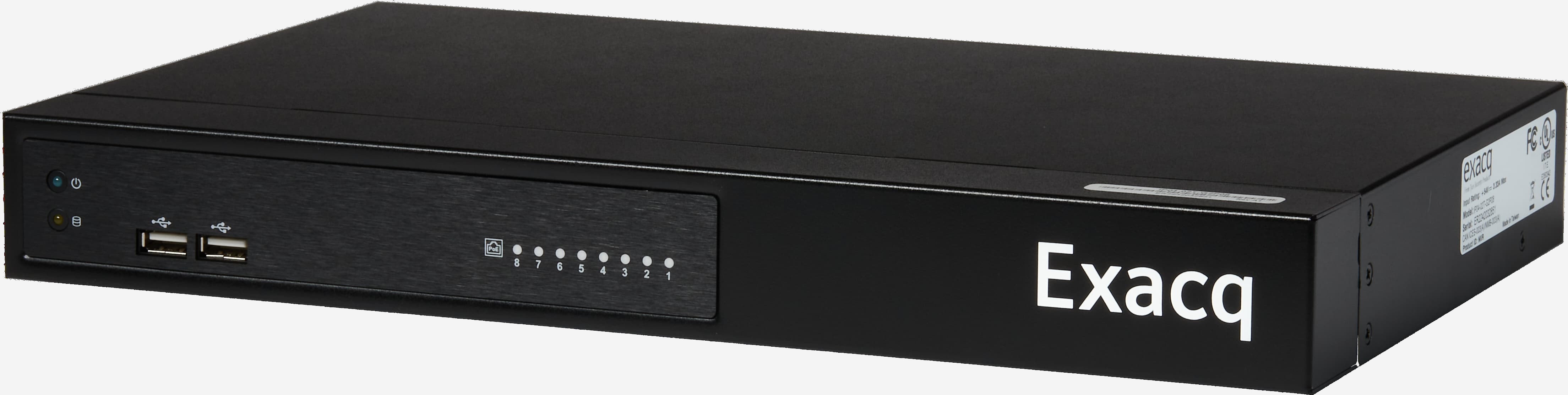

ExacqVision - IP04-08T-G2P08 - 8TB G-Series Desktop PoE Recorder with 8 PoE+ IP Camera Ports
Part number:
IP04-08T-G2P08
Price:

Desktop PoE recorder with 8 PoE+ IP camera ports (15w simultaneous on all ports, 30w max per port), 8TB, 120 Mbps continuous recording rate. 4 exacqVision PROFESSIONAL IP licenses, server and client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Ubuntu Linux 22.04, HDMI, DVI-I, 1x 1Gb and 1x 2.5Gb NICs, 4 USBs. Mouse included with on-screen keyboard installed.



Features:



G-Series PoE

The G-Series PoE offers sophisticated performance from a cost-effective NVR without the hassle of wiring cameras to a power supply. Equipped with a generous PoE budget, this NVR delivers 15 watts simultaneously on all ports, and up to 30 watts on any port, giving customers substantial flexibility on camera choices, with a simple plug-and-play setup.

Powerful local client performance means that live video can be viewed directly on the NVR with 8 full-HD simultaneous streams at 15fps, providing a high-quality experience when viewing live or searching stored video.



Safeguard Against Cyber Attacks Across Devices

exacqVision G-Series NVRs have been designed to be resilient against cyber-threats. This solution includes role based access control that allows administrators to restrict access to functions and cameras by user role. Safeguard controls include an enhanced security mode which forces the use of complex, non-default password and encrypted communications. G-Series NVRs adheres to the rigorous standards of the Johnson Controls Cyber Solutions Product Security Program. The holistic approach to cyber protection is aimed at providing peace of mind to our customers. Our security mindset begins at initial design concept and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.



3-Year Warranty and Software Subscription Agreement (SSA)

  • Constantly increase VMS features with regular software updates
  • 3 years of unlimited software updates included
  • 3 years of system warranty
IPG-Series PoE 8-Port
Maximum PoE Cameras8
Included IP Licenses4 PRO
PoE Power

15 W (all ports simultaneously)

30 W max (individual port)

120 W (total)

Pre-Loaded VMS Software

Professional

Enterprise (Optional)

Include SSA3 Years
Operating SystemLinux Ubuntu 22.04
Maximum Storage12 TB
Maximum Hard Drives1
Typical Video Storage Rate120 Mbps
Local Client Display Rate (1080p)8 streams @ 30 FPS each
CPUIntel Celeron
RAM4 GB

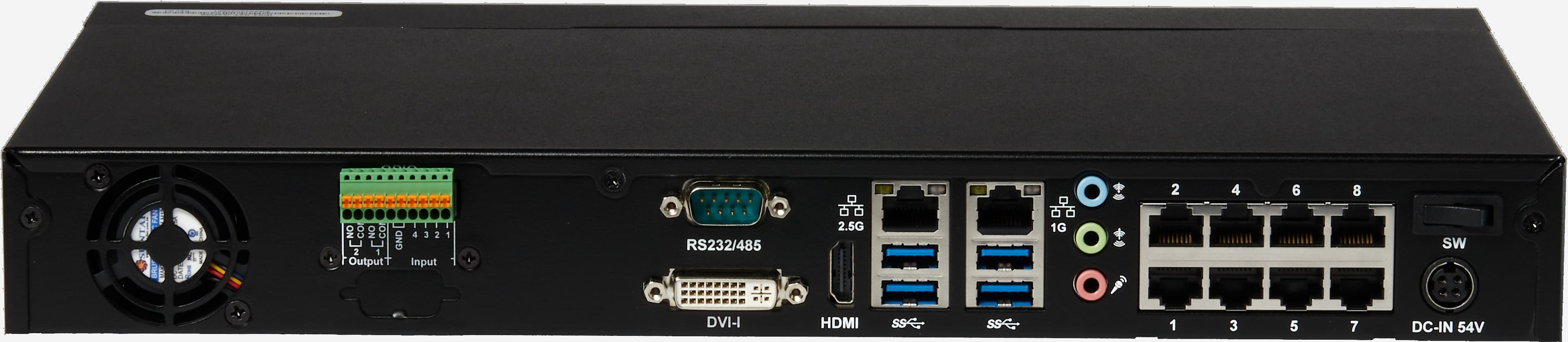

Monitor Output

HDMI, DVI-I

2 Simultaneous

NIC1 x 2.5 Gbps, 1 x 1 Gbps
USB2 USB 2.0 Front, 4 USB 3.1 Rear
Audio Input1
Audio Output1
DVDExternal (Optional)
AccessoriesKeyboard (on-screen), Mouse
Dimensions (H x W x D)

1.92 in x 14.17 in x 8.83 in

4.9 cm x 36 cm x 22.45 cm

Weight

6 lbs

2.72kg

GeneralG-Series PoE 8-Port
Input Voltage

54V-DC, 3.2A

Auto-Sensing

Power SuppliesSingle
Power & Heat

260 Watts/900 BTU/h (Max)

65 Watts/225 BTU/h + POE Usage (Typical)

Operating Temperature

32° - 104°

F0° - 40°C

Warranty3 Years
