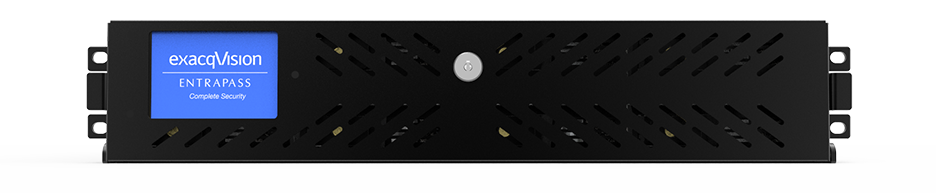

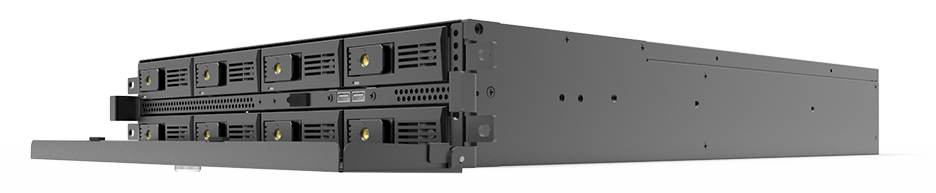

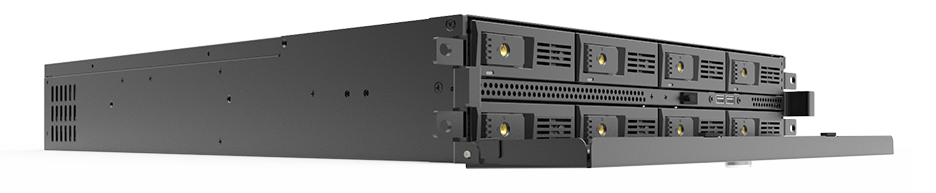

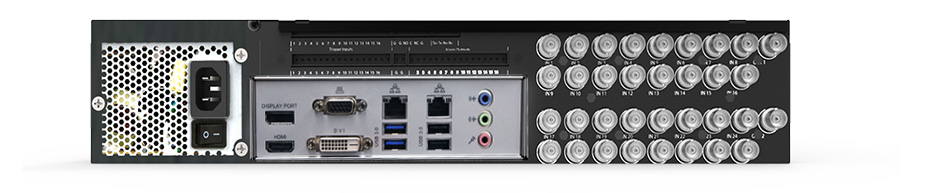

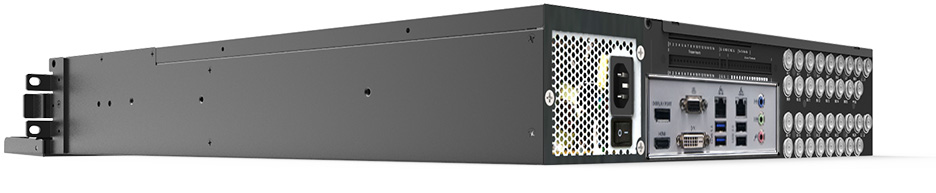

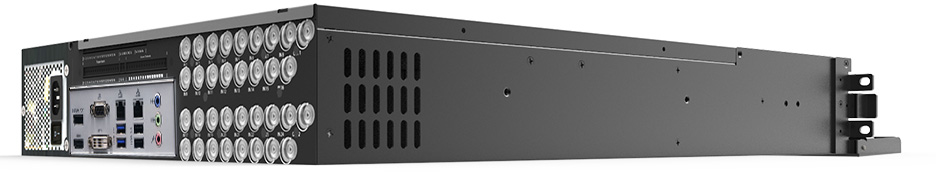

ExacqVision - IP04-64T-F2A - 64TB A-Series IP 2U Front Accessible Recorder Professional Win10 With 4 IP Cameras Licenses
Part number:
IP04-64T-F2A
Price:
- • Available in hybrid servers and IP camera network video recorder (NVR) models
- • View live and recorded video through free exacqVision client application
- • Continuously record up to 550 Mbps of video for high concentration of high definition analog and IP cameras
- • Stream up to 1,800 frames per second of live/recorded video to web/mobile clients
- • Stream live/recorded video up to 100 simultaneous PC clients
- • Optional quad network interfaces for fastest archiving or mass client performance
| Maximum IP Cameras | 64 |
| Included IP Licenses | 4 |
| Pre-Loaded VMS Software | Professional |
| Enterprise (optional) | |
| Include SSA | 3 Years |
| Operating System | Windows 10 |
| Linux Ubuntu 22.04 | |
| Windows Server 2022 (Optional) | |
| RAID | RAID 5 (Optional) |
| Maximum Storage | 96 TB |
| Maximum Hard Drives | 8 |
| Typical Video Storage Rate | 300 Mbps (Windows) |
| 550 Mbps (Linux) | |
| Local Client Display Rate (1080p) | 375 FPS (Windows) |
| 720 FPS (Linux) | |
| CPU | Intel Core i3 |
| Intel Core i5 (Optional) | |
| Intel Core i7 (Optional) | |
| RAM | 8 GB |
| 16 GB (Optional) | |
| Operating System Drive | 256 GB SSD |
| Operating System Redundancy | RAID 1 (Optional) |
| Monitor Output | HDMI, DP, VGA |
| 3 Simultaneous | |
| NIC | 1 x 2.5 Gbps, 1x 1 Gbps |
| 1 x 2.5 Gbps, 3 x 1 Gbps (Optional) | |
| USB | 4x USB 2.0, 2x USB 3.0 |
| Alarm Inputs | External (USB I/O Optional) |
| Alarm Outputs | External (USB I/O Optional) |
| Audio Inputs | 2 |
| Audio Outputs | 1 |
| DVD | External (Optional) |
| Accessories | Keyboard, Mouse |
| Dimensions (H x W x D) | 3.5 x 17 x 24 in |
| 8.9 x 43.18 x 60.96 cm | |
| Weight | 34 - 50 lbs |
| 15.4 - 22.7 kg | |
| Input Voltage | 120/240 VAC |
| auto-sensing | |
| Power Supplies | Single |
| Power & Heat | 240 Watts/790 BTU/h (Max) |
| 140 Watts/470 BTU/h (Typical) | |
| Operating Temperature | 40°F - 95°F |
| 4.5°C - 35°C | |
| Warranty | 3 Years |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
exacqVision Family Brochure
1mb
File
A Series 2U IP Server
0.2mb
File
AE specifications
0mb
File
Certifications and Drawings KSA Declaration A-Series DT
0.4mb
File
Certifications and Drawings KSA Declaration A-Series
0.7mb
File
US-27618-A1-UL A-Series
0.2mb
File
US-27619-A1-UL A-Series DT
0.2mb
IP 2U Front Accessible recorder with 4 IP cameras licenses (64 max). exacqVision Professional server, client, web/mobile software pre-installed with 3 years software upgrades and hardware warranty. Win10 on SSD. HDMI, DisplayPort, VGA (3 max simultaneous), Dual NICs. Keyboard and mouse included.
