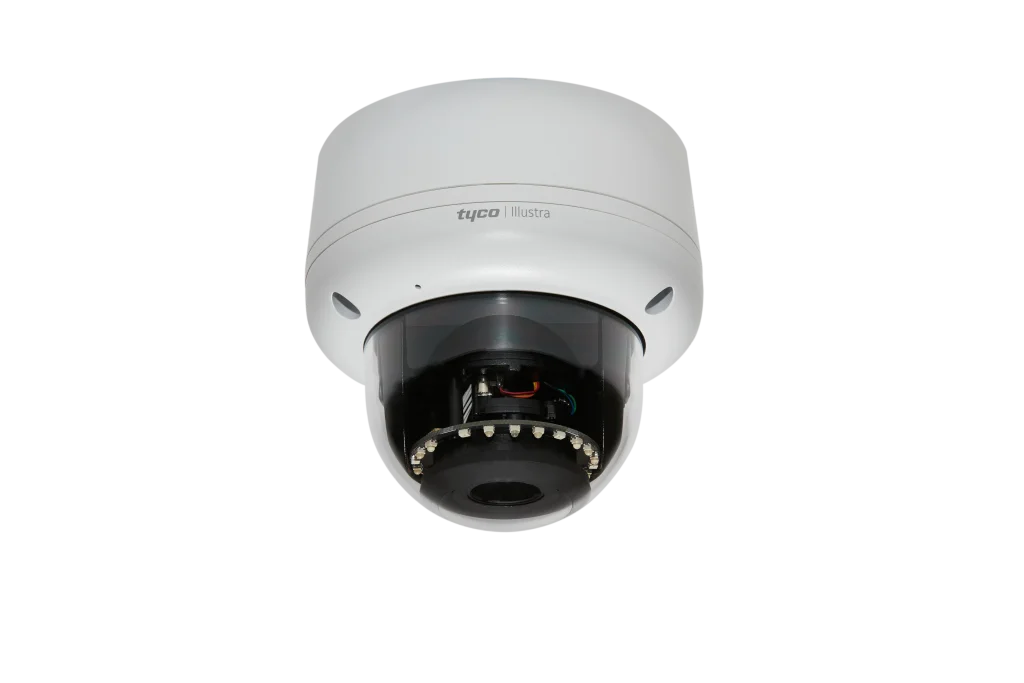

Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI based object classifications, events can accurately be narrowed to classes such as person, car, bus, and suspicious objects such as bags.
Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
Features:
- Built in AI delivers accurate object classification, powerful situational awareness and security automation
- Integrated recess mount, universal back-box, a range of IO options including Micro HDMI plus WIFI configuration via the Illustra Tools App
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming and more
- Ultra low light capabilities to maintain color image quality without IR
- ONVIF profile S, G, M & T conformant
- 5 year warranty
| Operational |
2MP 4MP 8MP | |||||
| Video Compression | H.264 / H.265 / MJPEG / IntelliZip | |||||
| Max Frame Rate | 2MP @ 60fps | 4MP @ 60fps | 8MP @ 30fps | |||
| Resolution & Aspect Ratio | 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 960x544 (qHD) 16:9 816x464 16:9 640x360 (nHD) 16:9 480x272 16:9 | 2560x1920 2560x1444 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x960 4:3 1280x720 (720p) 16:9 800x600 (SVGA) 4:3 640x480 (VGA) 4:3 480x360 4:3 384x288 4:3 | 3840x2160 (4K) 16:9 3264x1840 16:9 2688x1520 16:9 2560 x 1440 16:9 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 960x544 (qHD) 16:9 816x464 16:9 640x360 (nHD) 16:9 480x272 16:9 | |||
| Imager | Sony IMX327 | Sony IMX335 | Sony IMX334 | |||
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) | |||||
| Video Streams | Quad Streaming | |||||
| Lens Type | Motorized Varifocal and Focus, P-Iris | |||||
| Focus Control | One-Touch Auto Focus or Remote Adjustment | |||||
| Focal Length | 2.7-13.5mm | 7-22mm | 2.7-13.5mm | 6-22mm | 3.6-10mm | 6-22mm |
| Field of View Wide (H/V) | 112°/58° | 40°/21° | 103°/74° | 40°/30° | 95°/53° | 50°/28° |
| Field of View Telephoto (H/V) | 35°/20° | 18°/10° | 33°/25° | 18°/13° | 49°/28° | 24°/14° |
| Aperture | f/1.4 (W) | f/1.7 (W) | f/1.4 (W) | f/1.6 (W) | f/1.5 (W) | f/1.6 (W |
| f/2.8 (T) | f/2.8 (T) | f/2.8 (T) | f/2.4 (T) | f/2.8 (T) | f/2.4 (T) | |
| Minimum Illumination | ||||||
| Color, 1/4s, 30 IRE, AGC | 0.01 Lux | 0.02 Lux | 0.03 Lux | 0.02 Lux | 0.03 Lux | 0.02 Lux |
| B/W, 1/4s, 30 IRE, AGC | 0.0001 Lux | 0.0002 Lux | 0.0002 Lux | 0.0002 Lux | 0.0004 Lux | 0.0005 Lux |
| W/IR | 0.0 Lux | 0.0 Lux | 0.0 Lux | 0.0 Lux | 0.0 Lux | 0.0 Lux |
| IR Distance | 50m |
| Dynamic Range | True WDR 120 dB True WDR 110 dB True WDR 120 dB TechnologiesTechnologiesTechnologies |
| Day/Night | True Day/Night CF Removal |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| ONVIF-Compliant | Profiles S |
| Video Intelligence Analytics | Linger, Exit, Direction, Abandoned/Removed objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter |
| Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike Rules: Object Detected, Perimeter, Linger, Dwell |
| Motion Detection Zones | 3 |
| Face Detection | Yes |
| Blur Detection | Yes |
| Privacy Zones | 8 |
| Alarm Input/Output | 2 input, 2 output |
| Video Output | HDMI |
| Audio | Bi-directional; 1 input, 1 output. Built in Microphone |
| Simultaneous Users | 10 |
