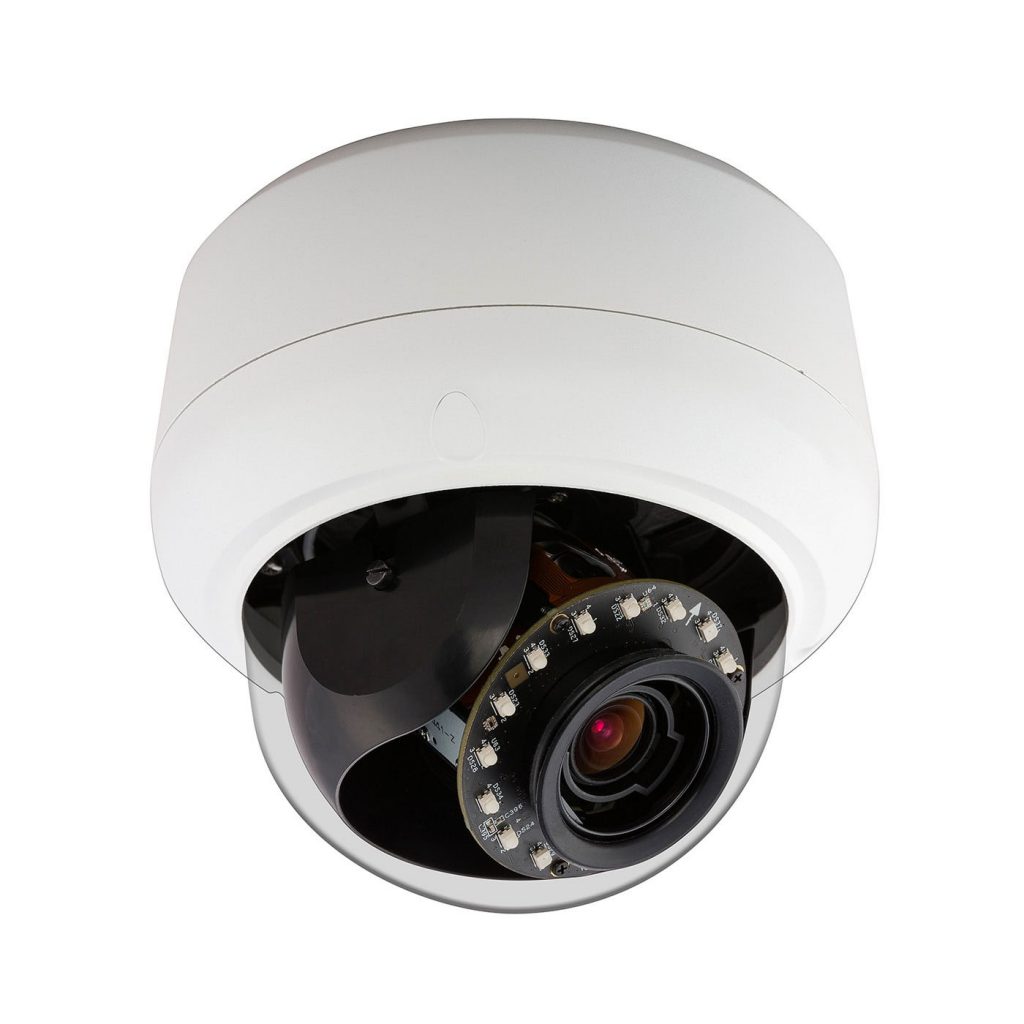

ExacqVision - IPS02D2ISWIT - Illustra Pro 2MP Mini-Dome, 3-9mm, Indoor, Vandal, Smoked Bubble, White Housing, TDN with IR, TWDR, Includes Video Intelligence Analytics
Offering exceptional performance in various lighting situations ranging from full sun to blackout conditions, the Pro IP Mini-Domes are ideal for detecting must-see details such as numbers on license plates, faces and even blurred objects and capturing them at full frame rates.
Part number:
IPS02D2ISWIT
Price:
- Superior low light performance to see important details
- Face detection enhancement to automatically increase video quality around detected faces
- Blur detection to alert users when camera focus or cleaning is necessary
- Quick and easy installation and configuration
- One-touch focus and motorized zoom
- Multiple motorized lens options
- Expanded browser support – IE, Chrome, Firefox, Safari, Windows, Mac, Linux
- Intelligent ROI-based compression for bandwidth management and reduced storage
- Up to five individual programmable regions of interest
- Hybrid streaming with easily accessible analog out
- Operates in extreme temperatures as low as -30°C operating temperature on PoE (outdoor models)
- Durable enclosure protects against vandalism, water and dust with IP66 and IK10 ratings
- Edge-Ready support for exacqVision Edge
- As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Pro 2MP Mini-Dome |
| B/W | 1.8-3mm 3-9mm 9-22mm 0.01 lux 0.02 lux 0.03 lux |
| Color | 1.8-3mm 3-9mm 9-22mm 0.3 lux 0.3 lux 0.4 lux |
| Corridor Mode | Yes |
| Day/Night | TDN |
| Environment Rating | Indoor and Outdoor models available |
| Field of View | 1.8-3mm 3-9mm 9-22mm W: 103°x87° T: 74°/59° W: 88°/64° T: 30°/22° W: 29°/21° T: 12°/9° |
| Focal Length | No |
| Focus | No |
| H.264 | 2592x1944@15fps |
| H.265 | No |
| Housing Color | White / Black |
| Imager | 1/3.2˝ CMOS progressive scan |
| IntelliZip | No |
| Lens Type | Motorized Varifocal: (3-9mm, 9-20mm) Manual Varifocal: (1.8-3mm) |
| MJPEG | 1920x1440@15fps |
| Motion Detection | No |
| Onboard Storage | Yes |
| ONVIF Compliant | Yes |
| Outdoor Rating | IP66 |
| Power Input | PoE IEEE 802.3af Class 3 |
| Resolution Options | 5MP, 3MP, 2MP, 1MP, 2592x1944, (2048x1536) QXGA, (1920x1440), (1920x1080), (1600x1200) UXGA, 1080, (1280x960) SXGA, (1920x1080) 1080p, (1280x720) 720p, (1024x768) 1024 XGA, (1024x576) PAL+, (768x576), (640x480) 640 VGA, (640x360) nHD, (480x360) 480, (384x288), (384x216) |
| Vandal-Resistant | Ik10 |
| Video Streams | No |
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
File
Tyco Camera Product Brochure
3.6mb
File
Quick Start Guide
0.4mb
File
User Manual
1.3mb
File
A&E Specifications
0.4mb
File
Application Notes
0.2mb
File
DN054-1-Declaration of Conformity Illustra Pro
0mb
File
DN055-Illustra Fixed Mini Dome EU Declaration of Conformity
1.9mb
File
Release Notes
0.6mb
File
Technical Bulletins
0.8mb
File
Technical Drawings
0.1mb
