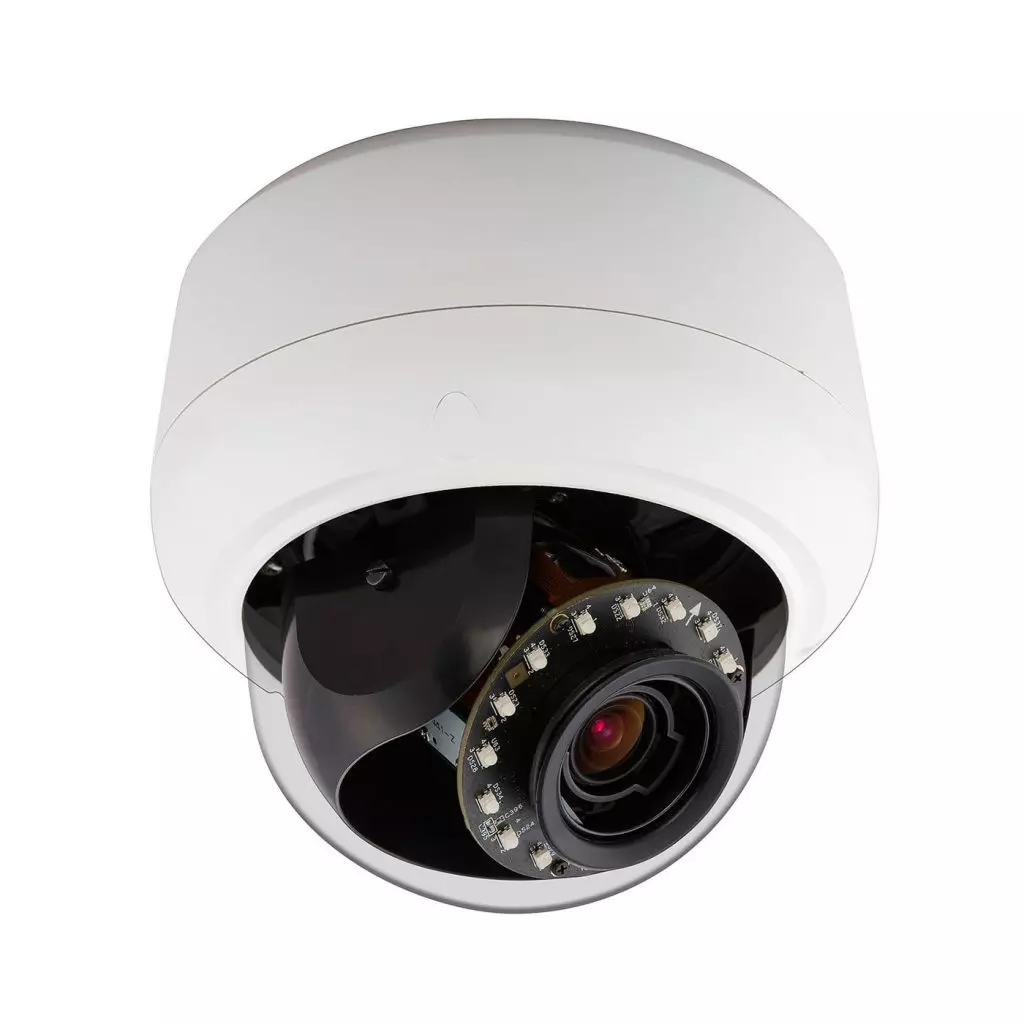

ExacqVision - IPS03D2ISWIT - Illustra Pro 3MP MiniDome, 3-9mm, indoor, vandal, smoked, white, TDN w/IR, TWDR
Part number:
IPS03D2ISWIT
Price:

Offering exceptional performance in various lighting situations ranging from full sun to blackout conditions, the Pro IP Mini-Domes are ideal for detecting must-see details such as numbers on license plates, faces and even blurred objects and capturing them at full frame rates.



Features :

  • Superior low light performance to see important details
  • Face detection enhancement to automatically increase video quality around detected faces
  • Blur detection to alert users when camera focus or cleaning is necessary
  • Quick and easy installation and configuration
  • One-touch focus and motorized zoom
  • Multiple motorized lens options
  • Expanded browser support – IE, Chrome, Firefox, Safari, Windows, Mac, Linux
  • Intelligent ROI-based compression for bandwidth management and reduced storage
  • Up to five individual programmable regions of interest
  • Hybrid streaming with easily accessible analog out
  • Operates in extreme temperatures as low as -30°C operating temperature on PoE (outdoor models)
  • Durable enclosure protects against vandalism, water and dust with IP66 and IK10 ratings
  • Edge-Ready support for exacqVision Edge
  • As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera FeaturesPro Gen2 3MP Mini-Dome
B/W1.8-3mm 3-9mm 9-22mm

0.01 lux 0.02 lux 0.03 lux
Color1.8-3mm 3-9mm 9-22mm 0.3 lux 0.3 lux 0.4 lux
Corridor ModeYes
Day/NightTDN
Environment RatingIndoor and Outdoor models available
Field of View1.8-3mm 3-9mm 9-22mm

W: 103°x87°

T: 74°/59° W: 88°/64°

T: 30°/22° W: 29°/21°

T: 12°/9°
Focal LengthNo
FocusAuto Focus
H.2642048x1536@30fps
H.265No
Housing ColorWhite / Black
Imager1/3.2˝ CMOS progressive scan
IntelliZipNo
IR DistanceUp to 20m
Lens TypeMotorized Varifocal:
(3-9mm, 9-20mm)

Manual Varifocal:
(1.8-3mm)
MJPEG1920x1440@15fps
Motion DetectionNo
Onboard StorageYes
ONVIF CompliantYes
Operating TemperatureIndoor 14° to 122°F (-10° to 50°C) | Outdoor PoE: -22° to 122°F (-30° to 50°C) | Outdoor 24VAC: -40° to 122°F (-40° to 50°C) | Outdoor Extended Temperature: 140°F (60°C) for 4 hours a day with IR illuminators OFF
Outdoor RatingIP66
Power InputPoE IEEE 802.3af Class 3
Resolution Options3MP, 2MP, 1MP, 2592x1944, (2048x1536) QXGA, (1920x1440), (1920x1080), (1600x1200) UXGA, 1080, (1280x960) SXGA, (1920x1080) 1080p, (1280x720) 720p, (1024x768) 1024 XGA, (1024x576) PAL+, (768x576), (640x480) 640 VGA, (640x360) nHD, (480x360) 480, (384x288), (384x216)
Vandal-ResistantIK10
Video StreamsNo
