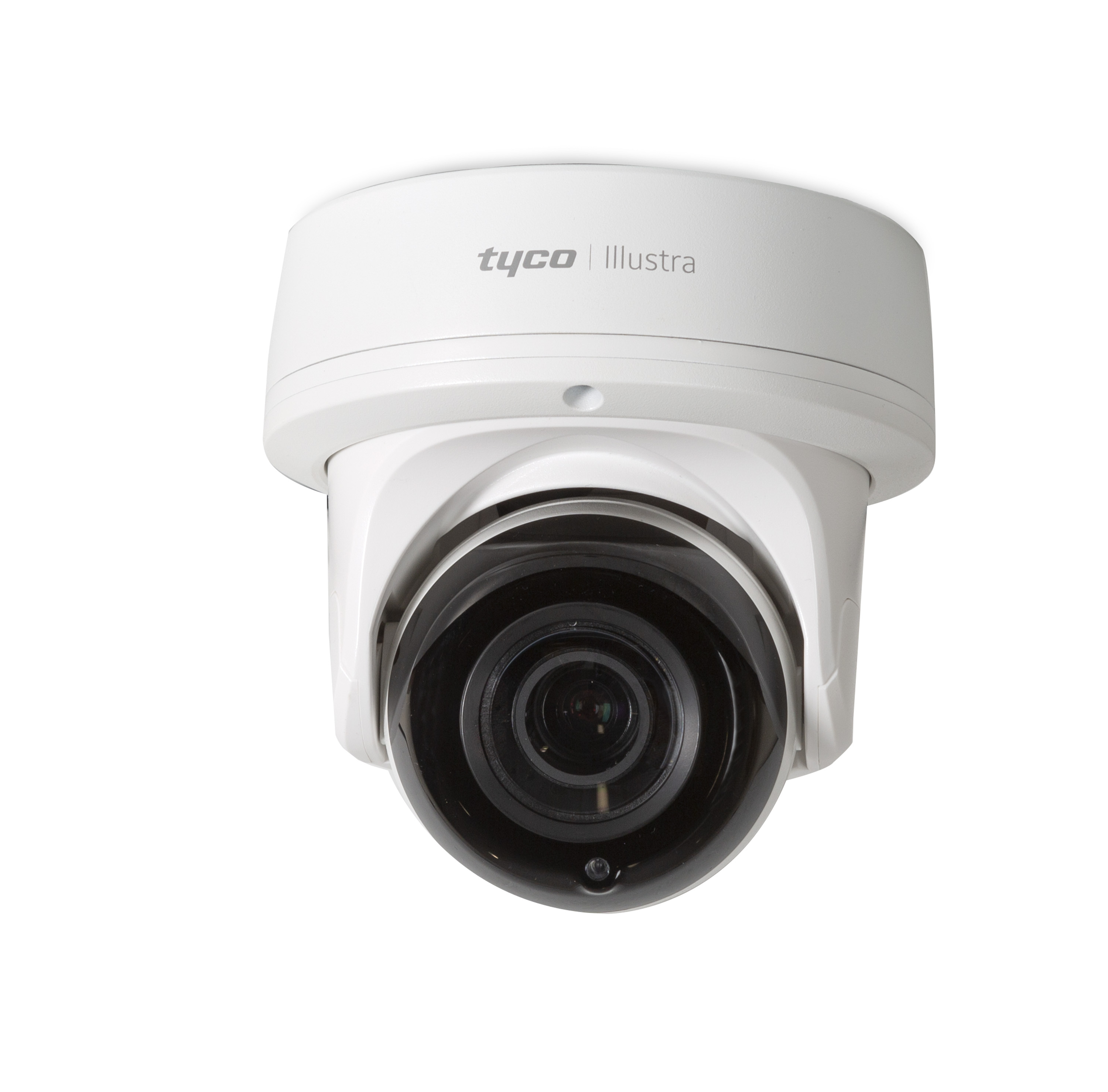

ExacqVision - IPS05-D12-OI03 - Illustra Pro Gen3 5MP Turret MiniDome, 2.7-13.5mm, Indoor/Outdoor IP67, IK10, TDN w/IR, TWDR
Part number:
IPS05-D12-OI03
Price:
The third generation of Illustra Pro Mini-Domes offers smart technologies, integrated IR, application profiles, and simplified configuration capabilities to maximize uptime and video surveillance resources. Smart Wide Dynamic Range adjusts contrast and overall scene balance without operator intervention while the bubble-free design enhances integrated IR distance up to 131 feet. Profiles such as retail, gaming, and outdoor scenes can be activated to automatically determine optimal settings based on the environment.
Features :
- Automatically detects mounting orientation
- Profile settings allow the mini-dome to adapt to scenarios such as retail, gaming, and more
- Demo mode out of the box requires minimal adjustments
- Electronic Image Stabilization keeps the field of view steady in harsh conditions
- Improved accuracy for facial detection with updated library and algorithms
- Equipped with Illustra Video Intelligence Analytics
- Designed to be resilient against cyber-attacks
- As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Pro Gen3 Mini-Dome |
| Corridor Mode | Yes |
| Day/Night | Yes |
| Dynamic Range | 2MP,3MP,8MP: True WDR 120 dB Technologies | 5MP: True WDR 110 dB Technologies |
| Environment Rating | IP66/IP67 |
| Field of View | 95°/53° (Standard) 49°/28° (Telephoto) 100°/73° (Standard) 32°/24° (Telephoto) |
| Focal Length | 3.6-10mm, 6-22mm, 2.7-13.5mm, 7-22mm |
| Focus | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | Progressive Scan RGB CMOS 1/2.8” |
| IntelliZip | Yes |
| IR Distance | Up to 40m |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 8MP @ 30fps |
| MJPEG | Yes |
| Motion Detection | 3 Zones |
| Onboard Storage | micro SDXC up to 256GB |
| ONVIF Compliant | Profile S |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC |
| Resolution Options | 8MP, 3MP, 2MP, 1MP, 3840x2160 (4K) 16:9, 3264x1840 16:9, 2688x1520 16:9, 2560x1440 16:9, 1920x1080 (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x720 (720p) 16:9, 1024x576 (PAL+) 16:9, 960x544 (qHD) 16:9, 816x464 16:9, 640x360 (nHD) 16:9, 480x272 16:9 3MP, 2MP, 1MP, 2048x1536 4:3, 1920x1080, (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x960 4:3, 1280x720, (720p) 16:9, 800x600 (SVGA) 4:3, 640x480 (VGA) 4:3, 640x360 (nHD) 16:9, 480x360 4:3, 384x288 4:3 |
| Vandal-Resistant | IK10 |
| Video Streams | Quad |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
Pro Gen3 Dome Quick Start Guide
0.4mb
File
Pro Gen3 Dome Recess Mount Quick Start Guide
0.4mb
File
Pro Gen3 Dome Wall Mount Quick Start Guide
0.3mb
File
Pro Gen3 Universal Electrical Box Mounting Plate Quick Start Guide
0.3mb
File
Regulatory Information
0mb
File
Release Notes
0.9mb
File
Technical Drawings: Illustra Pro Gen-3 Dome Cameras
0.2mb
File
Technical Drawings: Illustra Pro Gen-3 Recess Mount
0.2mb
