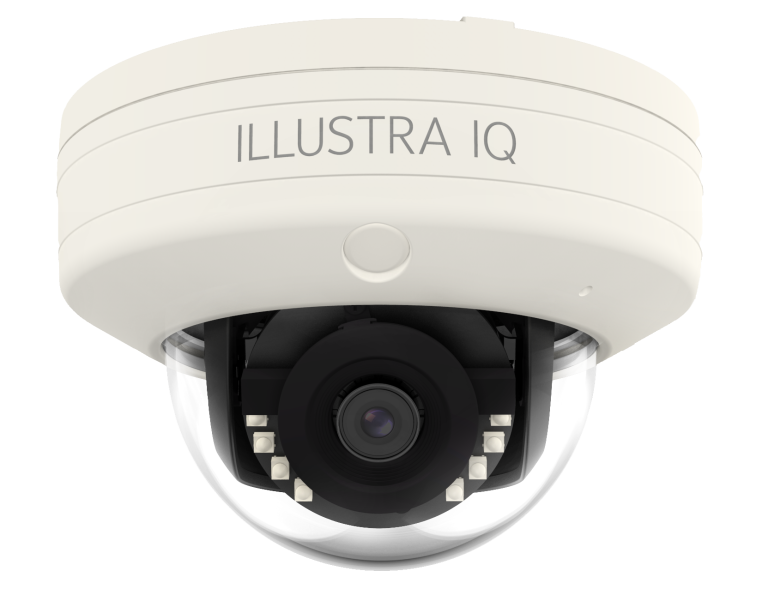

The Pro4 Compact Dome – a sleek, palm-sized flat dome camera that takes discreet design to the next level. With options like a smoked bubble and recessed mount, it practically disappears from view, making it the perfect choice for upscale retail and gaming environments. This product adds a touch of sophistication that customers truly appreciate. Designers and consultants love its artful craftsmanship, seamlessly blending with premium interior designs.
Features:
- Artfully Crafted Discreet Style
- Extreme Weather Design with Full Preipherals
- Doubled Sensitivity for Better Clarity for Lowlight Conditions
- Comprehensive Cyber & Network Security
- Easy Installation
- Power Edge AI for Improved Security and Efficiency
- Versitile for Indoor & Outdoor Use
- 5-Year Warranty
Camera | |
| Image sensor | Sony 1/1.8” progressive scan ultra-lowlight CMOS sensor |
| Lens | 4.5mm, F1.6, fixed iris FOV (H): 110° FOV (V): 57° Field of view: Horizontal 132°, vertical 97° |
| Day and night | True D/N by mechanically removable IR-cut filter, thresholds adjustable |
| Minimum illumination | 0.15 lux 0.07 lux 0 lux |
| Shutter speed | 1/32,000 sec ~ 1/4 sec |
| IR illumination | 850 nm IR, power-efficient and durable Smart IR Effective up to 30 m (100 ft) |
| SNR | > 56 dB |
Video | |
| Video compression | H.264 HP/MP, H.265 HP, Motion JPEG |
| Resolution and frame rate | Up to 3840x2160 (16:9) at 30/25 fps, 1080p up to 60/50 fps |
| Video streaming | IntelliZip smart compression in H.264 and H.265 Quad streaming CBR/VBR/CVBR configurable bitrate control Higher compression ROI |
| Wide dynamic range | True WDR 120dB technologies Smart WDR, TWDR 2x, TWDR 3x Smart Defog |
| Smart image processing | AI Auto exposure: Object, person, face Smart auto exposure profiles: Gaming, LPR, outdoor, indoor, shutter priority, iris priority, manual, demo, auto |
| Image settings | Configurable color contour, auto exposure, AE compensation, auto white balance, auto gain control, auto electronic shutter, flickerless, image orientation, text overlay Digital noise reduction 2D/3D Privacy mask Corridor mode |
| Image stabilization | Electronic image stabilization (EIS) |
| Video output | 1x Micro HDMI port for preview |
Audio | |
| Audio compression | G.711 µ-law |
| Audio streaming | Omni-directional, simplex |
| Audio input/output | Built-in Microphone |
Video Content Analysis | |
| AI Object classifications | Classes Person: Vehicle Retail Suspicious objects Person: Bicycle, bus, car, motorbike, train, truck Cart Backpack, handbag, suitcase Sub-classes Person clothing colors (upper, lower), vehicle colors Rules: Object detected, abandoned/removed objects, direction, linger, dwell, enter, exit, crowd, queue, perimeter |
| AI Face detection | Yes |
| AI Tamper detection | White out, black out, scene change |
| AI Blur detection | Yes |
| AI Metadata | Yes |
| AI Smart search | AI Person Re-ID (via VideoEdge v6.1.1 or after) |
| Video motion detection | Yes |
Network | |
| Ethernet | IEEE 802.3, 10/100 Base-T, 1x RJ45, auto sensing |
| Cyber security | ISASecure ISA/IEC 62443-4-1 certified secure development Secure boot Signed and encrypted firmware |
| Network security | Multi-level password protections, brute force delay protection, IP address filtering, HTTPS encryption, IEEE 802.1x (PEAP, EAP-TLS, EAPoL), digest authentication, HTTPS over TLS, WS-Security, certificate management, enhanced security (one-click security hardening, user access log, validate complex credentials, disabling unused protocols) |
| Supported protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, QoS, SIP, Hostname configuration |
| Network management | SNMP v2c/v3 |
| Simultaneous users | 10 |
System Integrations | |
| Application program interface | ONVIF Profile S, Profile G, Profile M, Profile T, test tool 23.06 or later conformant Illustra iAPI via Connected Partner program |
| Event triggers | Video analytics, network loss, temperature |
| Event handling | Record to SD, snapshot, SMTP email out, FTP upload, CIFS |
Peripherals | |
| Wireless configuration | 1x Micro USB for use with Tyco Tools app via optional USB Wi-Fi Dongle IA-KIT-WD-UUA |
| Onboard storage | 1x microSDXC slot, Class 10 or higher, up to 2TB capacity, card not incl 1~10 sec pre/post-event buffering Encrypted storage and streaming TrickleStor offline recording and backfilling via VideoEdge and ExacqVision NVR |
Mechanical | |
| Casing Die | Die casting aluminum body Polycarbonate bubble Encapsulated electronics Built-in network cable, IP66-rated waterproof cap |
| Lens direction | 3-Axis manually repositionable, pan 360°, tilt 70°, azimuth ±175° |
| Mounting | Surface mount Versatile mounting options available, see Optional Accessories |
| Vandal resistance | IK10 impact-resistant rated |
| Weathering resistance | IP67/66 rated, NEMA 250 Type 4X certified |
| Color | RAL 9003 signal white |
| Reset buttons | 1x Reboot, 1x factory reset |
| Dimension (WxHxD) | Ø121 x 82.9 mm (Ø4.76 x 3.26 in) |
| Weight | Net 550 g (1.21 lbs), gross 850 g (1.87 lbs) |
Electrical | |
| Power source | PoE IEEE 802.3af Type 1 Class 3 |
| Power consumption (max) | 12.95 W |
Environmental | |
| Operating conditions | -40 °C ~ 60 °C (-40 °F ~ 140 °F) Maximum temperature (intermittence): 65 °C (165 °F) Up to 0 ~ 95% RH non-condensing |
| Cold start temperature | -40 °C (-40 °F) |
| Storage conditions | -40 °C ~ 65 °C (-40 °F ~ 165 °F) Up to 0 ~ 95% RH non-condensing |
Regulatory | |
| EMC | BS/EN 55032 Class A, IEC/BS/EN 61000-3-2, BS/EN 61000-3-3, BS/EN 50130-4, IEC/EN 61000-4-2/3/4/5/6/8/11, FCC Part 15 Subpart B Class A, ICES-003/NMB-003 Class A, RCM AS/NZS CISPR 32 Class A, IEC/BS/EN 61000-6-4, BS/EN 50121-1, BS/EN 50121-4 |
| Safety | IEC/UL/CB 62368-1, CAN/CSA-C22.2 No. 62368-1 IEC/UL/CB 60950-1, CAN/CSA-C22.2 No. 60950-1, IS 13252 (Part 1) |
| Environment | NEMA 250 Type 4X, IEC/EN 62262 (IK10), IEC/EN 60529 (IP67/66) RoHS, WEEE, REACH |
