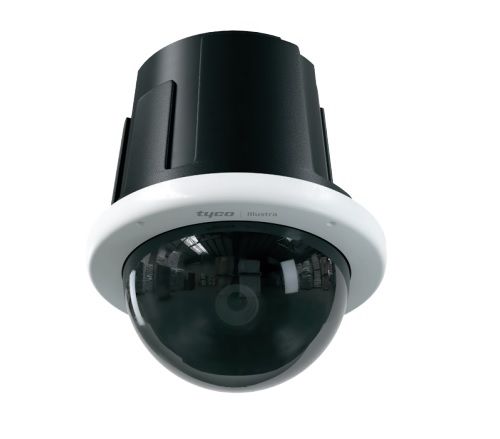

The exceptional speed and silence of the Illustra Pro PTZ coupled with ultra-low latency performance gives security personnel the ability to accurately track subjects in mission critical applications. The camera employs zoom-adjusted program technology to automatically control the pan and tilt speed in proportion to the amount of zoom used, delivering precise pan and tilt control. Using programmed presets and tours, the Illustra Pro PTZ moves into position at up to 700° per second.
Features:
- Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Auto-tracking based upon face or person detection
- True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
- Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more
- Fast and accurate reaction to events with a Pant/Tilt Speed of up to 700°/sec and a preset accuracy of <0.1°
| Operational | 2MP | 8 MP (4K ) |
| Imager | CMOS 1/2.18” | CMOS 1/1.8” |
| Video Compression | H.264 / H.265 / MJPEG / IntelliZip | |
| Configurable Streams | Quad St reaming | |
| Max Frame Rate | 2MP@60fps | 8 MP@30fps |
| Lens Type | Varifocal Lens, D C-Iris, IR Corrected | |
| Image Stabilisation | Electronic Image Stabilisation | Electronic Image Stabilisation (Future Release) |
| Focus Control | Motorized,Continuous A uto Focus, Manual Focus | |
| Aperture | F/1.6(W) ~ F/4.4(T) | F/1.5(W) ~ F/3.4(T) |
| Minimum Illumination Color | 0.013 lux | 0.004 lux |
| Minimum Illumination BW | 0.0035 lux | 0.015 lux |
| Wide Dynamic Range | True multi shutter WDR 126dB, Off / S mart WDR / True WDR2x / True WDR 3x | |
| Day/Night | ||
| Motion Detection | Yes | |
| Privacy Zones | 8 | |
| Video Intelligence | Linger, Exit, Direction, Abandoned/R emoved objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter | |
| AI Object Classification | Person, Bicycle, B us, Car, Motorbike | |
| Onvif | Pro file S | |
| Blur Detection | Yes | |
| Face Detection | Yes | |
| Intelligent Guard Tour | Face, Person | |
| Alarms Input/Output | 2 / 2 | |
| Audio | Bi-directional; 1 input, 1 output | |
| PTZ Operational | ||
| Optical Zoom | 30x Optical Zoom, 12x Digital | 22 x Optical Zoom, 12x Digital |
| Focal Length Range | 4.5-135 mm | 6.4-139 mm |
| Field of View (H/V) | Wide Angle: 60°/37° Telephoto: 5°/3° | Wide Angle: 61.9°/36.2° Telephoto: 3.4°/1.7° |
| Pan Travel | 360 ° Continuous | |
| Tilt Travel | 0 ° to -90° | |
| Manual Continuous Speed | < 0.25° to 100°/s scaled in proportion to zoom position | |
| Preset Accuracy | < 0.1 degree | |
| Preset Speed | 700 °/sec (Typical: 465°/sec) 0.5sec Move Time | |
| Presets | 96 | |
| Sequences | 16 | |
| Pattern | 16 | |
| Home Function | Yes | |
| Auto Flip | Yes | |
| Network | ||
| Ethernet Interface | IEEE 802.3, 10/100/1000Base-T Ethernet, RJ45, auto sensing | |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNPTM, RTSP, LLDP | |
| Encrypted Video Streaming | Yes via HTTPS | |
| Configuration Management | ||
| Web Browser | IE 10, 11, Firefox, Chrome | |
| Security | Secure Boot, Enhanced Security Mode (forces complex passwords, HTTPS and disables discovery); TLS 1.2 (256 bit cipher minimum); Security Overview Page (status and configuration); RTSP Authentication; IEEE 802.1X Client; Remote Accessible Audit logs; Role-Based Access Control and SD card encryption | |
| Onboard Storage | ||
| Card Support | Micro SD/SDHC/SDXC card slot, up to 512GB | |
| Pre-Alarm Recording | Yes | |
| Recording Format | mp4 | |
| Encrypted Storage | Yes | |
| Recording Trigger | Dry Contact Alarms, Motion Detection, Face Detection, Video Intelligence , AI Object Classification, Periodic Events | |
| TrickleStor | Yes, encrypted storage | |
| Electrical | ||
| Power Input | 802.3 at PoE+ Type 2 (30w ) | |
| Voltage | 22 to 30 VAC & VDC, Class 2 LP 72W | |
| Surge Protection | 6 KV contact 8KV air | |
| Physical | ||
| Dimensions (RxHxW) | Ø8.03 x 13.74 in (Ø204 x 349 mm) | |
| Weight | 4 KG (8.8 lbs), 5.4 kg (11.9lbs) with pendant cap | |
| Housing Color | RAL 9003 - Signal White | |
| Operating Temperature | -14 F to +140°F (-10 C to +60 C) | |
| Storage Temperature | -40 °F to 149°F (-40°C to +65°C ) | |
| Humidity | Up to 95% RH Non-Condensing | |
| Vandal Resistant | IK10 | |
| Analogue out | 2 pin analog video out service port | |
| Regulatory | ||
| Emissions | FCC Part 15 Class A; CE EN55032 Class A; AS/NZS CISPR 32 Class A; ICES-003/NMB-003 Class A | |
| Immunity | EN50130-4; EN61000-6-1 | |
| Safety | UL60950-1 /UL62368/UL60950-22; IEC 60950-1/62368/60950-22; CSA 22.2 No. 60950/62368; CE: EN60950-1 / EN62368 / EN60950-22; UL 50 (Type 4X); EN60529 (IP66/67) | |
| Environment | RoHS; REACH; WEEE | |
| NDAA | Yes | |
