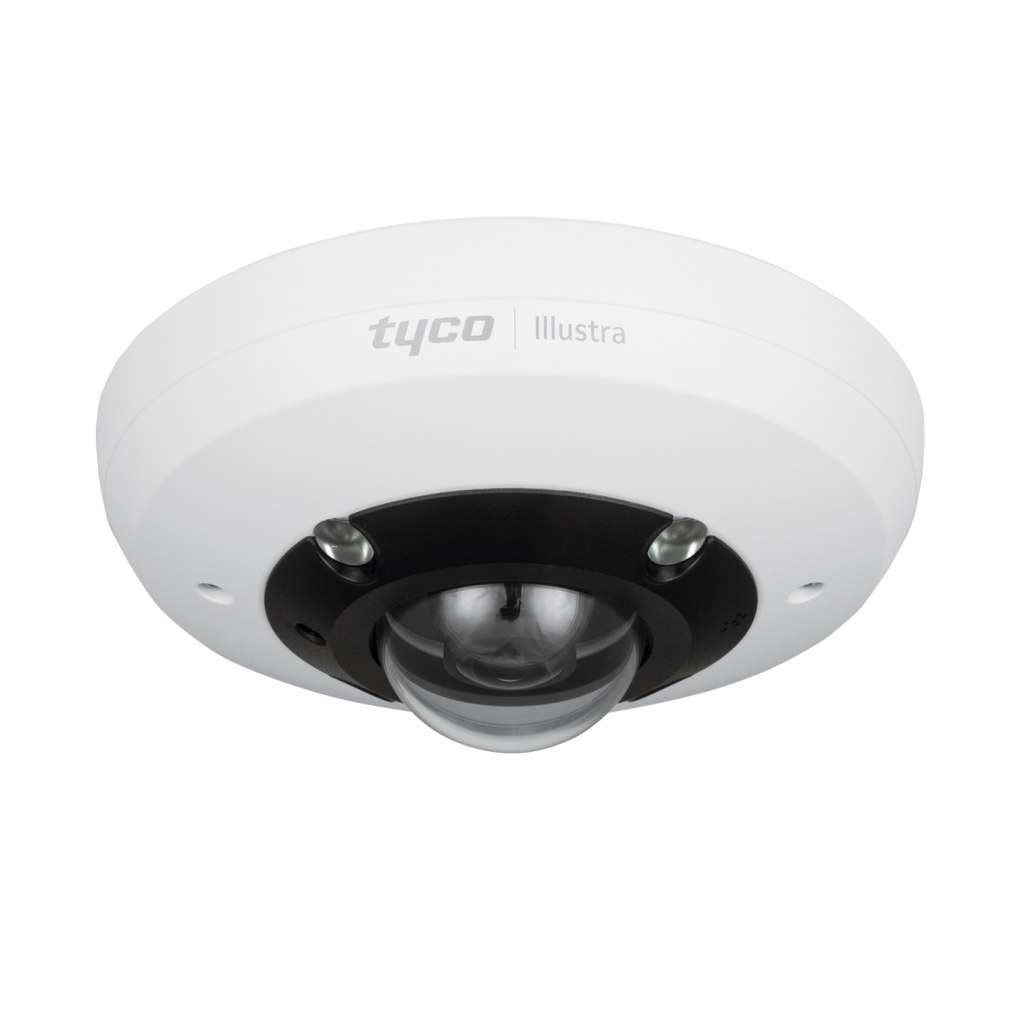

ExacqVision - IPS12-F27-OI02 - Illustra Pro Gen2 12MP Fisheye, 1.5mm, Outdoor, Vandal, Clear, White, IR, WDR
The 12MP Fisheye Camera captures an ultra-wide field of view looking in all directions in real-time and produces single or multiple fixed views should forensic investigations be required. The camera’s superior ePTZ creates even transitions between pan, tilt, and zoom movements.
Part number:
IPS12-F27-OI02
Price:
- 180°/360° ceiling or wall mount panoramic views of wide areas
- 12MP imager for super high quality images; 9MP FE / 4MP dewarped
- 360°/180° panoramic views
- Single or multiple fixed views for forensic investigations
- Onboard dewarping for distortion-free images
- IR illumination up to 15m
- ePTZ capabilities for ultra-smooth transition between pan, tilt, and zoom
- Onboard SD card recording and storage
- Sleek, discreet design
- Quick and easy installation
- IP66 rated
- IK10 rated
- ONVIF profile S, G, and Q
- As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
| Camera Features | Pro Gen 2 12MP Fisheye |
| Corridor Mode | N/A |
| Day/Night | TDN |
| Environment Rating | Indoor & Outdoor |
| Field of View | 180° (diagonal), 165° (horizontal, vertical) |
| Focal Length | 1.55 mm |
| H.264 | Yes |
| H.265 | No |
| Housing Color | White |
| Imager | 1/1.7” 12MP CMOS progressive scan |
| IntelliZip | No |
| IR Distance | Up to 15m |
| Lens Type | Fixed |
| Max Frame Rate | 15ips @ 12MP, 20ips @ 1080p |
| MJPEG | Yes |
| Motion Detection | Yes |
| Onboard Storage | Micro SDXC 64GB |
| ONVIF Compliant | ONVIF profile S, G, and Q |
| Outdoor Rating | IP66 |
| Power Input | PoE IEEE 802.af |
| Resolution Options | 9MP (2992x2992), 4MP (2048x2048), 4MP (2688x1512), 3MP, 2MP (1408X1408), 2MP (1920x1080), 1.5MP (1664x936), 1MP (1280x720), (1024x576), (960x544), (640x360), (384x216), (480x360), (384x288) |
| Vandal-Resistant | IK10 |
| Video Streams | Multiple |
