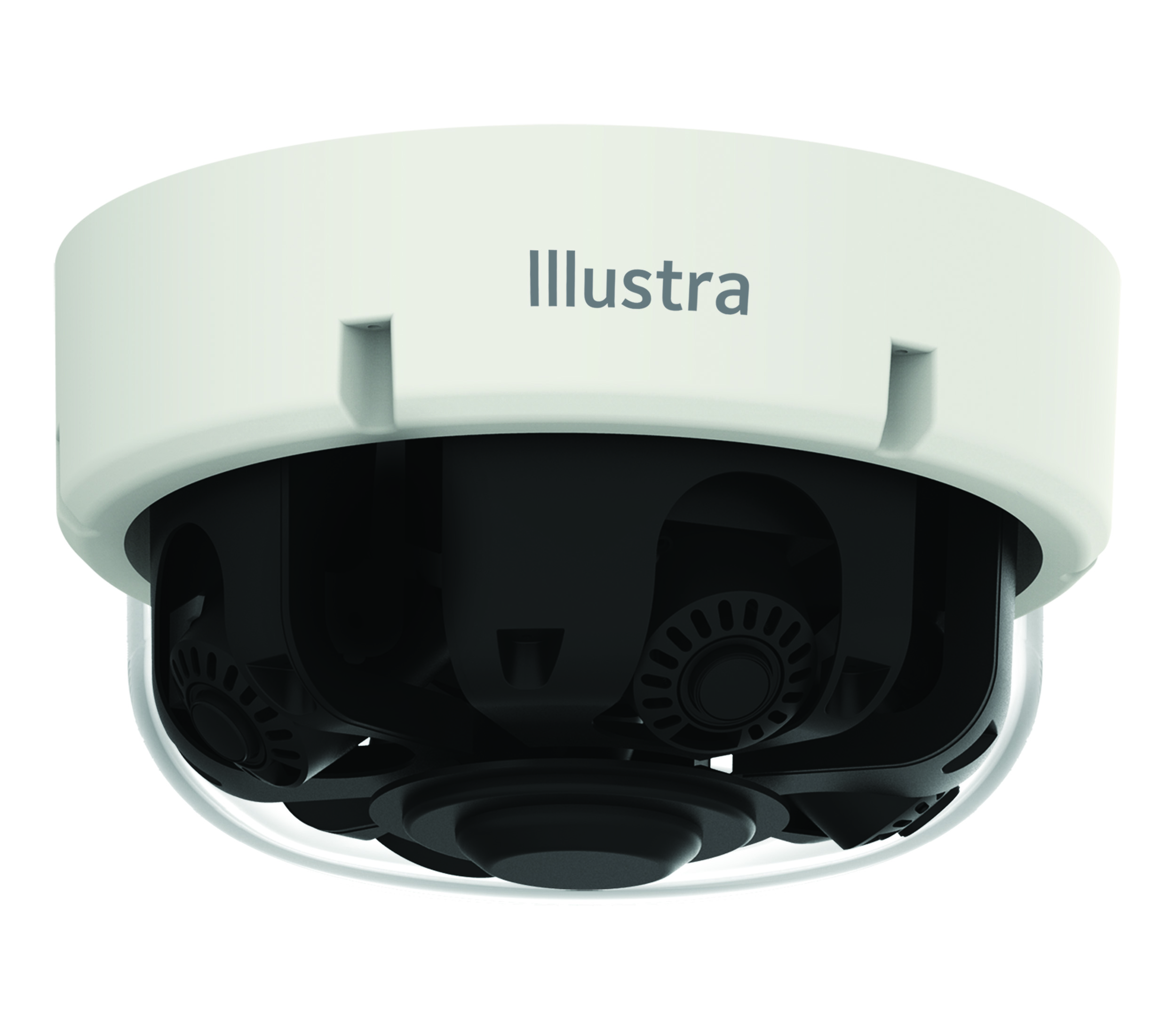

ExacqVision - IPS20-M12-OIA4 - Illustra Pro Gen4 20MP Multisensor, 2.7-13.5mm, AI, TDN w/IR, TWDR, IP66, IK10, SDXC
Part number:
IPS20-M12-OIA4
Price:
Change your view of camera surveillance. Four repositionable sensors cover you from every angle.
Features:
- 4 Cameras in one — 4 individually repositionable sensors with motorized varifocal lenses in a single camera
- High-quality images — available in 20MP and 32MP resolution plus superior WDR, defog and integrated 30m infrared vision
- Edge analytics — deep learning AI built into each of the four sensors for independent object classification, rules and alerts
- Designed for easy install — built-in hinge holds camera during install process
- Cost effective — 1 camera license and 1 network cable for connectivity to the video management system (VMS)
- Cyber secure — NDAA compliant, exceeds JCI security requirements
- 5 year warranty
| Camera Features | Pro Gen4 20MP & 32MP Motorized Multisensor |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, Queue |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2 input, 2 output |
| Day/Night | True Day/Night CF Removal |
| Dimensions | ø299mm x 169mm (ø11.8in x 6.7in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Environment Rating | RoHS; WEEE |
| Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Field of View | Field of View Wide (H/V): 103°/74° Field of View Telephoto (H/V): 33°/25° |
| Face Detection | Yes |
| Focal Length | 2.7-13.5mm |
| Focus Control | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | Signal White - RAL 9003 |
| Imager | Sony IMX335 1/2.8” CMOS image sensor |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| IR Distance | 98ft (30m) |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Aperture | f/1.4 (W), f/2.8 (T) |
| Max Frame Rate | 5MP @ 30fps, 2MP @ 60fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.11 Lux; B/W, 1/4s, 30 IRE, AGC: 0.06 Lux; W/IR: 0.0 Lux |
| MJPEG | Yes |
| Motion Detection | 3 per Sensor |
| Onboard Storage | Built-in Quad Micro SDXC slot up to 2TB per slot; Card not included |
| ONVIF Compliant | Profile S (Future release) |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F) |
| Outdoor Rating | IP66 |
| Power Input | Power over Ethernet (PoE) IEEE 802.3bt Type 4 Class 8; 24 VAC, Max Draw: PoE 71.3W, 24 VAC 71.3W |
| Privacy Zones | 8 Per Sensor |
| Resolution Options | 2560x1920 (5MP) 4:3 2560x1444 (4MP) 16:9 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 800x600 (SVGA) 4:3 816x464 156:9 640x360 (nHD) 16:9 480x360 4:3 480x272 16:9 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Simultaneous Users | 10 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Quad Streaming (per sensor) |
| Weight | 5.7Kg (12.6 lbs) |
