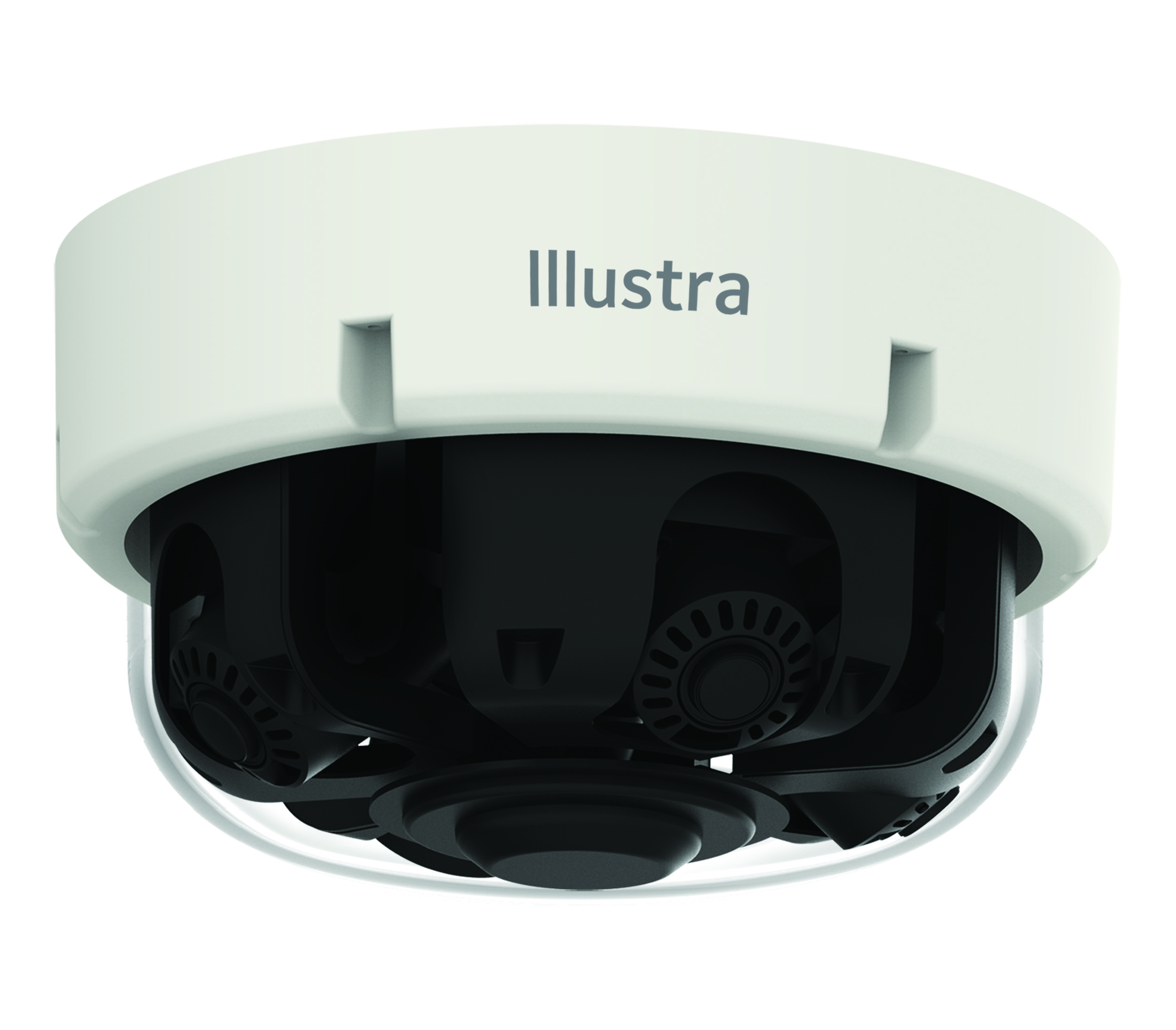

ExacqVision - IPS32-M13-OIA4 - Illustra Pro Gen4 32MP Multisensor, 3.6-11mm, AI, TDN w/IR, TWDR, IP66, IK10, SDXC
Part number:
IPS32-M13-OIA4
Price:
Change your view of camera surveillance. Four repositionable sensors cover you from every angle.
Features:
- 4 Cameras in one — 4 individually repositionable sensors with motorized varifocal lenses in a single camera
- High-quality images — available in 20MP and 32MP resolution plus superior WDR, defog and integrated 30m infrared vision
- Edge analytics — deep learning AI built into each of the four sensors for independent object classification, rules and alerts
- Designed for easy install — built-in hinge holds camera during install process
- Cost effective — 1 camera license and 1 network cable for connectivity to the video management system (VMS)
- Cyber secure — NDAA compliant, exceeds JCI security requirements
- 5 year warranty
| Camera Features | Flex Gen4 2MP, 4MP, 8MP Mini-Domes |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | Person, Bicycle, Bus, Car, Motorbike, Train, Truck |
| Day/Night | True Day/Night CF Removal |
| Dimensions | Ø123mm x 107mm (4.85 in x 4.21 in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Field of View | Field of View Wide (H/V): 95°/53° Field of View Telephoto (H/V): 49°/28° |
| Focal Length | 3.6-11mm |
| Focus Control | One Touch Auto-Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Imager | 1/1.8” Sony IMX334 CMOS |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 8MP @ 15fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.2 Lux; B/W, 1/4s, 30 IRE, AGC: 0.11 Lux; W/IR: 0.0 Lux |
| Motion Detection | 3 zones |
| ONVIF Compliant | Profiles S, G, M |
| Operating Temperature | Indoor: -10°C to +60°C; Outdoor: -50°C to +60°C |
| Outdoor Rating | IP66/IP67 |
| Power Draw | Indoor: PoE 4K=6.72, 2MP/4MP= 6.24w; 24 VAC 4K=7.9, 2MP/4MP= 7.6W Outdoor: PoE 4K=12.72, 2MP/4MP= 11.8w; 24 VAC 4K=13.2, 2MP/4MP= 12.9W |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC or 24 VDC |
| Privacy Zones | 8 |
| Resolution Options | 3840 x 2160 (4K) 16:9 3264 x 1840 (6MP)16:9 2688 x 1520 (4MP)16:9 1920 x 1080 (1080p) 16:9 1664 x 936 (HD+) 16:9 1280 x 720 (720p) 16:9 1024 x 576 (PAL+) 16:9 960 x 544 (qHD) 16:9 816 x 464 16:9 640 x 360 (nHD) 16:9 480 x 272 16:9 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Triple Streaming |
| Weight | 0.97KG (2.14 Ibs) |
