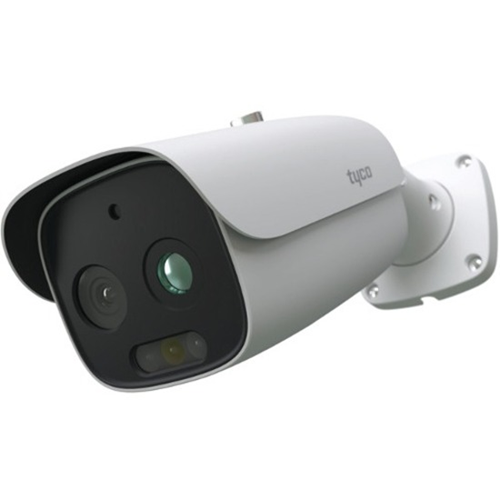

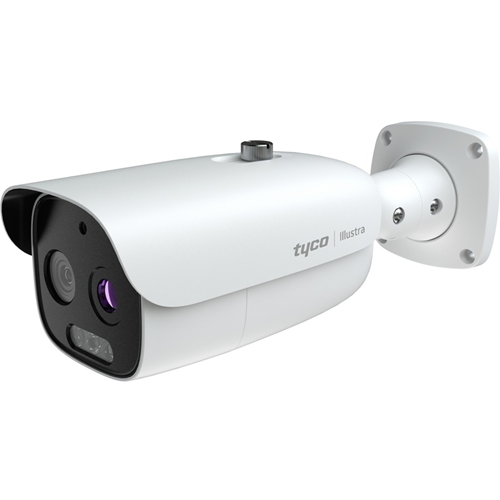

ExacqVision - IPT05-B29-BN203 - Illustra Pro Dual Imager Visible 8mm/Thermal 12mm EST Bullet, TDN with IR, with 240v ETRS device, Not available in the US
- • Dual Image Sensor with thermal detector
- • Up to 5MP resolution 2592 x 1944 with visible camera, 384 x 288 resolution with thermal camera
- • True day / night
- • Built in IR and white light illuminator
- • True WDR, up to 120dB
- • Smart facial temperature detection
- • Alarm trigger by temperature anomaly
- • High accuracy with blackbody calibration
- • Customizable sound-light alarm
- • 1-CH audio input; 1-CH built-in speaker
- • PoE or 12VDC powered
- • NDAA Compliant
Tyco Illustra Pro 5MP Thermal EST Camera Elevated Skin Temperature Scanning Solution
Johnson Controls smart elevated skin temperature scanning solution comprises of a dual sensor, one Thermal the other Color, camera and a temperature calibration device known as a Blackbody.
Using advanced face detection technology and in conjunction with the dual sensors, the camera will measure the temperature of a person’s forehead whilst the blackbody provides the constant temperature reference point. Should someone in the field of view be detected with a skin temperature above a predetermined level, an operator can be alerted to this fact through a variety of possible methods ranging from alerts in the VMS, events in a Access Control system, via a connected light/sounder to the camera, or even through a web browser connection.
The Tyco Illustra Pro Thermal EST Camera, being contactless and therefore non-invasive, is ideal for deployment at controlled entrances to areas and facilities where initial skin temperature measurement is needed for staff and visitors. With a ±0.2°C (±0.4°F) accuracy tolerance, in single person scanning mode, at an effective distance of 1 to 2 meters (3.3 to 6.6 feet), this elevated skin temperature scanning solution provides a high degree of flexibility to meet the individual situational awareness requirements of a wide variety of installations.
|
Dual imager camera |
|
|
Thermal camera |
|
|
Detector type |
Amorphous-silicon Bolometers |
|
Pixel pitch |
17µm |
|
Infrared spectral range |
8~14µm |
|
Effective pixels |
384 × 288 |
|
Noise equivalent temperature difference |
<50mK |
|
Thermal response time |
≈40ms |
|
Lens type |
Fixed |
|
Focal length |
12mm |
|
Field of view |
Horizontal 29.7°, Vertical 22.5° |
|
Visible camera |
|
|
Imager |
1 / 2.7" 5MP Progressive CMOS |
|
Effective pixels |
2592 x 1944 |
|
Minimum illumination |
Color 0.012 Lux @ F2.0 B/W 0.0012 Lux @ F2.0, 0 Lux with IR |
|
Shutter speed |
1/30 s ~ 1 / 10,0000 s |
|
S/N ratio |
≥52 dB |
|
Lens type |
Fixed |
|
Focal length |
8mm |
|
Field of view |
Horizontal 38°, Vertical 27.5° |
|
Video |
|
|
Video compression |
H.264 / H.265 / MJPEG |
|
H.264 Compression standard |
Base Line / Main Profile / High Profile |
|
H.265 Compression standard |
Main Profile @ Level 4.1 High Tier |
|
Resolution |
Visible 5MP (2592x1944), 4MP (2592×1520), 2560x1440, 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1 (720x576), 480x240, CIF (352x240) Thermal 704x576 (Upscaled from 384x288) |
|
Maximum frame rate |
Visible: 30 fps @ all resolution. Thermal: 30 fps @ 704x576 (Upscaled) |
|
Video bit rate |
64 Kbps ~ 5 Mbps |
|
Multiple streaming |
Triple stream |
|
Main stream |
Visible 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x720 Thermal 704x576 (Upscaled from 384x288) |
|
Second stream |
Visible 1280x720, 704x480, 352x240 |
|
Third stream |
Visible 704x576, 480x240, 352x288 |
|
Bitrate control |
VBR / CBR |
|
Quality control |
5 levels under VBR; Freely adjustable under CBR |
|
Image setting |
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR |
|
Audio |
|
|
Audio communication |
1-CH audio input; 1-CH built-in speaker |
|
Audio compression format |
G .711A, G.711U |
|
Audio bit rate |
128 Kbps |
|
Operational |
|
|
Day and night |
True Day/Night with Auto IR Cut Filter |
|
Backlight compensation |
BLC/HLC |
|
Wide dynamic range |
True WDR, 120dB |
|
Effective IR distance |
20 metres (65.6 feet) |
|
Digital noise reduction |
2D/3D DNR |
|
Digital zoom |
Yes |
|
Video privacy |
4 zones video mask |
|
Smart codec |
8 zones ROI |
|
Display mode |
Visible only, Picture-in-picture, Dual Window |
|
Intelligent video analytics |
Visible Camera Line crossing direction, Object Abandoned / Removed, Enter an area, Motion detection Thermal Camera Elevated Skin Temperature Detection |
|
Alarm triggers |
Alarm in, Intelligent video analytics, Network disconnect, SD card full, SD card error |
|
Backfilling |
iAPI3 |
|
Storage |
Built-in micro SD card slot; up to 128GB |
|
Temperature detection |
|
|
Detection mode |
Multiple point forehead skin temperature detection |
|
Effective distance |
Single person scanning mode: 1~2 meters, Multiple person (30 max) scanning mode 2~6 meters |
|
Temperature alarm |
Over temperature / Temperature anomaly |
|
Response time |
Less than 50ms |
|
Calibration |
Automatic calibration with blackbody |
|
Accuracy |
Single person scanning mode: ±0.2°C (±0.4°F) with blackbody calibration |
|
Network |
|
|
Network protocol |
TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
|
Cyber security |
HTTPS / IP Filter / IEEE 802.1X / Firewall / account security |
|
Online connection |
Support simultaneous monitoring for up to 10 users |
|
API |
ONVIF, iAPI3 |
|
Interface |
|
|
Network |
RJ45 |
|
Audio |
1-CH audio input; 1-CH built-in speaker |
|
Alarm |
Alarm in/out, Built-in sound-light alarm, Customizable voice alarm |
|
Environmental |
|
|
Operating temperature |
0°C ~ 35°C (32°F ~ 95°F) |
|
Operating humidity |
10% ~ 90% relative humidity |
|
General |
|
|
Power supply |
DC12V / PoE |
|
Power consumption |
<9W |
|
Dimensions (LxWxH) |
10.94 inches (278mm) x 3.78 inches (96mm) x 3.50 inches (89mm) |
|
Net weight |
2.6lbs, 1.2Kg |
|
Installation |
Wall mounting, Ceiling mounting, Tripod mounting |
|
Regulatory |
|
|
Safety |
IEC/EN 62368-1 |
|
Emissions |
FCC Part 15 Class A; EN 55032 Class A; ICES-003/NMB-003 Class A |
|
Immunity |
EN 55035; EN 50130-4 |
|
Environment |
RoHS, WEEE |
