- • Dual Image Sensor with thermal detector
- • Up to 5MP resolution 2592 x 1944 with visible camera, 384 x 288 resolution with thermal camera
- • True day / night
- • Built in IR and white light illuminator
- • True WDR, up to 120dB
- • Smart facial temperature detection
- • Alarm trigger by temperature anomaly
- • High accuracy with blackbody calibration to ±0.2°C (±0.4°F) in Single Face usage mode
- • Customizable sound-light alarm
- • 1-CH audio input; 1-CH built-in speaker
- • PoE or 12VDC powered
- • IP66 rating for outdoor application
- • NDAA Compliant

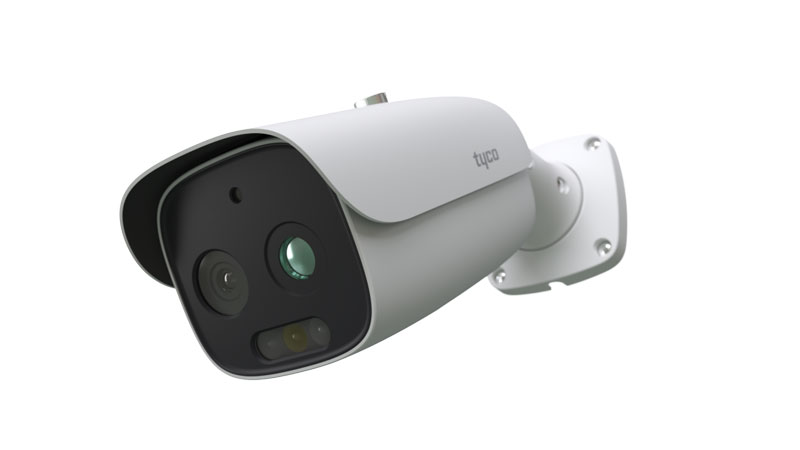

Tyco Illustra Pro 5MP Thermal EST Camera Elevated Skin Temperature Scanning Solution
Johnson Controls smart elevated skin temperature scanning solution comprises of a dual sensor, one Thermal the other Color, camera and a temperature calibration device known as a Blackbody.
Using advanced face detection technology and in conjunction with the dual sensors, the camera will measure the temperature of a person’s forehead whilst the blackbody provides the constant temperature reference point. Should someone in the field of view be detected with a skin temperature above a predetermined level, an operator can be alerted to this fact through a variety of possible methods ranging from alerts in the VMS, events in a Access Control system, via a connected light/sounder to the camera, or even through a web browser connection.
The International Electrotechnical Commision (IEC) standards for the basic safety and essential performance of screening thermographs for human febrile temperature screening are at the heart of the development of the Johnson Controls smart elevated skin temperature scanning solution, tested by UL for accuracy, drift, stability and uniformity of the IEC 80601-2-59:2017 standard. High accuracy brings with it the benefit of reducing false alarms to a minimum, which in turn results in fewer disruptions and increased flow of staff and visitors.
Complying with the U.S. Food & Drug Administration’s COVID-19 Enforcement Policy criteria released in April 2020, the The Tyco Illustra Pro Thermal EST Camera, being contactless and therefore non-invasive, is ideal for deployment at controlled entrances to areas and facilities where initial skin temperature measurement is needed for staff and visitors. With ±0.2°C (±0.4°F) accuracy tolerance at an effective distance of 1~2 meters (3.3~6.6 feet), this elevated skin temperature scanning solution provides a high degree of flexibility to meet the individual situational awareness requirements of a wide variety of installations.
|
Dual imager camera |
|
|
Thermal camera |
|
|
Detector type |
Amorphous-silicon Bolometers |
|
Pixel pitch |
17μm |
|
Infrared spectral range |
8~14μm |
|
Effective pixels |
384 × 288 |
|
Noise equivalent temperature difference |
<35mK |
|
Thermal response time |
≈40ms |
|
Lens type |
Fixed |
|
Focal length |
12mm @ F1.0 |
|
Field of view |
Horizontal 29.7°, Vertical 22.5° |
|
Visible camera |
|
|
Imager |
1 / 2.7" 5MP Progressive CMOS |
|
Effective pixels |
2592 x 1944 |
|
Minimum illumination |
Color 0.012 Lux @ F2.0 B/W 0.0012 Lux @ F2.0, 0 Lux with IR |
|
Shutter speed |
1/30 s ~ 1 / 10,0000 s |
|
S/N ratio |
≥52 dB |
|
Lens type |
Fixed |
|
Focal length |
8mm |
|
Field of view |
Horizontal 38°, Vertical 27.5° |
|
Lens mount |
M12 |
|
Video |
|
|
Video compression |
H.264 / H.265 / MJPEG |
|
H.264 Compression standard |
Base Line / Main Profile / High Profile |
|
H.265 Compression standard |
Main Profile @ Level 4.1 High Tier |
|
Resolution |
Visible 5MP (2592x1944), 4MP (2592×1520), 2560x1440, 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1 (720x576), 480x240, CIF (352x240) Thermal 704x576 (Upscaled from 384x288) |
|
Maximum frame rate |
Visible: 30 fps @ all resolution. Thermal: 30 fps @ 704x576 (Upscaled) |
|
Video bit rate |
64 Kbps ~ 5 Mbps |
|
Multiple streaming |
Triple stream |
|
Main stream |
Visible 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x720 Thermal 704x576 (Upscaled from 384x288) |
|
Second stream |
Visible 1280x720, 704x480, 352x240 |
|
Third stream |
Visible 704x576, 480x240, 352x288 |
|
Bitrate control |
VBR / CBR |
|
Quality control |
5 levels under VBR; Freely adjustable under CBR |
|
Image setting |
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR |
|
Audio |
|
|
Audio communication |
1-CH audio input; 1-CH built-in speaker |
|
Audio compression format |
G .711A, G.711U |
|
Audio bit rate |
128 Kbps |
|
Operational |
|
|
Day and night |
True Day/Night with Auto IR Cut Filter |
|
Backlight compensation |
BLC/HLC |
|
Wide dynamic range |
True WDR, 120dB |
|
Effective ir distance |
20 metres (65.6 feet) |
|
Digital noise reduction |
2D/3D DNR |
|
Digital zoom |
Yes |
|
Video privacy |
4 zones video mask |
|
Smart codec |
8 zones ROI |
|
Display mode |
Visible only, Picture-in-picture, Dual Window |
|
Intelligent video analytics |
Visible Camera Line crossing direction, Object Abandoned / Removed, Enter an area, Motion detection Thermal Camera Elevated Skin Temperature Detection |
|
Alarm triggers |
Alarm in, Intelligent video analytics, Network disconnect, SD card full, SD card error |
|
Backfilling |
iAPI3 |
|
Temperature detection |
|
|
Detection mode |
Multiple point forehead skin temperature detection |
|
Detection preset |
Single Face (in accordance with IEC standards) * |
|
Effective distance |
1~2M (3.3 ~ 6.6 feet) in Single Face usage mode |
|
Temperature alarm |
Over temperature / Temperature anomaly |
|
Response time |
Less than 50ms |
|
Calibration |
Automatic calibration with blackbody |
|
Accuracy |
±0.2°C (±0.4°F) in Single Face usage mode with blackbody calibration |
|
Network |
|
|
Network protocol |
TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, Unicast, Multicast |
|
Cyber security |
HTTPS / IP Filter / IEEE 802.1X / Firewall / account security |
|
Online connection |
Support simultaneous monitoring for up to 10 users |
|
API |
ONVIF, iAPI3 |
|
Interface |
|
|
Network |
RJ45 |
|
Audio |
1-CH audio input; 1-CH built-in speaker |
|
Alarm |
Alarm in/out, Built-in sound-light alarm, Customizable voice alarm |
|
Hardware reset |
Supported |
|
Environmental |
|
|
Operating temperature |
0°C ~ 35°C (32°F ~ 95°F) |
|
Operating humidity |
10% ~ 90% relative humidity |
|
Ingress protection |
IP66 |
|
General |
|
|
Power supply |
DC12V / PoE |
|
Power consumption |
<9W |
|
Dimensions (LxWxH) |
10.94 inches (278mm) x 3.78 inches (96mm) x 3.50 inches (89mm) |
|
Net weight |
2.6lbs, 1.2Kg |
|
Installation |
Wall mounting, Ceiling mounting, Tripod mounting |
|
Certification |
Certification testing is pending for major markets, including North America and the European Union. |
