Increase Situational Awareness, Efficiency, and Improve Response Time

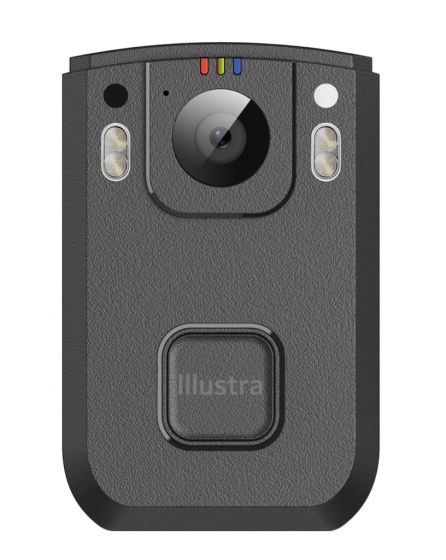

The Illustra Body Worn Camera is a rugged camera that expands any video system beyond fixed cameras and provides better situational awareness, helps manage behavior and is essential to complete coverage. Illustra Body Worn Camera is fully integrated with American Dynamics and Exacq video management systems, offering an expansive and seamless experience. Kiosk functionality is available in the video management system as well as a standalone web application. The body worn camera is designed to withstand harsh environmental conditions and long shifts. It features an intuitive design, streams GPS location data, high quality video and audio over Wi-Fi or cellular connection1 while minimizing bandwidth to as low as 9 Kbps.
Industry Use Cases
The Illustra Body Worn Camera provides positive impact across a range of industries including healthcare, retail, utilities, education, private security, commercial markets, delivery services and public transport. A sampling of use cases is below. Additional use cases can be found in the Illustra Body Worn Camera brochure and white paper at www.Illustracameras.com
Features:
- 12 hours continuous HD recording
- Video and Audio Live streaming over cellular and Wi-Fi1
- Data rates as low as 9 Kbps over cellular connections1
- Fully encrpted end-to-end government grade security and backed by the Johnson Controls Cyber Solutions Program.
- Fully integrated with American Dynamics and Exacq VMS
| General | |
| Display | 2.0 inch IPS touch screen (360x480) |
| Memory | 64 GB |
| Microphone | Dual microphones with noise reduction |
| USB | USB-C. For connection to an external camera. Can also be used for charging |
| Button Functions | 3 fully configurable buttons |
| Feedback | Status LED’s, sounds and vibration |
| Wireless Transmission | |
2G/3G/4G Network Bands (Rest of World Variant) | 4 G LTE: B1, B3, B5, B7, B8, B20, B28A, B28B, B38, B39, B40, B 41 3 G UMTS: B1,B 8 2 G GSM: 850, 900, 1800, 1900 |
2G/3G/4G Network Bands (North America variant) | 4 G LTE: B2, B4, B5, B7, B12, B13, B14, B17, B38, B39, B40, B 41 3 G UMTS: B2, B4, B 5 2 G GSM: 850, 900, 1800, 1900 |
| SIM card | 1 x Nano SIM |
| Wi-Fi | Wi-Fi, 802.11b/g/n/ac, 2.4GHz/5GHz bands. Security: WPA2-PSK |
| GPS Position | GPS, GALILEO & GLONASS |
| Bluetooth3 | Bluetooth LE 5.0 Allows supported external sensors to be used to activate recording |
| Photo | |
| White Balance | Auto |
| Sensor | 1 /3” progressive scan RGB CMOS |
| Low Light Capability | 1.0 Lux Infra-red night vision Visible distance: 33 feet (10 meters) Facial features identifiable: 16 feet (5 meters) |
| Field of View | 120 ° |
| Video | |
| Video Recording Time | Up to 12 hours4 |
| Image Resolution | 1080 p up to 30 frames per second |
| Video Streaming | Up to 1080p over mobile network or WiFi. Integrated Illustra Mobile Video Manager video transmission with end-to-end AES-256 bit encryption 5 |
| Video Record | 480 p, 720p or 1080p |
| Pre/Post-Record | Up to 2 minutes |
| Video Format | Secure recording format with built-in AES-256 encryption and fragile watermarking5 |
| OSD Language | English |
| Mechanical | |
| Charging Method | Wire-free docking (docking station required). Or charging with USB-C DC 5V. Fast charging in 3 hours |
| Operating Temperature | -4 °F to +122°F (-20°C to +50°C ) |
| Charging Temperature | 32 °F to 77°F (0°C to +25°C ) |
| Weight | 0.44 lb (200g ) |
| Dimensions (L x W x H) | 3.93in x 2.56in x 0.98in (100mm x 65mm x 25mm) |
| Operation/UI | |
| Battery | 4400 mAh Lithium polymer battery (4.35V), replaceable |
| Ingress Protection | IP67 + MIL-STD-810G |
| Drop Test | 6.5 feet (2 meters ) |
| Regulatory | |
| Compatibility | FCC Registered, CE: RED Directive, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 301 489-19, EN 301 489-52, EN 55032, EN 55035 |
| Spectrum | CE: EN 300 328, EN 300 893, EN 300 440, EN 300 413, EN 301511, EN 301 908-1 EN 301 908-2. EN 301 908-13 |
| Safety | UKCA, CE, EN 62368-1, EN 62209-2, EN 50566, EN 62479 |
| Environment | RoHS, REACH, WEEE |
| Other | UN-3481, EN60529 (IP 67) |
