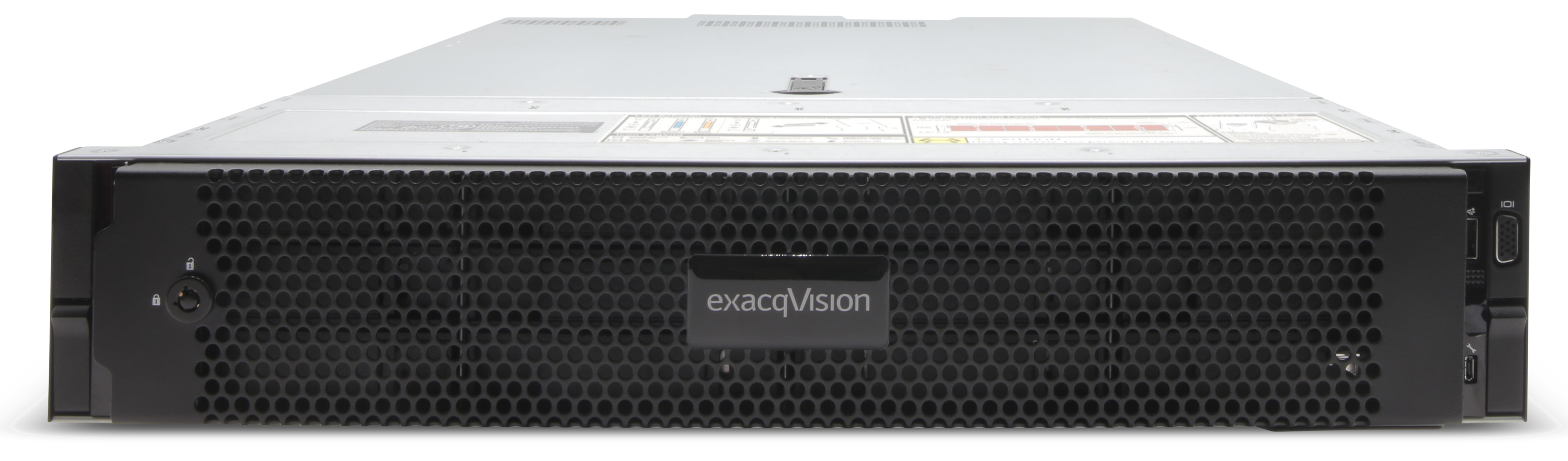

ExacqVision - S-288T-R2SL - Rackmount 2U Extended Storage Server 1,200Mbps
Part number:
Price:
- • 288TB Configured Storage (240TB usable in RAID 6)
- • 2U Rackmount Chassis with 12 Front-Load Hot-Swappable Drive Bays
- • Linux Ubuntu 22.04 LTS OS (on high-end dual SSD RAID 1 boot drives)
- • 32GB RAM (Optimized for massive data throughput and RAID management)
- • 1,200 Mbps Archiving / 800 Mbps Extended Storage rate
- • Enterprise-grade components: Intel Xeon Gold Processor and Dual Redundant 750W Platinum PSUs
- • 5-Year Warranty and 5-Year Software Subscription Agreement (SSA)
| Archiving – | |
| Maximum Video Recorders | 64 |
| Maximum Data Rate | 1200Mbps |
| Server | |
| Enterprise Storage Management Software | Included |
| Operating System | Ubuntu Linux 22.04 |
| Storage Capacity | 288TB |
| Maximum Hard Drives | 12 |
| RAID | RAID 6 |
| NIC | 2 x 1Gbps, 2 x 10Gbps (SFP) |
| CPU | Xeon |
| Ports | Front: (1) Micro-AB USB/(1) x USB 2.0/(1) x VGA Rear: (1) USB 2.0/(1) Serial/(1) USB 3.0/(1) VGA/(1) IDRAC |
| RAM | 2 x 8GB (16GB) |
| General | |
| Dimensions (D x W x H) | D: 721.62 mm (28.4 in) with bezel W: 482.0 mm (18.97 in) H: 86.8 mm (3.41 in) |
| Power | 800W Platinum Power Supply Mixed Mode 100-240 VAC or 240 VDC hot swap redundant |
| Weight | 35.45kg (78.012 lbs) |
| Operating Temperature | 40°F - 95°F (4.5°C - 35°C) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15, ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) NDAA, TAA |
| Warranty | 5-Year NBD (Next Business Day) |
Name
Description
Size
Downloads
File
Specsheet
1.7mb
File
Brochure
0.4mb
File
A&E Specification
0mb
File
Quick Start Guide
0.1mb
