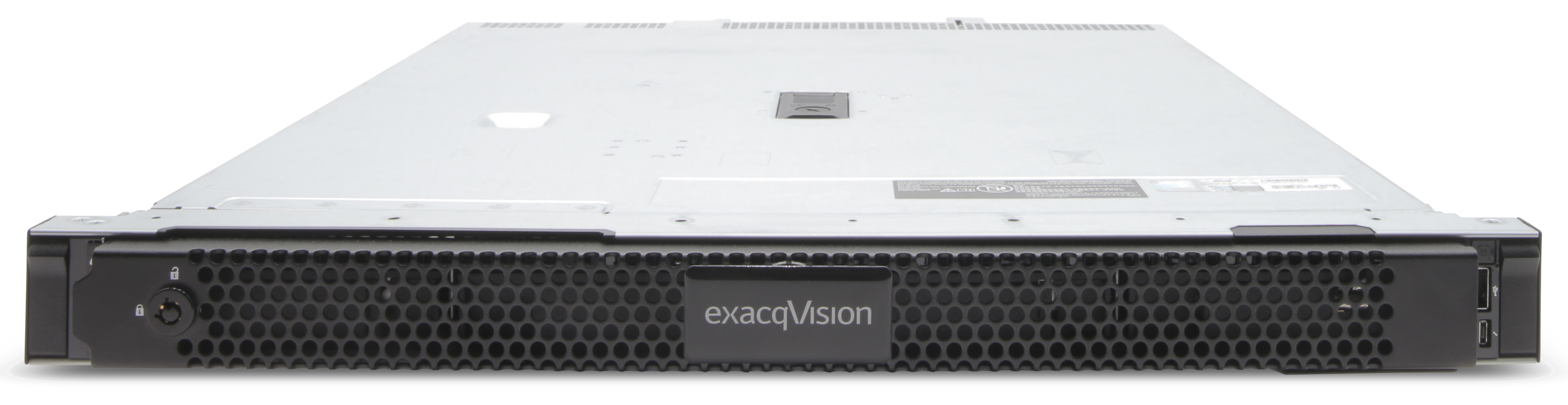

ExacqVision - S-64T-R1SL - Rackmount 1U Extended Storage Server, 700Mbps
Part number:
Price:
- • 64TB Configured Storage (48TB usable in RAID 5)
- • 1U Rackmount Chassis with 4 Hot-Swappable Drive Bays
- • Linux Ubuntu 22.04 LTS OS (Typically on a dedicated SSD or RAID 1 BOSS module)
- • 16GB RAM (Dual 8GB sticks)
- • 700 Mbps Archiving / 700 Mbps Extended Storage throughput
- • Enterprise-grade components: Intel Xeon Processor and Redundant Power Supplies
- • 5-Year Warranty and 5-Year Software Subscription Agreement (SSA)
| Archiving | |
| Maximum Video Recorders | 32 |
| Maximum Data Rate | 700Mbps |
| Server | |
| Enterprise Storage Management Software | Included |
| Operating System | Ubuntu Linux 22.04 |
| Storage Capacity | 64TB |
| Maximum Hard Drives | 4 |
| RAID | RAID 5 |
| NIC | 2 x 1Gbps, 2 x 10Gbps (RJ45) |
| CPU | Xeon |
| Ports | Front: (1) Micro-AB USB/ (1) x USB 2.0 Rear: (1) USB 2.0/(1) USB 3.0/(1) Serial/(1) VGA/(1) IDRAC |
| RAM | 2 x 8GB (16GB) |
| General | |
| Dimensions (D x W x H) | D: 598.94 mm (23.58 in) with bezel W: 482 mm (18.98 in) H: 42.8 mm (1.69 in) |
| Power | 600W Platinum Power Supply Mix Mode 100-240 VAC or 240 VDC hot swap redundant |
| Weight | 24.33kg (53.636 lbs) |
| Operating Temperature | 40°F - 95°F (4.5°C - 35°C) |
| Regulatory | Safety: UL (UL/IEC/EN62368-1) EMC: Class A emissions (FCC part 15, ICES-003; EN55032; CISPR32, EN61000-3-2, 3-3) Security immunity (EN55035) Environmental: RoHS (EN50581) NDAA, TAA |
| Warranty | 5-Year NBD (Next Business Day) |
Name
Description
Size
Downloads
File
Specsheet
1.7mb
File
Brochure
0.4mb
File
A&E Specification
0mb
File
Quick Start Guide
0.1mb
